ABB AC 800M

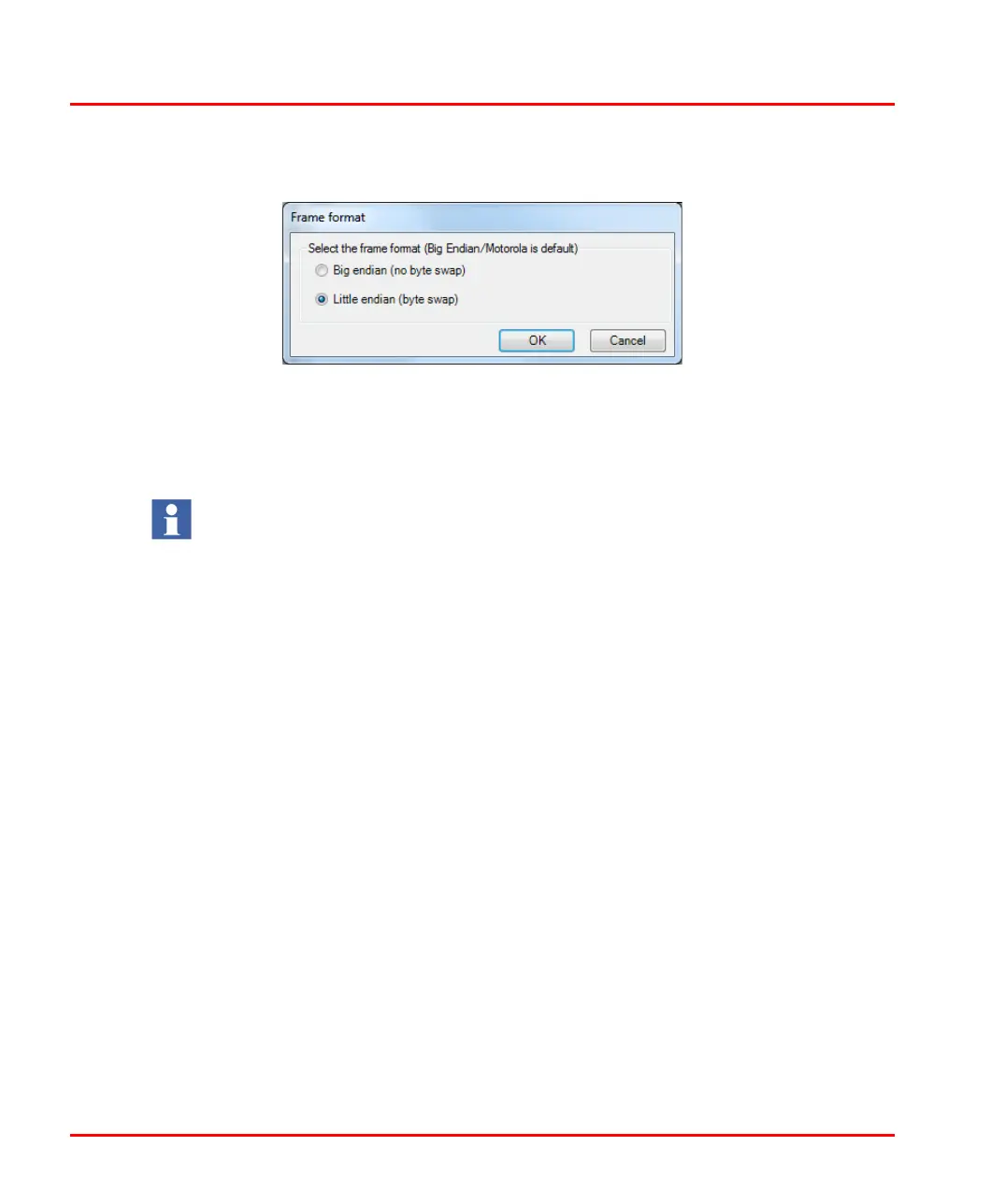

Figure 36. Frame format dialog box
I/O Settings Section 3 Device Import Wizard
88 9ARD000014-600 A
In the Frame format dialog box, specify the byte swap parameters. Select
Big endian or Little endian and click OK to
save the details.
CI873 is a big-endian system. While Allen Bradley PLC is a little-endian system.
So before mapping the bytes to the channels, ensure that all the channels are
made to little-endian.
e. Click Customize tab in the I/O Settings window, configured channels
detail are displayed.
f. Click Add W
rite Tag tab to add new write tag to the Class 3 connection.
You can add three Write tags at a time.
