Section 3 Device Import Wizard I/O Settings
9ARD000014-600 A 89
Advanced configuration for multiple channels.
Select multiple channels by clicking the channels or using keyboard shortcut
Ctrl + A. Right click and in the menu there will be an option 'Advanced
configurations'.
Irrespective of the type of the channels selected
the 'Advanced configuration'
will show the 3 options to set - status bits, range parameter and frame format.
The selected settings will be applied to all the selected channels based on the
channel type.

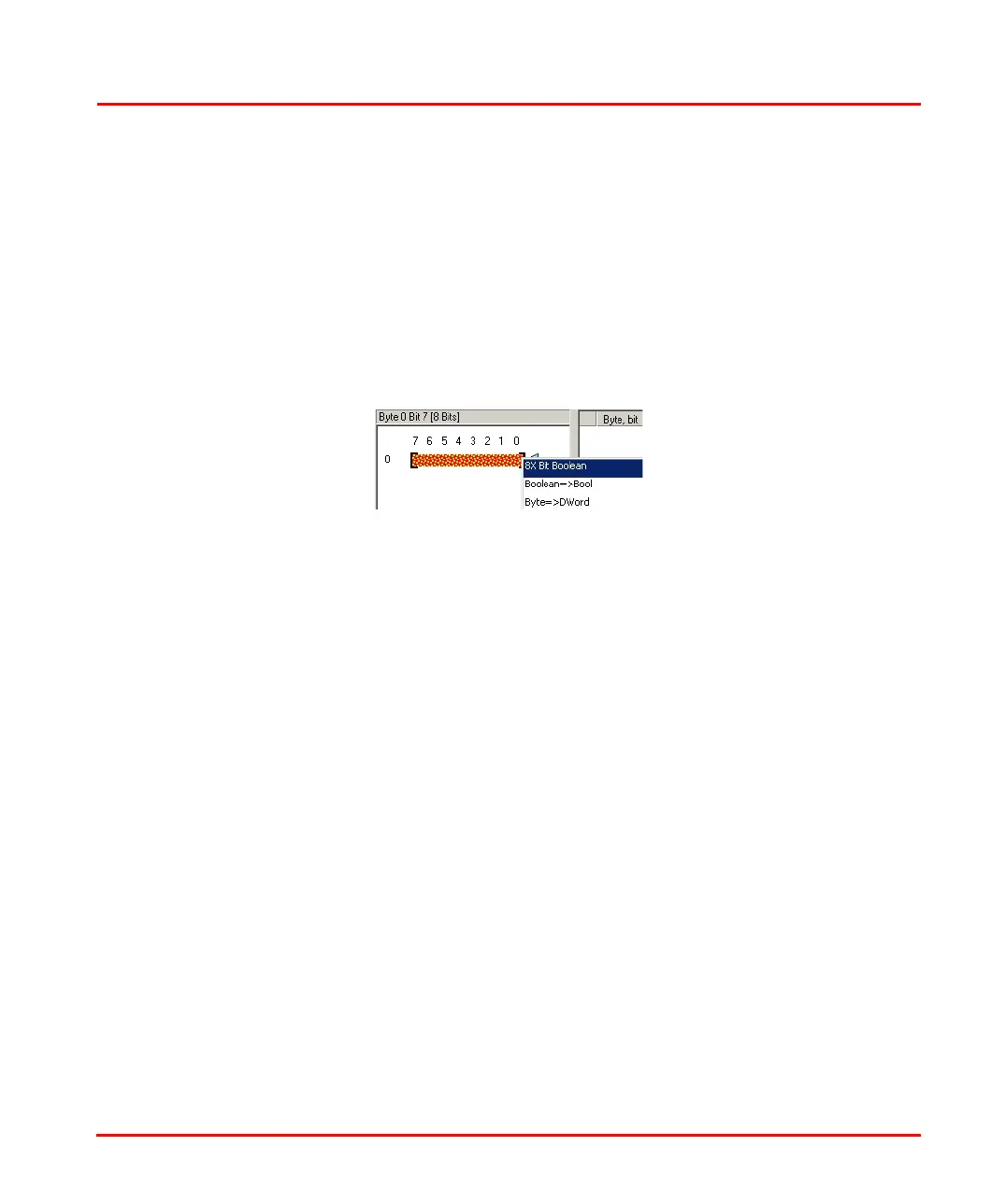

Figure 37. Advanced Configuration
If the user selects one channel and clicks on Advanced configuration menu,
only the settings applicable to the selected channel will be shown.
User will be allowed to copy/paste using k
eyboard shortcuts Ctrl + C, Ctrl + V.
Copied channels will be added to the end of the available channels. If there is
no available space in the I/O area to add the channels a message will be shown
to the user. If there is some available space, then channels which fit into the
space will be added.
Copy paste channel names from excel to the channe
l names column is allowed.
Copy the channel names from excel. Select the channel name for which the
modification needs to be done and paste using Ctrl + V.
