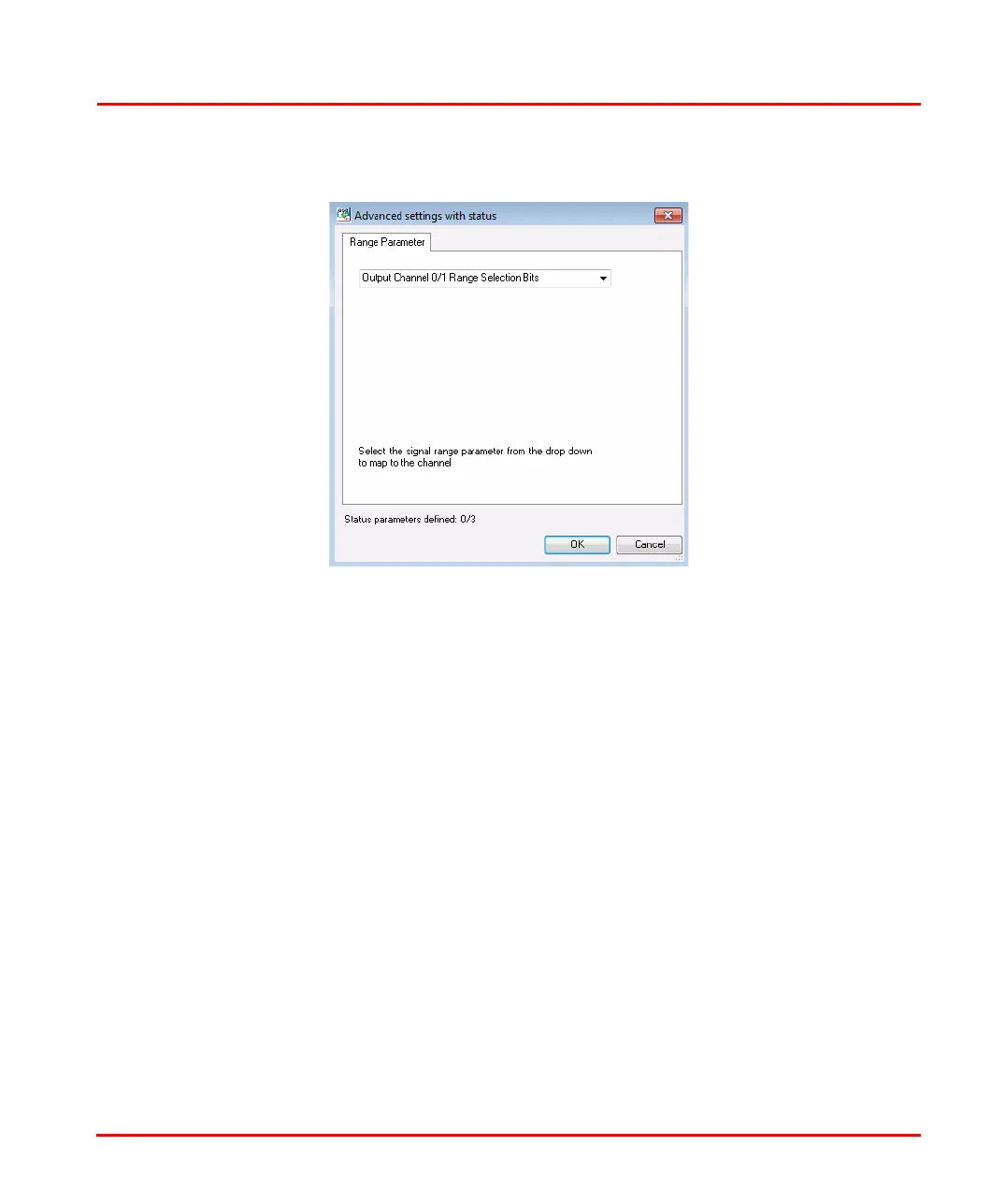

Figure 44. Advanced Settings for an Analog Output channel
Section 3 Device Import Wizard I/O Settings
9ARD000014-600 A 97
Scaling for DeviceNet Devices
Scaling is handled in the following ways for DeviceNet devices:
• For each of the trigger type that is supp
orted by the device, the assembly being
referenced in the input/output area is scanned for the presence of scaling
parameter.
• The information of the scanned parameter is then used as the scaling parameter
for all
the channels that are created from that particular assembly.
• The scaling is done for both the input and output channels.
