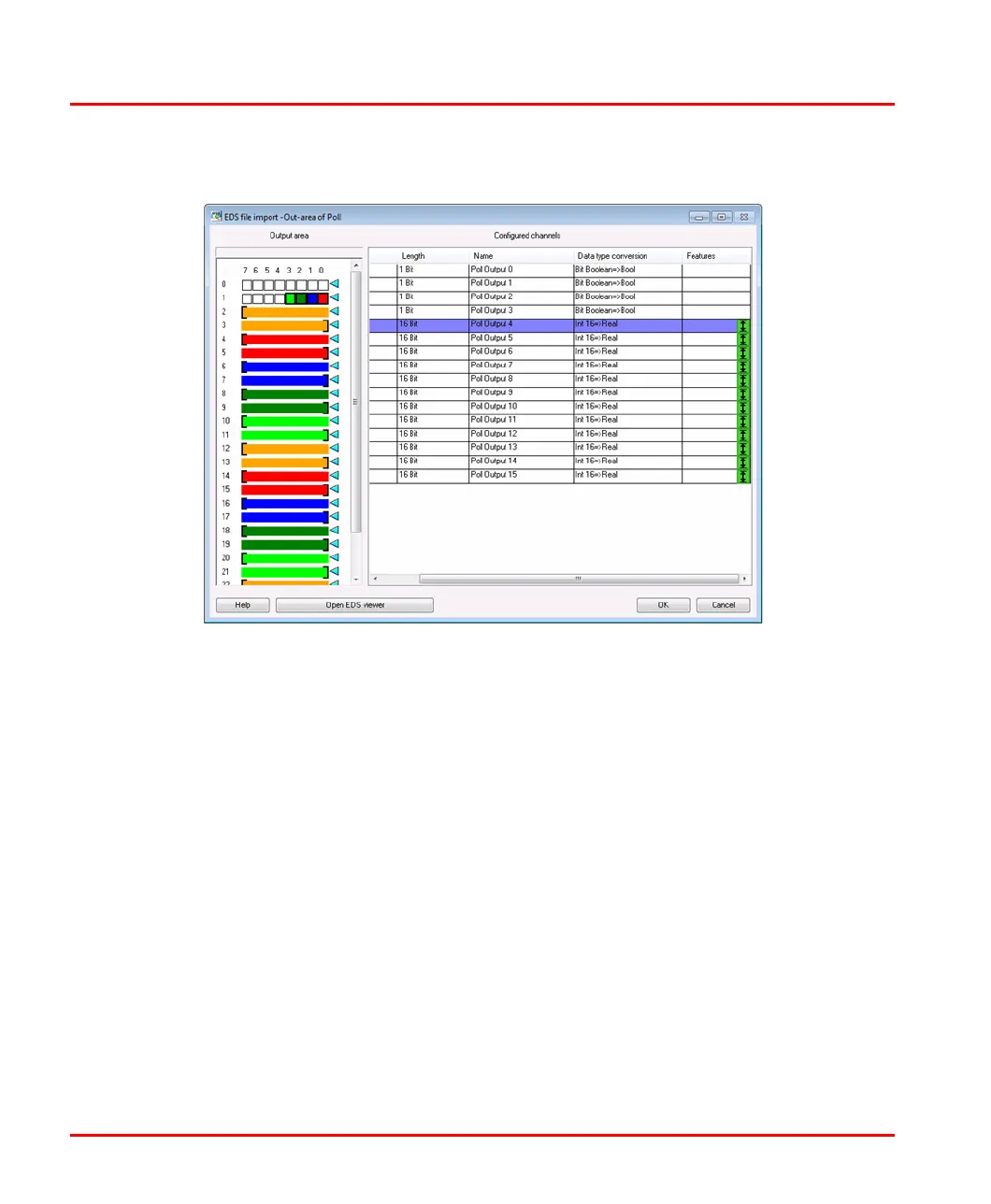

Figure 43. Output Area Configuration for Poll trigger type
(Analog Output Channels - Modular I/O Import)
I/O Settings Section 3 Device Import Wizard
96 9ARD000014-600 A
From the Output Area Configuration screen, double-click the Features or Data
type conversion column to bring up the Advanced Settings window, as shown in
Figure 44.
The Output Area Configuration’s Advanced Settings window supports only Signal
Range Parameter selection. There is no support for Status for output channels. For
details on specifying the Signal Range Parameters for a channel, refer Specifying
Status and Signal Range Parameters for Channels on page 98.
