Parameters 187
EFB ref2 03.10 EFB reference 2 (see page 111). 9
Motor potentiometer 22.80 Motor potentiometer ref act (output of the motor
potentiometer).
15
PID 40.01 Process PID output actual (output of the process
PID controller).
16
Frequency input 1 11.38 Freq in 1 actual value (when DI3 or DI4 is used as a
frequency input).
17

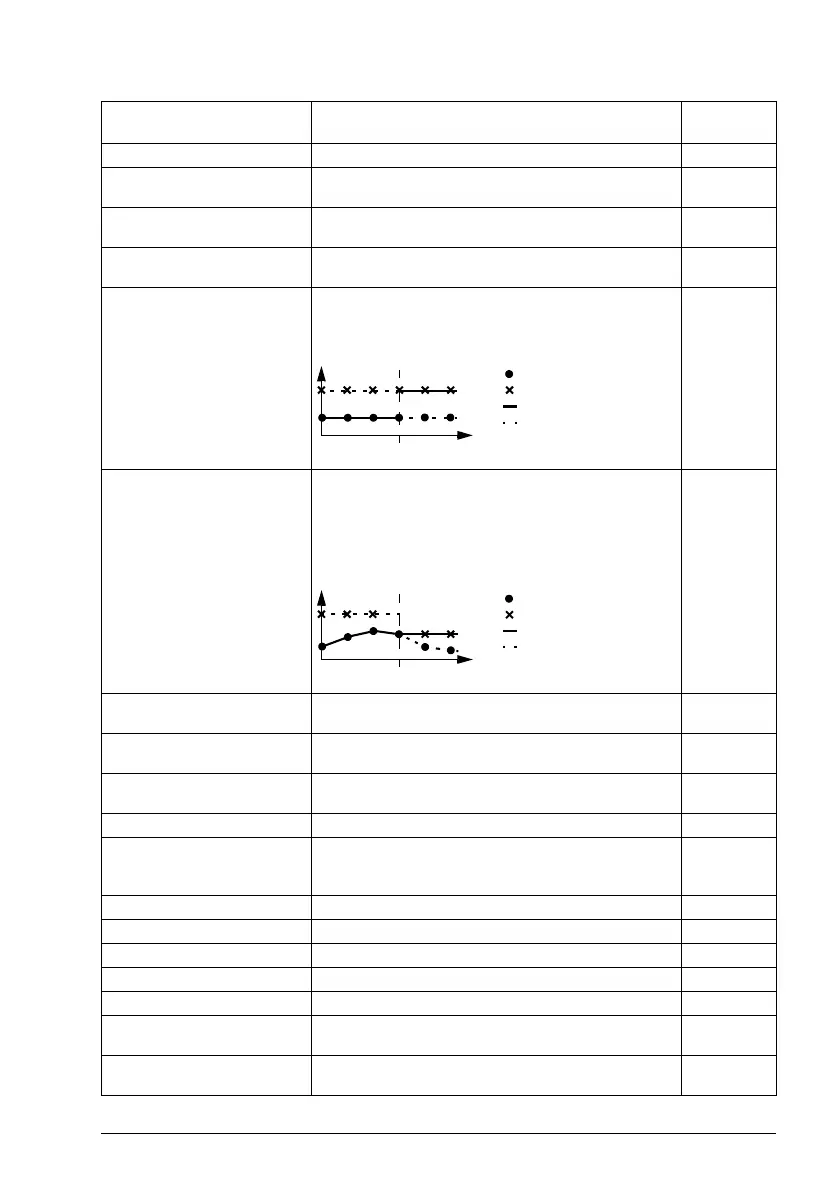

Control panel (ref
saved)
Panel reference (03.01 Panel reference, see page 111)
saved by the control system for the location where the
control returns is used as the reference.
18
Control panel (ref
copied)
Panel reference (03.01 Panel reference, see page 111) for
the previous control location is used as the reference
when the control location changes if the references for the
two locations are of the same type (eg
frequency/speed/torque/PID); otherwise, the actual signal
is used as the new reference.
19
Integrated panel (ref
saved)
See above Control panel (ref saved). 20
Integrated panel (ref
copied)
See above Control panel (ref copied). 21
Frequency input 2 11.46 Freq in 2 actual value (when DI3 or DI4 is used as a
frequency input).
22
Other Source selection (see Terms and abbreviations). -
28.12 Ext1 frequency ref2 Selects Ext1 frequency reference source 2.
For the diagram of reference source selection, see
parameter 28.11 Ext1 frequency ref1.
Zero
Zero None. 0
AI1 scaled 12.12 AI1 scaled value (see page 132). 1
AI2 scaled 12.22 AI2 scaled value (see page 134). 2
EFB ref1 03.09 EFB reference 1 (see page
111). 8
EFB ref2 03.10 EFB reference 2 (see page 111). 9
Motor potentiometer 22.80 Motor potentiometer ref act (output of the motor
potentiometer).
15
PID 40.01 Process PID output actual (output of the process
PID controller).
16
No. Name/Value Description Default
FbEq 16
Ext1 -> Ext2
t
Reference
Ext1 reference
Ext2 reference
Active reference
Inactive reference
Ext1 -> Ext2
Ext1 reference
Ext2 reference
Active reference
t
Inactive reference
Reference
