ABB ACS310 User Manual

Actual signals and parameters 191
1403 RELAY
OUTPUT 3
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL relay output extension module is connected to
the drive.
NOT SEL
1404 RO 1 ON
DELAY
Defines the operation delay for relay output RO 1. 0.0 s

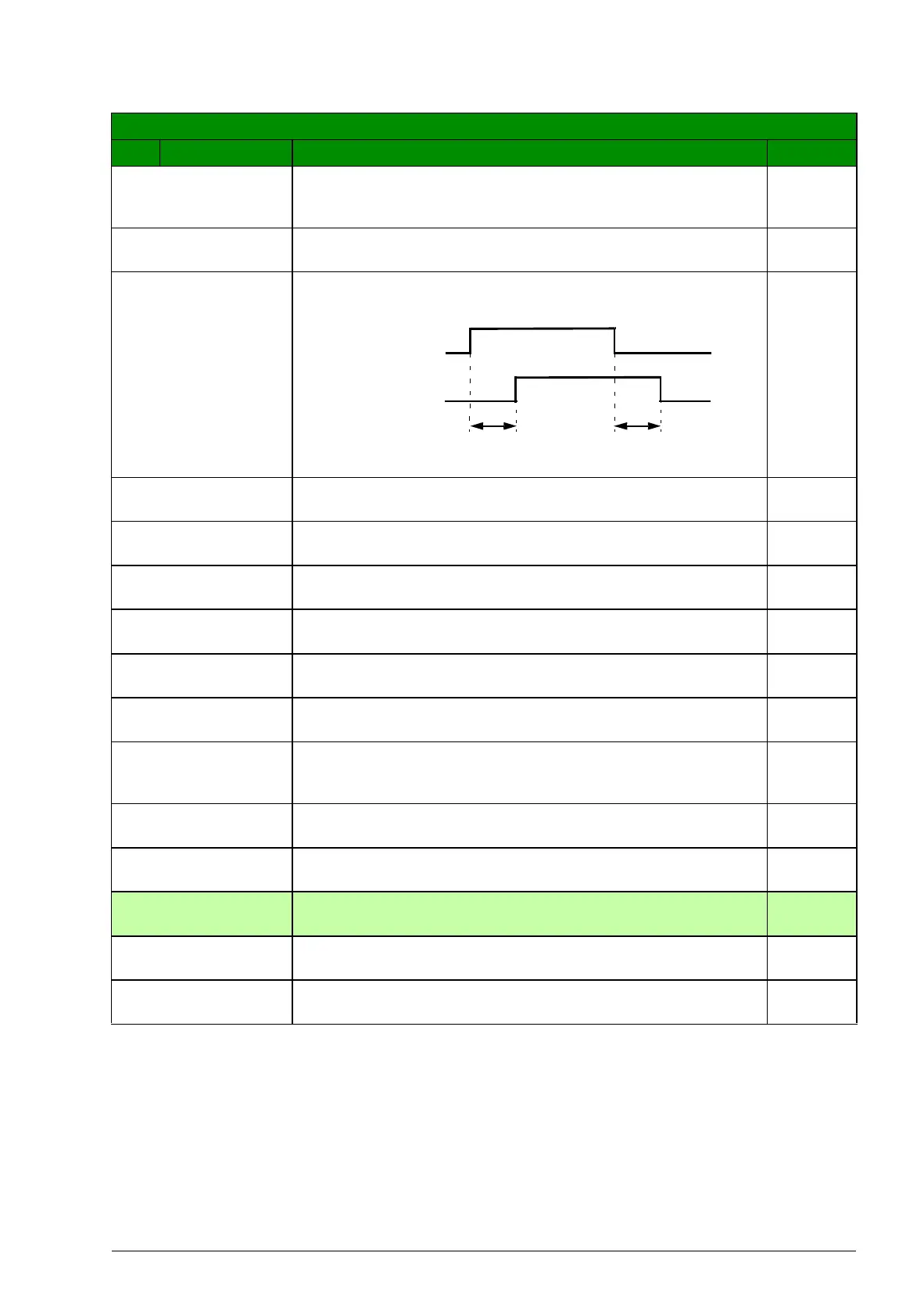

0.0…3600.0 s Delay time. The figure below illustrates the operation (on)
and release (off) delays for relay output RO.
1 = 0.1 s
1405 RO 1 OFF
DELAY
Defines the release delay for relay output RO 1. 0.0 s
0.0…3600.0 s Delay time. See the figure for parameter 1404 RO 1 ON
DELAY.
1 = 0.1 s
1406 RO 2 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1407 RO 2 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1408 RO 3 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1409 RO 3 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1410 RELAY
OUTPUT 4
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL relay output extension module is connected to
the drive.
NOT SEL
1413 RO 4 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1414 RO 4 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
15 ANALOG
OUTPUTS
Selection of the actual signals to be indicated through
analog output and output signal processing.
1501 AO1
CONTENT SEL
Connects a drive signal to analog output AO. 103
x…x Parameter index in group 01 OPERATING DATA. Eg 102 =
0102 SPEED.
All parameters
No. Name/Value Description Def/FbEq
Control event
Relay status
1404 On delay 1405 Off delay
