Mechanical installation 31
Unpacking

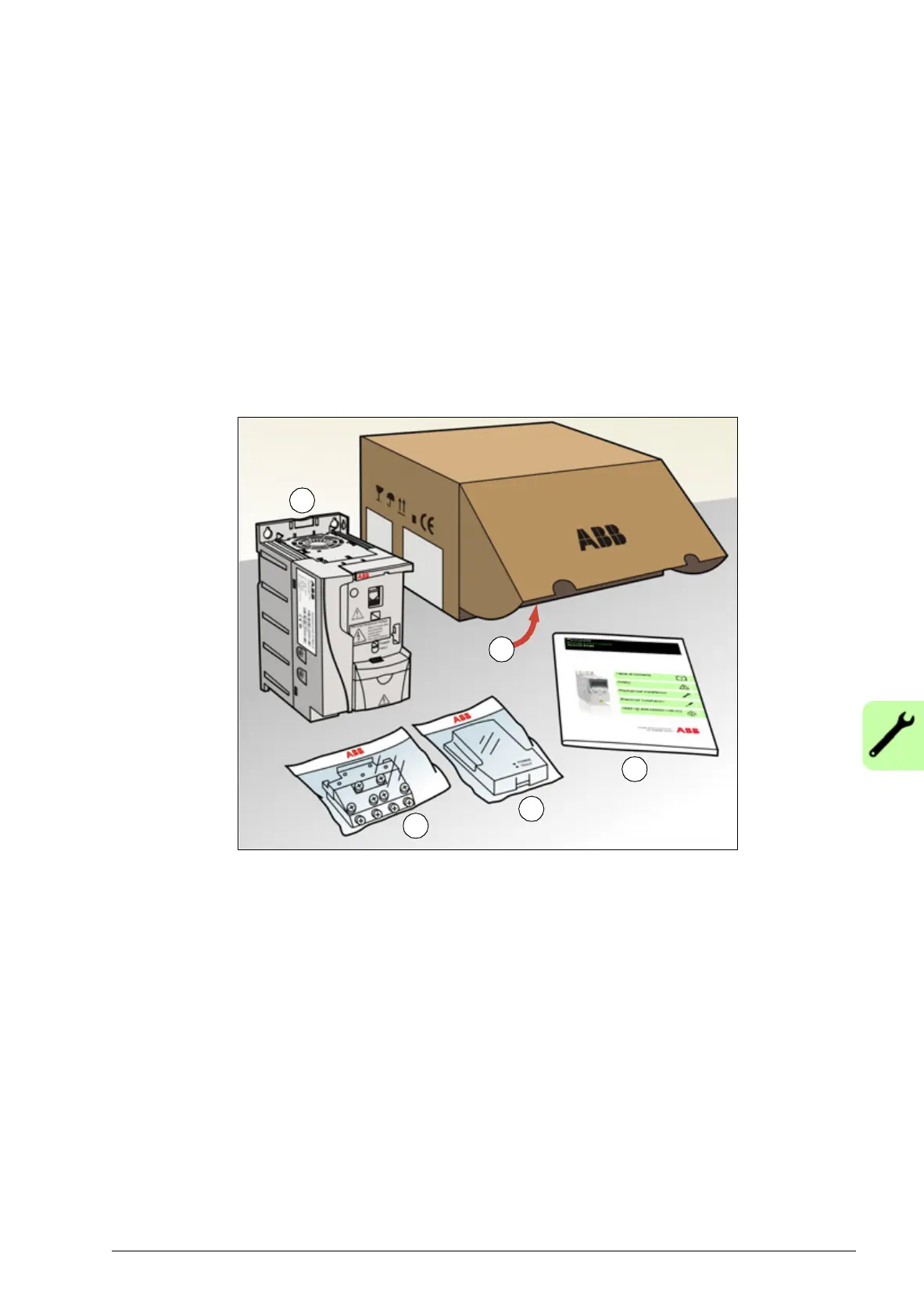

The drive (1) is delivered in a package that also contains the following items (frame
size R2 shown in the figure):
• plastic bag (2) including clamping plate (also used for I/O cables in frame sizes
R3 and R4), I/O clamping plate (for frame sizes R0…R2), clamps and screws
• panel cover (3)
• mounting template, integrated into the package (4)
• short form user’s manual (5)
• possible options (Basic control panel, Assistant control panel or complete User’s
Manual).
Checking the delivery
Check that there are no signs of damage. Notify the shipper immediately if damaged
components are found.
Before attempting installation and operation, check the information on the type
designation label of the drive to verify that the drive is of the correct type. See section
Type designation label on page 26.
