Actual signals and parameters 213
DI4(INV) See selection DI1(INV).-4
DI5(INV) See selection DI1(INV).-5
1607 PARAM SAVE Saves the valid parameter values to the permanent
memory.
Note: A new parameter value of a standard macro is saved
automatically when changed from the panel but not when
altered through a fieldbus connection.
DONE
DONE Saving completed 0
SAVE… Saving in progress 1
1608 START
ENABLE 1
Selects the source for the Start enable 1 signal.
Note: Functionality of the Start enable signal is different
from the Run enable signal.
Example: External damper control application using Start
enable and Run enable. Motor can start only after the
damper is fully open.
NOT SEL
NOT SEL Start enable signal is on. 0
DI1 External signal required through digital input DI1. 1 = Start
enable. If the Start enable signal is switched off, the drive
will not start or it coasts to stop if it is running and alarm
START ENABLE 1 MISSING (2021) is activated.
The drive can also ramp to stop depending on parameter
2102 STOP FUNCTION.
1
All parameters
No. Name/Value Description Def/FbEq
Drive started
Start enable
signals
(1608 and 1609)
Started
output status
(group 14)

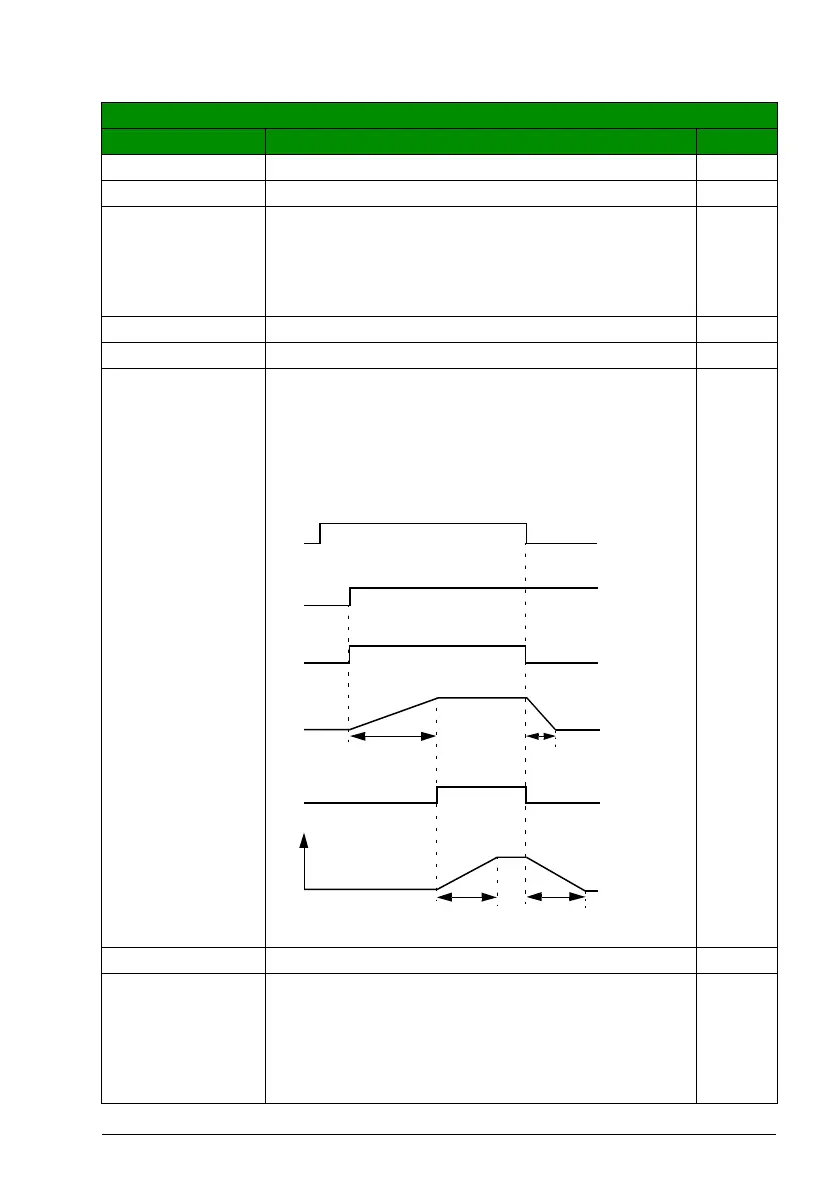

Damper
opening
time
Damper
closed
Damper
closing
time
Damper
status
Relay energized
Damper open
Relay
de-
energized
Damper
closed
Motor
status
Run enable signal
from the damper end
switch when the
damper is fully
opened. (1601)
Acceleration
time (2202)
Deceleration
time (2203)
Motor
speed
Start/Stop
command
(group 10)
