120 Parameters
Ext2 active Bit 11 of 06.16 Drive status word 1.23
Remote control Bit 9 of 06.11 Main status word.24
MCB External charging has charged the drive. 25
Timed function 1 Bit 0 of 34.01 Timed functions status.27
Timed function 2 Bit 1 of 34.01 Timed functions status.28
Timed function 3 Bit 2 of 34.01 Timed functions status.29
Reserved Bit 3 of 34.01 Timed functions status.30
Reserved Bit 4 of 34.01 Timed functions status.31
Reserved Bit 5 of 34.01 Timed functions status.32
Supervision 1 Bit 0 of 32.01 Supervision status.33
Supervision 2 Bit 1 of 32.01 Supervision status.34
Supervision 3 Bit 2 of 32.01 Supervision status.35
Start delay Bit 13 of 06.17 Drive status word 2.39
RO/DIO control word
bit0
Bit 0 of 10.99 RO/DIO control word.40
RO/DIO control word
bit1
Bit 1 of 10.99 RO/DIO control word.41
RO/DIO control word
bit2
Bit 2 of 10.99 RO/DIO control word.42
Other [bit] Source selection (see Terms and abbreviations). -

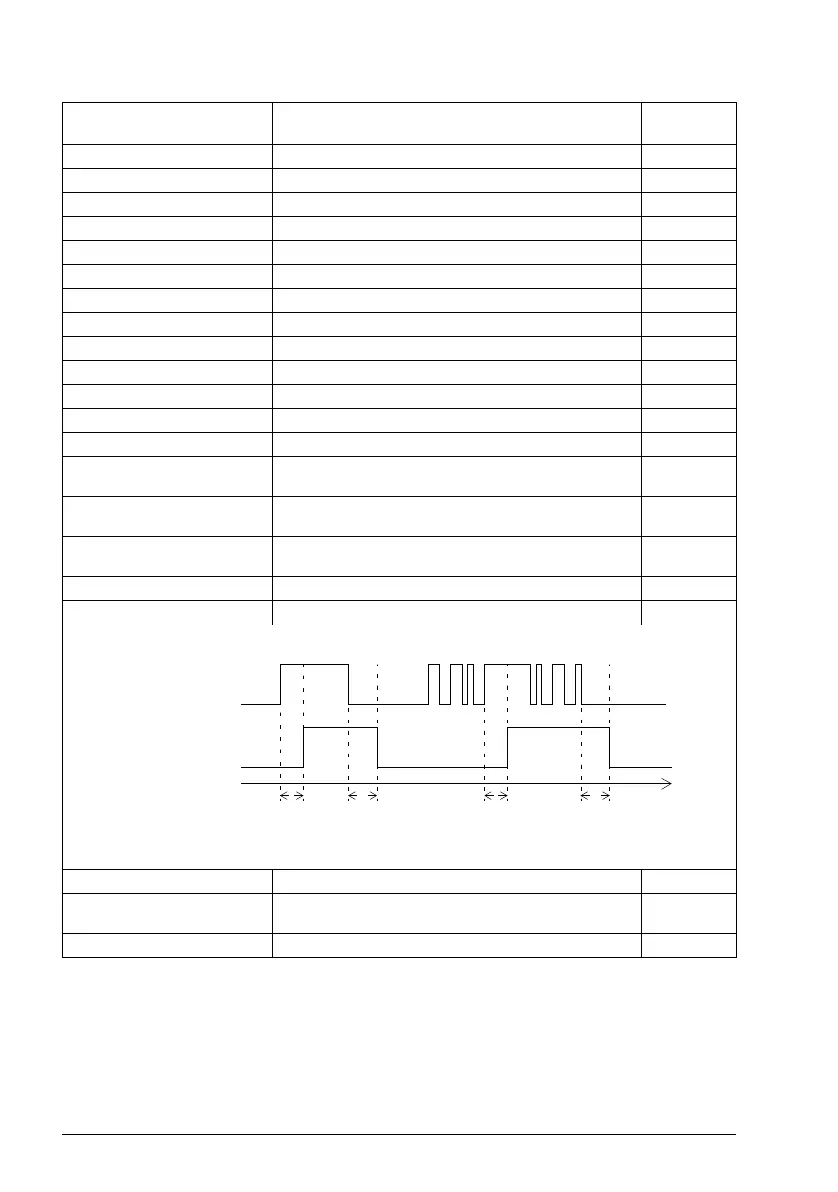

10.25 RO1 ON delay Defines the activation delay for relay output RO1. 0.0 -
t
On
= 10.25 RO1 ON delay
t
Off
= 10.26 RO1 OFF delay
0.0 … 3000.0 s Activation delay for RO1. 10 = 1 -
10.26 RO1 OFF delay Defines the deactivation delay for relay output RO1. See
parameter 10.25 RO1 ON delay.
0.0 -
0.0 … 3000.0 s Deactivation delay for RO1. 10 = 1 -
No. Name/Value Description Default
FbEq 16
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
RO status
Time
