20 Control panel
Submenus
The Main menu items have submenus. Some submenus also have menus and/or option lists.
The content of the submenus depend on the drive type.

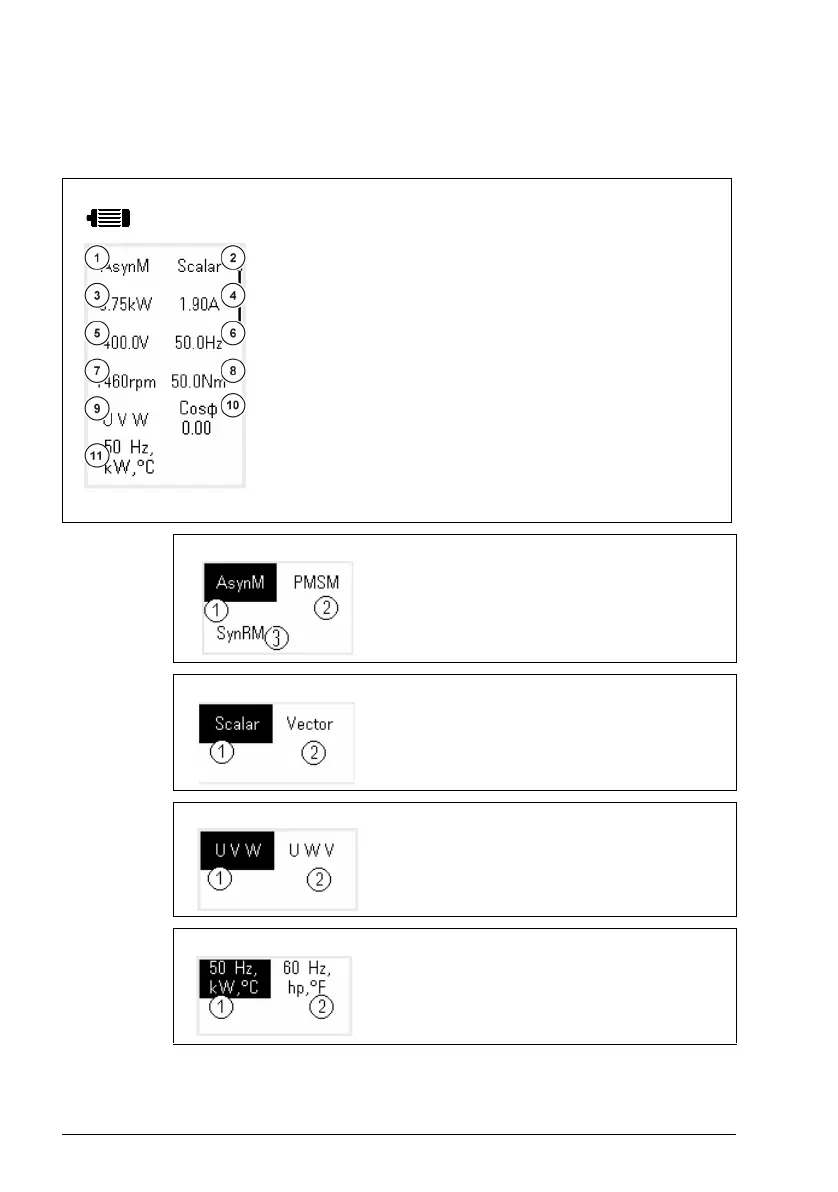

Motor Data
1. Motor type - AsynM, PMSM, SynRM
2. Control mode - Scalar, Vector
3. Nominal power
4. Nominal current
5. Nominal voltage
6. Nominal frequency
7. Nominal speed
8. Nominal torque
9. Phase order - U V W, U W V
10.Nominal Cosphi
11.Unit selection - SI or US units
Motor Data: Motor type
1. AsynM
2. PMSM
3. SynRM
Motor Data: Control mode
1. Scalar
2. Vector
Motor Data: Phase order
1. U V W
2. U W V
Motor Data: Unit selection
1. SI units
2. US units
