ABB ACS850 - Page 161

Parameters 161
SpRef ramped 03.05 SpeedRef ramped (see page 114). 1073742597
SpRef used 03.06 SpeedRef used (see page 114). 1073742598
TorqRef used 03.14 Torq ref used (see page 115). 1073742606
Process act 04.03 Process act (see page 115). 1073742851
Proc PID out 04.05 Process PID out (see page 115). 1073742853
Pointer Value pointer setting (see Terms and abbreviations on page
102).
-
15.20 AO4 filt time Defines the filtering time constant for analogue output AO4.
See parameter 15.02 AO1 filt time.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
15.21 AO4 out max Defines the maximum output value for analogue output AO4.
0.000 … 22.700 mA Maximum AO4 output value. 1000 = 1 mA
15.22 AO4 out min Defines the minimum output value for analogue output AO4.
0.000 … 22.700 mA Minimum AO4 output value. 1000 = 1 mA

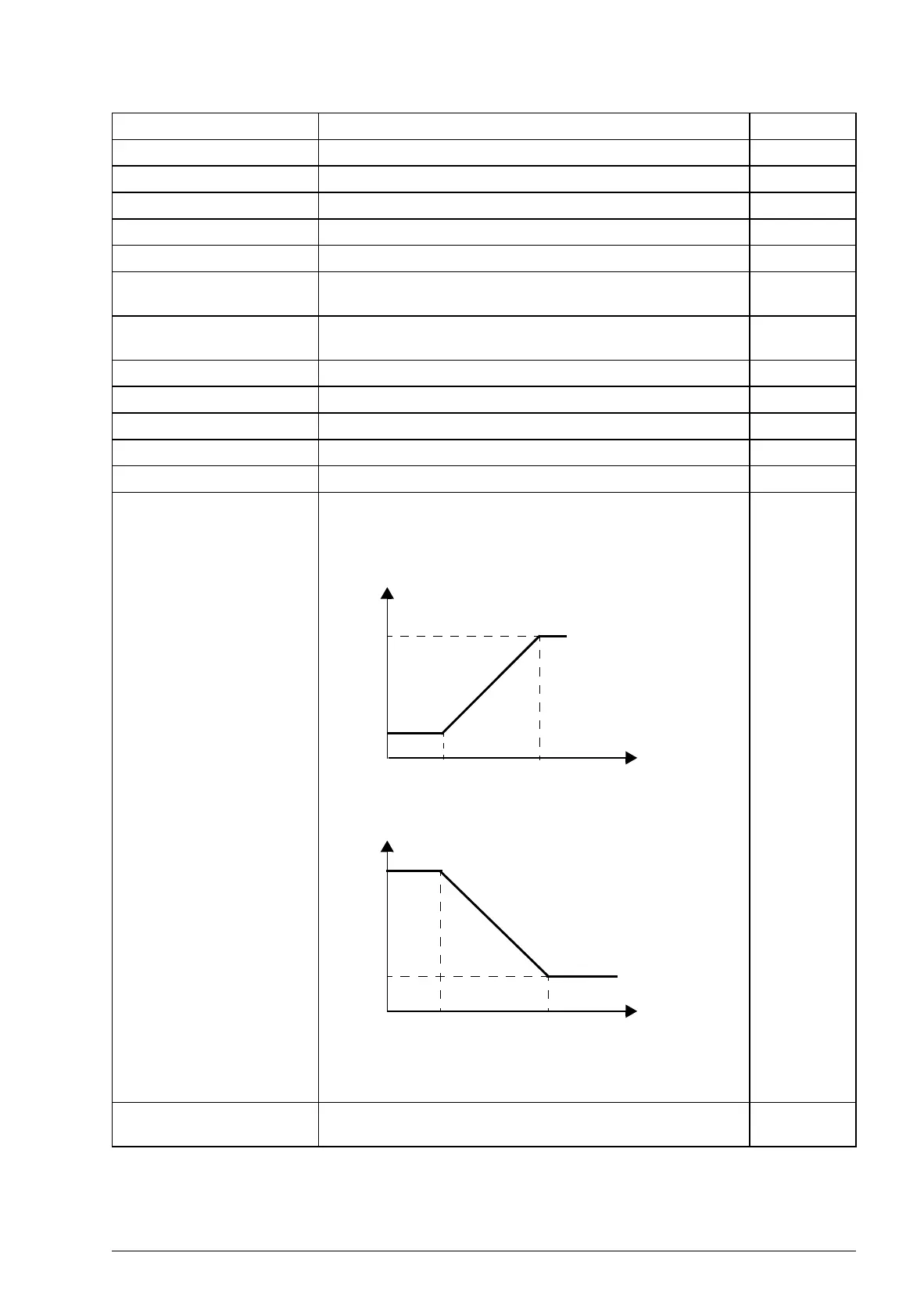

15.23 AO4 src max Defines the real value of the signal (selected by parameter
15.19 AO4 src) that corresponds to the maximum AO4 output
value (defined by parameter 15.21 AO4 out max).
-32768.000 …
32768.000
Real signal value corresponding to maximum AO4 output
value.
1000 = 1
No. Name/Value Description FbEq
I
AO4
(mA)
15.21
15.22
15.23 15.24
15.2315.24
15.21
15.22
Signal (real)
selected by
par. 15.19
I
AO4
(mA)
Signal (real)
selected by par.
15.19
