15.17 AO3 src max Defines the real value of the signal (selected by parameter
15.13 AO3 src) that corresponds to the maximum AO3 output
value (defined by parameter 15.15 AO3 out max).
-32768.000 …
32768.000
Real signal value corresponding to maximum AO3 output
value.
1000 = 1
15.18 AO3 src min Defines the real value of the signal (selected by parameter
15.13 AO3 src) that corresponds to the minimum AO3 output
value (defined by parameter 15.16 AO3 out min). See
parameter 15.17 AO3 src max.
-32768.000 …
32768.000
Real signal value corresponding to minimum AO3 output
value.
1000 = 1
15.19 AO4 src Selects a drive signal to be connected to analogue output
AO4.
Speed rpm 01.01 Motor speed rpm (see page 103). 1073742081
Speed % 01.02 Motor speed % (see page 103). 1073742082
Frequency 01.03 Output frequency (see page 103). 1073742083
Current 01.04 Motor current (see page 103). 1073742084
Current % 01.05 Motor current % (see page 103). 1073742085
Tor q u e 01.06 Motor torque (see page 103). 1073742086
Dc-voltage 01.07 Dc-voltage (see page 103). 1073742087
Power inu 01.22 Power inu out (see page 103). 1073742102
Power motor 01.23 Motor power
(see page 103). 1073742103
SpRef unramp 03.03 SpeedRef unramp (see page 114). 1073742595

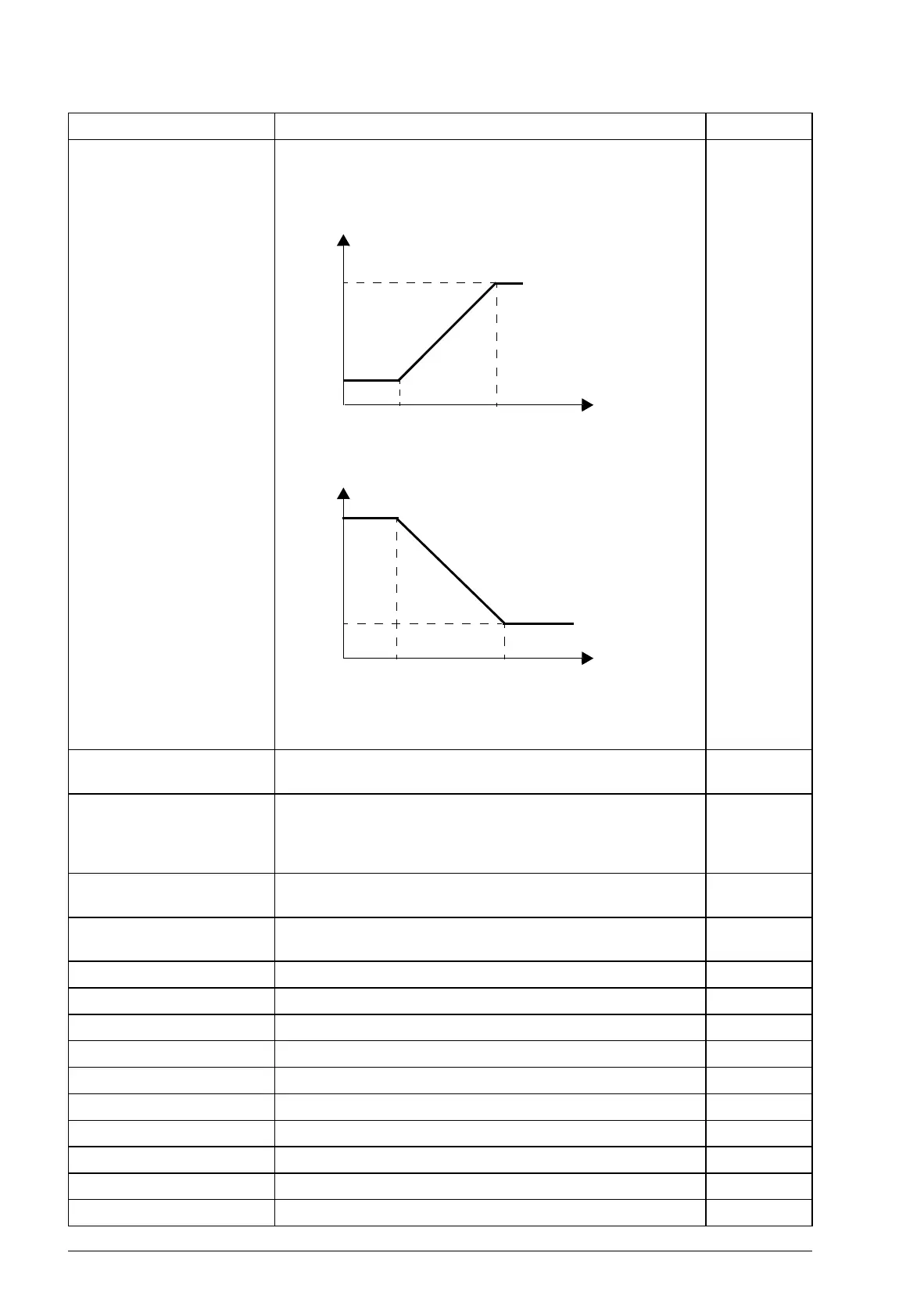

No. Name/Value Description FbEq
I
AO3
(mA)
15.15
15.16
15.17 15.18
15.1715.18
15.15
15.16
Signal (real)
selected by
par. 15.13
I
AO3
(mA)
Signal (real)
selected by
par. 15.13
