21.04 Speed ref1/2 sel Configures the selection between speed references 1 and 2.
(The sources for the references are defined by parameters
21.01 Speed ref1 sel and 21.02 Speed ref2 sel respectively.)
0 = Speed reference 1
1 = Speed reference 2
DI1 Digital input DI1 (as indicated by 02.01 DI status, bit 0). 1073742337
DI2 Digital input DI2 (as indicated by 02.01 DI status, bit 1). 1073807873
DI3 Digital input DI3 (as indicated by 02.01 DI status, bit 2). 1073873409
DI4 Digital input DI4 (as indicated by 02.01 DI status, bit 3). 1073938945
DI5 Digital input DI5 (as indicated by 02.01 DI status, bit 4). 1074004481
DI6 Digital input DI6 (as indicated by 02.01 DI status, bit 5). 1074070017
Const Bit pointer setting (see Terms and abbreviations on page
102).
-
Pointer
21.05 Speed share Defines the scaling factor for speed reference 1/2 (speed
reference 1 or 2 is multiplied by the defined value). Speed
reference 1 or 2 is selected by parameter 21.04 Speed ref1/2
sel.
-8.000 …8.000 Speed reference scaling factor. 1000 = 1
21.07 Speed ref jog1 Defines the speed reference for jogging function 1. For more
information on jogging, see page 85.
-30000 … 30000
rpm
Speed reference for jogging function 1. 1 = 1 rpm
21.08 Speed ref jog2 Defines the speed reference for jogging function 2. For more
information on jogging, see page 85.
-30000 … 30000
rpm
Speed reference for jogging function 2. 1 = 1 rpm
21.09 SpeedRef min abs Defines the absolute minimum limit for the speed reference.
0 … 30000 rpm Absolute minimum limit for speed reference. 1 = 1 rpm

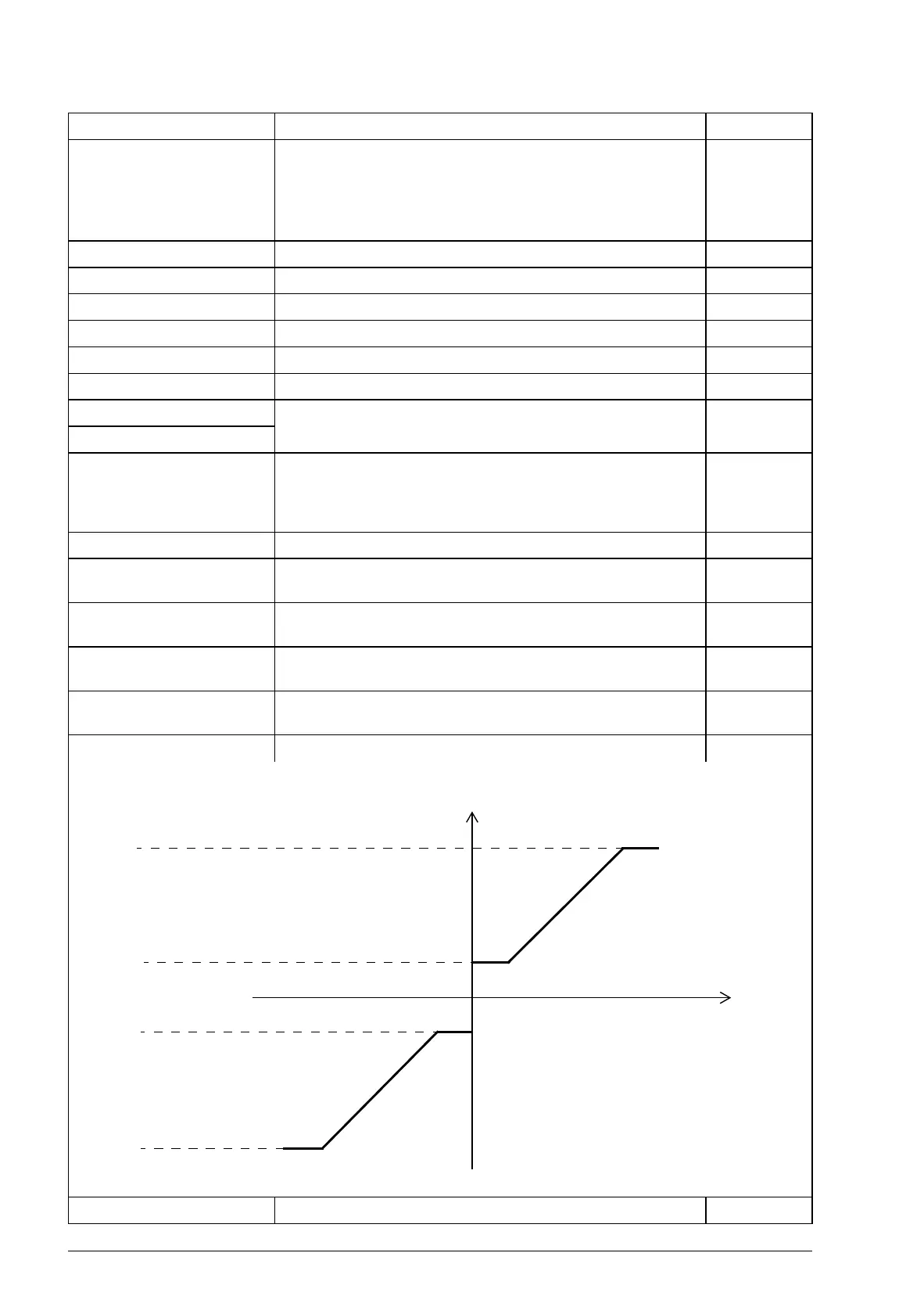

No. Name/Value Description FbEq
20.01
Maximum speed
21.09
SpeedRef min abs
-(21.09
SpeedRef min abs)
20.02
Minimum speed
Speed reference
Limited speed reference
