28 The ACS850 control panel
How to change the value of bit pointer parameters
The bit pointer parameter points to the value of a bit in another signal, or can be fixed
to 0 (FALSE) or 1 (TRUE). For the latter option, see page 30. A bit pointer parameter
points to a bit value (0 or 1) of one bit in a 32-bit signal. The first bit from the left is bit
number 31, and the first bit from the right is bit number 0.

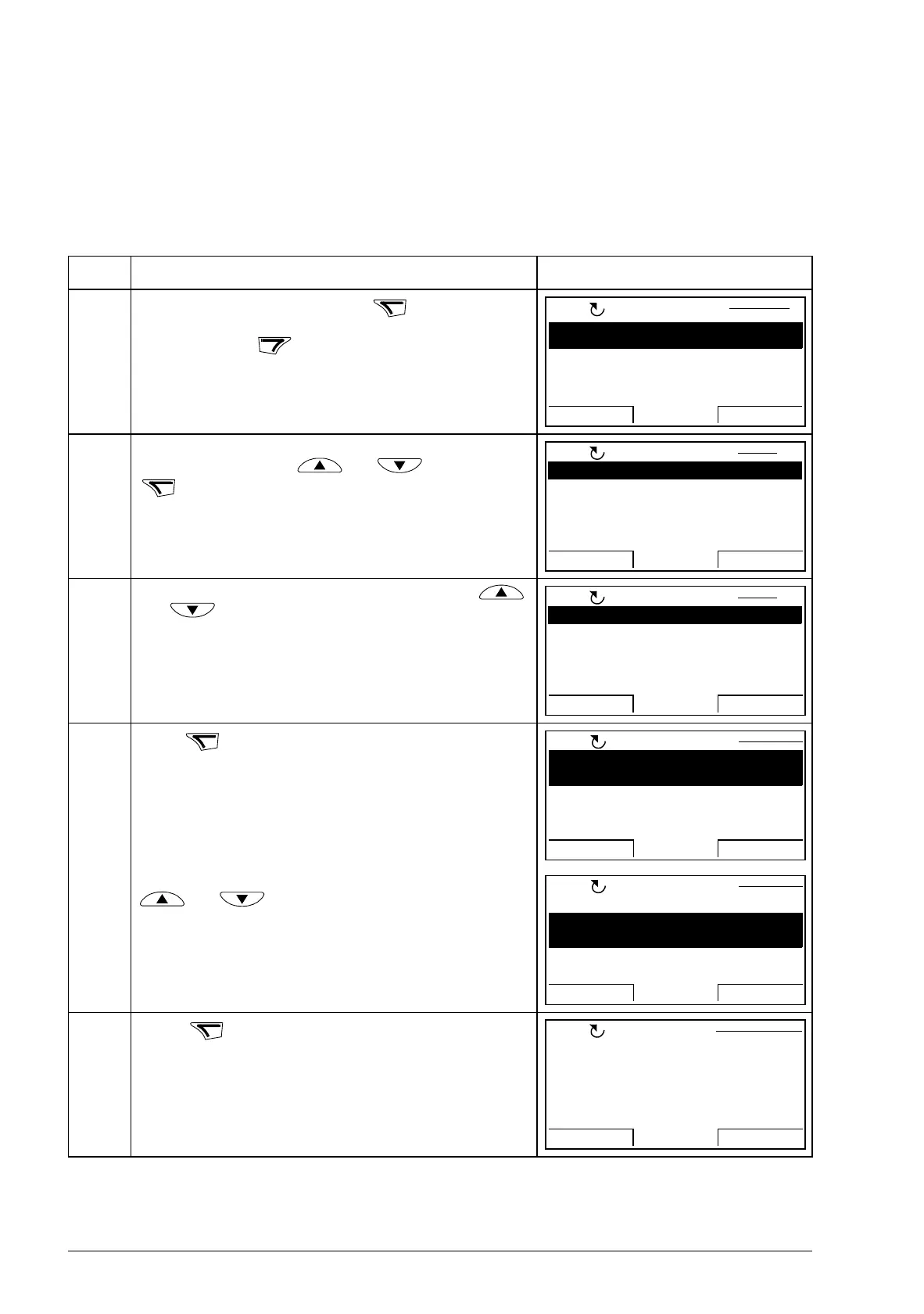

Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode.
Otherwise press repeatedly until you get to the
Main menu.
2. Go to the Parameters option by selecting PARAMETERS
on the menu with keys and , and pressing
.
3. Select the appropriate parameter group with keys
and . Here the bit pointer parameter 10.02 Ext1
start in1 is used as an example.
4. Press to select the appropriate parameter group.
Current value of each parameter is shown below its
name.
Select the parameter 10.02 Ext1 start in1 with keys
and .
5. Press .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
ENTER
01 Actual values
02 I/O values
03 Control values
04 Appl values
06 Drive status
EXIT SEL
00:00
PAR GROUPS 01
LOC
10 Start/stop/dir
11 Start/stop mode
12 Operating mode
13 Analogue inputs
14 Digital I/O
EXIT SEL
00:00
PAR GROUPS 10
LOC
SEL
1001 Ext1 start func
In1
1002 Ext1 start in1
1003 Ext1 start in2
1004 Ext2 start func
PARAMETERS
EXIT EDIT
00:00
LOC
1001 Ext1 start func
1002 Ext1 start in1
DI1
1003 Ext1 start in2
1004 Ext2 start func
PARAMETERS
EXIT
EDIT
00:00
LOC
EDIT
1002 Ext1 start in1
DI1
PAR EDIT
CANCEL SEL00:00
[P.02.01.00]
LOC
