Chapter 3: Configuration 3.6 Setting the Configuration
493-0736-11 (6-2) 173
This type of output splits the Control Block output signal into two signals, Val ue 1
and Val ue 2 . The linear relationships between the input and the two outputs Va lue1
and Va lu e2 can be configured via the parameters.

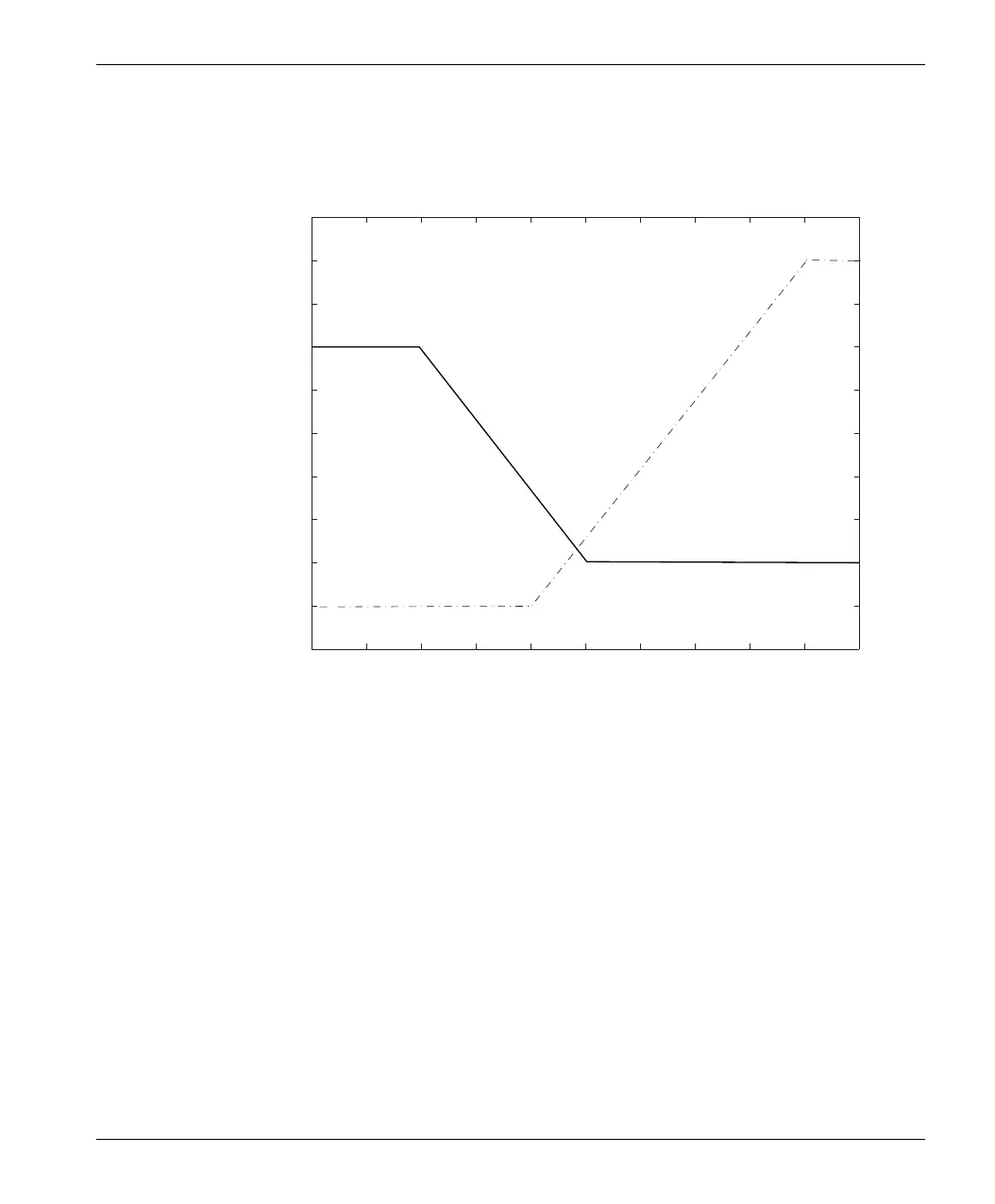

Figure 57 Split Range Output.
In the example above the coordinate pairs are:
Value1: (20.0, 70.0) and (50.0, 20.0) and Value2: (40.0, 10.0) and (90.0, 90.0).
0 10 20 30 40 50 60 70 80 90 100
0
10
20
30
40
50
60
70
80
90
100
Control Signal
Va lu e 1
Valu e2
