Note/IllustrationAction
xx1900000530

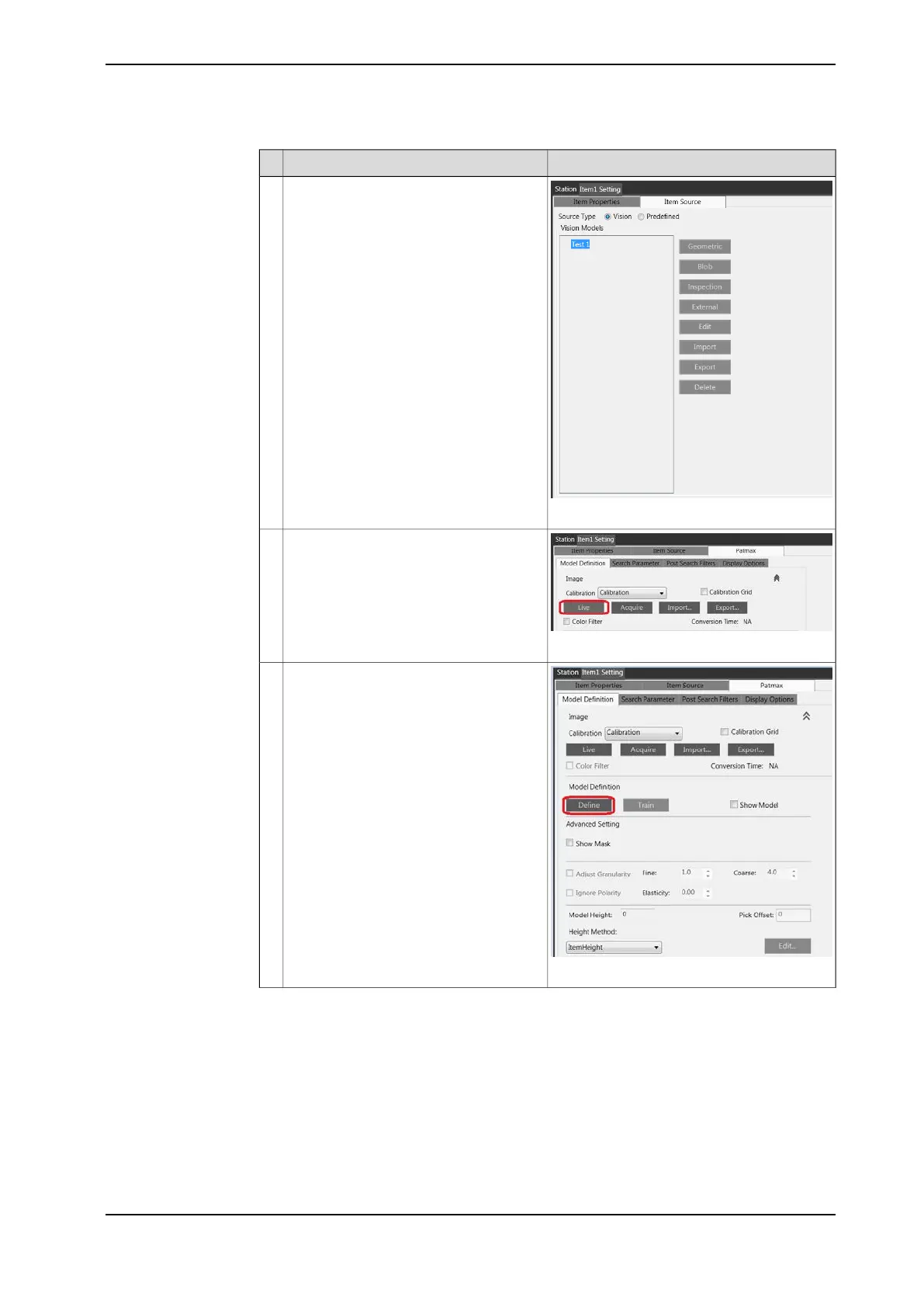

Click to select Test1 in the Vision Models
and click Geometric to open the geomet-
ric window.
36
xx1900000649
In the Image part, click Live to get and
show new images continuously, or click
Acquire to get one new image. To use an
image from file or save the current image,
click Import or Export.
37
xx1900000650
Click Define to finish the train.38
Continues on next page
Application manual - PickMaster® Twin - PowerPac 359
3HAC064218-001 Revision: B
