ABB PickMaster Twin - PowerPac User Manual

DescriptionItem
Click to preview the new conveyor.Preview icon
Allows you to select the reference coordinate for the conveyor.Reference Coordinate
Allows you to set the position of the conveyor.Position XYZ(mm)
Allows you to set the orientation of the conveyor.Orientation XYZ(deg)
Allows you to choose the setting of the signal.Conveyor Signal
Allows you to choose the controller to be used.Controller
Procedure
On the PickMaster PowerPac ribbon-tab, click Layout.
Use this procedure to add conveyors:
1 On the ribbon-tab, click Conveyor.

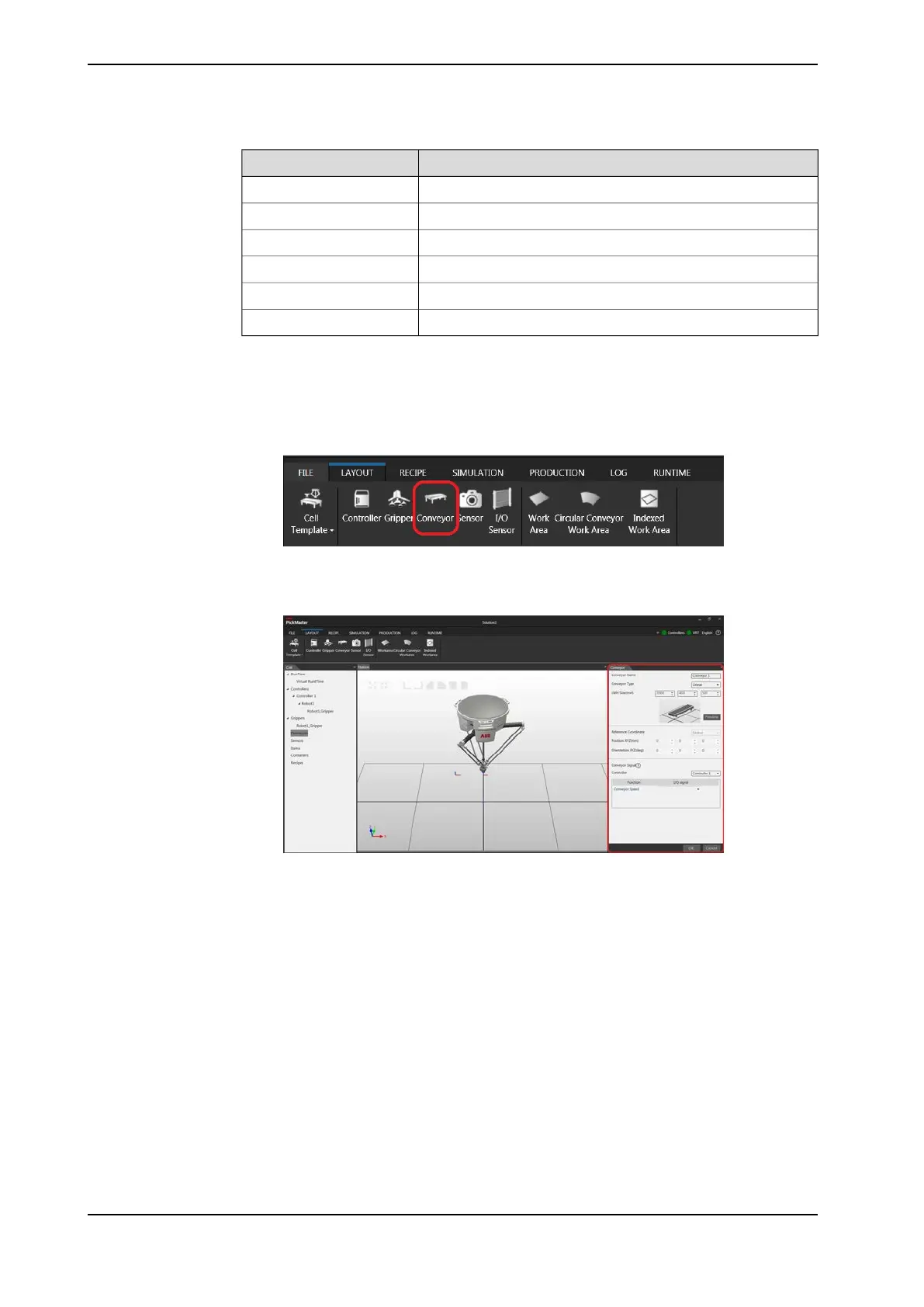

xx1800000855
The Conveyor window opens.
xx1800000856
2 In the Conveyor window, enter a name in the Conveyor Name text box or
use the default one.
3 In the Conveyor window, select a type as liner or circular in the Conveyor
Type drop-down list.
Continues on next page
86 Application manual - PickMaster® Twin - PowerPac
3HAC064218-001 Revision: B
© Copyright 2021 ABB. All rights reserved.
4 Working with PickMaster PowerPac
4.2.4 Adding Conveyor
Continued
