Adixen ASM GRAPH D+ - Set Point Menu

3 /5
C 140

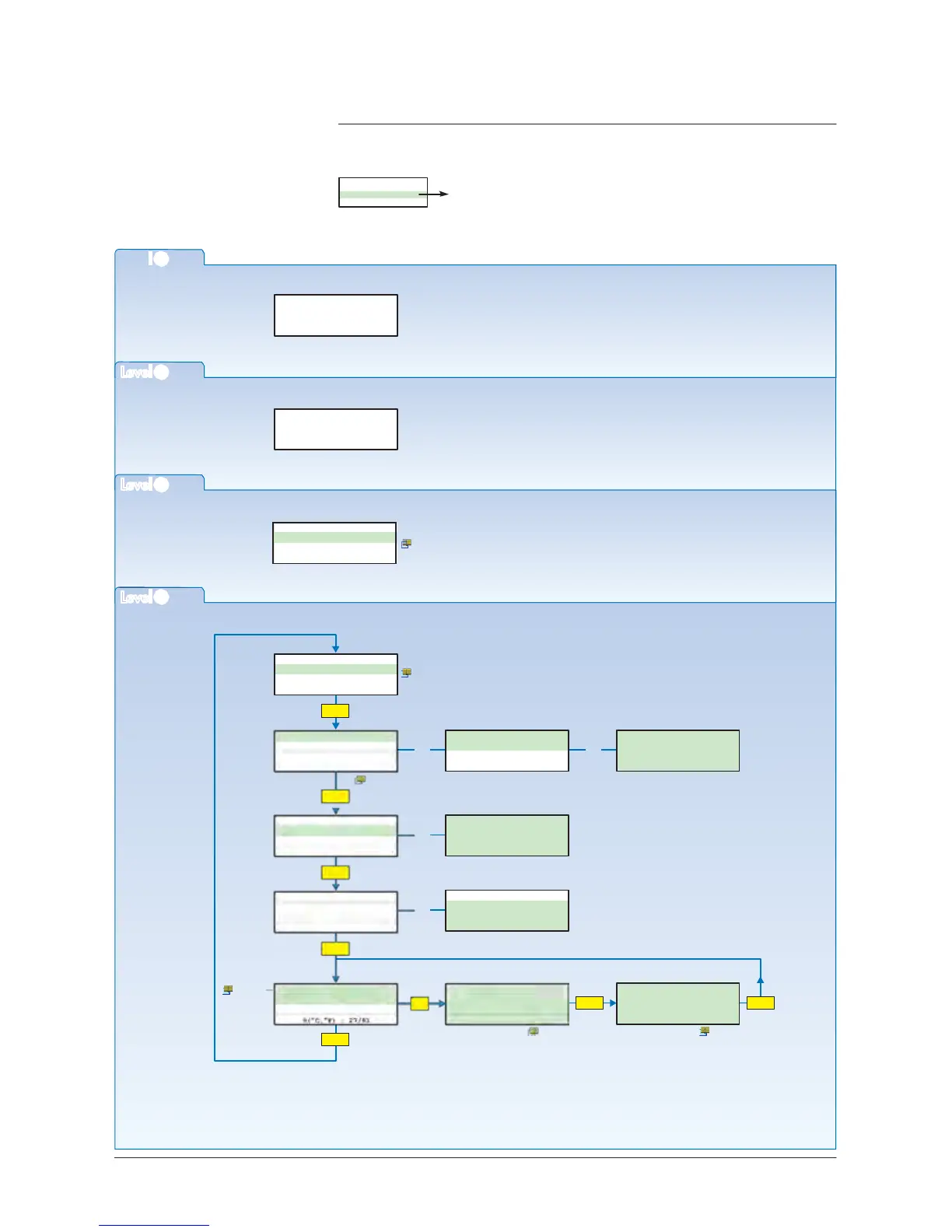

Summary of screens
value/function adjustable
Set point menu
Level 1
SPECTROMETER
FILAMENT#1 : on
TRIODE PRESSURE : 1
MARGIN : 100%
GB 01671 -
Edition
04 -
June
08
READY FOR CYCLE
INLET VENT: off
Level 2
SPECTROMETER
FILAMENT#1 : on
TRIODE PRESSURE : 1
MARGIN :
100%
Level 3
E 400
Level 4
SPECTROMETER
FILAMENT#1 : on
TRIODE PRESSURE : 1
MARGIN :
100%
E 400
NEXT
AUTOCALIBRATION off AUTOCALIBRATION on
AUTOCALIBRATION
on
NEXT
OR
C 302
CAL. CHECK.: operator
OR
CAL. CHECK.: automatic
EVERY : 0100
CYCLES
EVERY : 0010
HOURS
FILAMENT CHOICE :#1
FILAMENT :
on
CALIB. VALVE : close
ELECTRONIC ZERO : 77
NEXT
TARGET VALUE:1.0E-07
ACC. VOLTAGE :
220V
EMISSION : 0.6mA
COEF. SENS. : 01.00
OR
(1)
OR
FILAMENT CHOICE :#1
FILAMENT :
on
CALIB. VALVE : close
ELECTRONIC ZERO : 77
TARGET VALUE:1.0E-07
ACC. VOLTAGE :
220V
EMISSION : 0.6mA
COEF. SENS. : 01.00
(2) (1) Calibration = on
(2) Calibration = off
NEXT
(1) (2)
C 430
SELECTED GAS : He
F2 => CALIBRATED
LEAK
INT.
CALIBRATED GAS :
He
F2
UNIT : mbar.l/s
LEAK VALUE :
1.0E-07
LOCATION :
internal
NEXT
YEAR : 2003
LOSS PER YEAR : 2.00
%
REF TEMPERATURE : 20 ¡C
TEMP. COEFF. : 3 %/¡C
NEXT
NEXT
C 305 C 305
