Adixen ASM GRAPH D+ - Tighten All the Connection Screws; Reassemble the Flange

E 400
Basic maintenance of the analyzer cell
GB 00046 -
Edition
07 -
June
08
Tighten all
the
connection screws
g Make sure that all the connection screws are facing inwards and
are not in contact with each other.

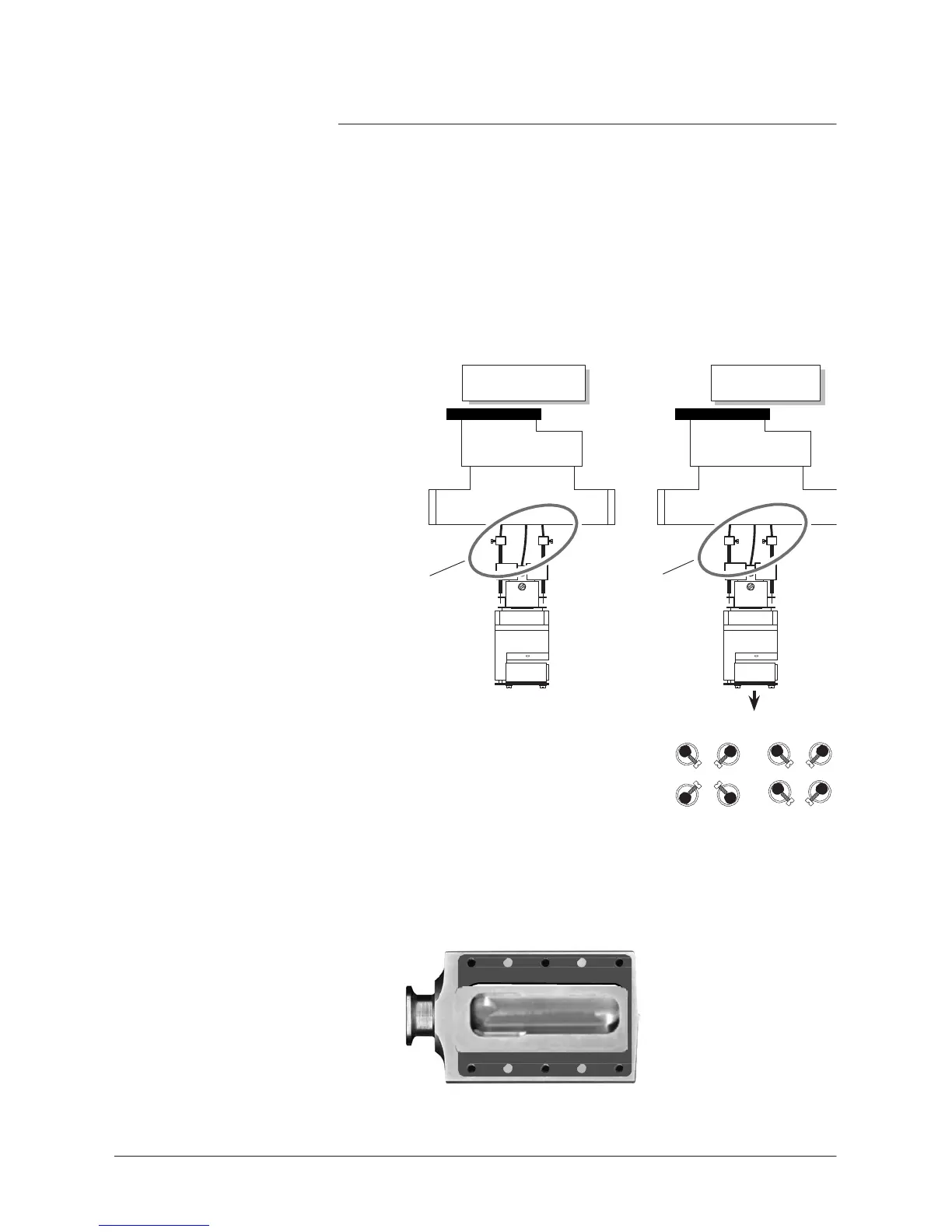

INCORRECT CORRECT
Screws facing
outwards:
risks of
contact with
cell
body
Screws
facing
inwards
T op view
Correct Incorrect
Reassemble the flange g Reposition the special elastomer seal on the body. If it is damaged,
change
it.
