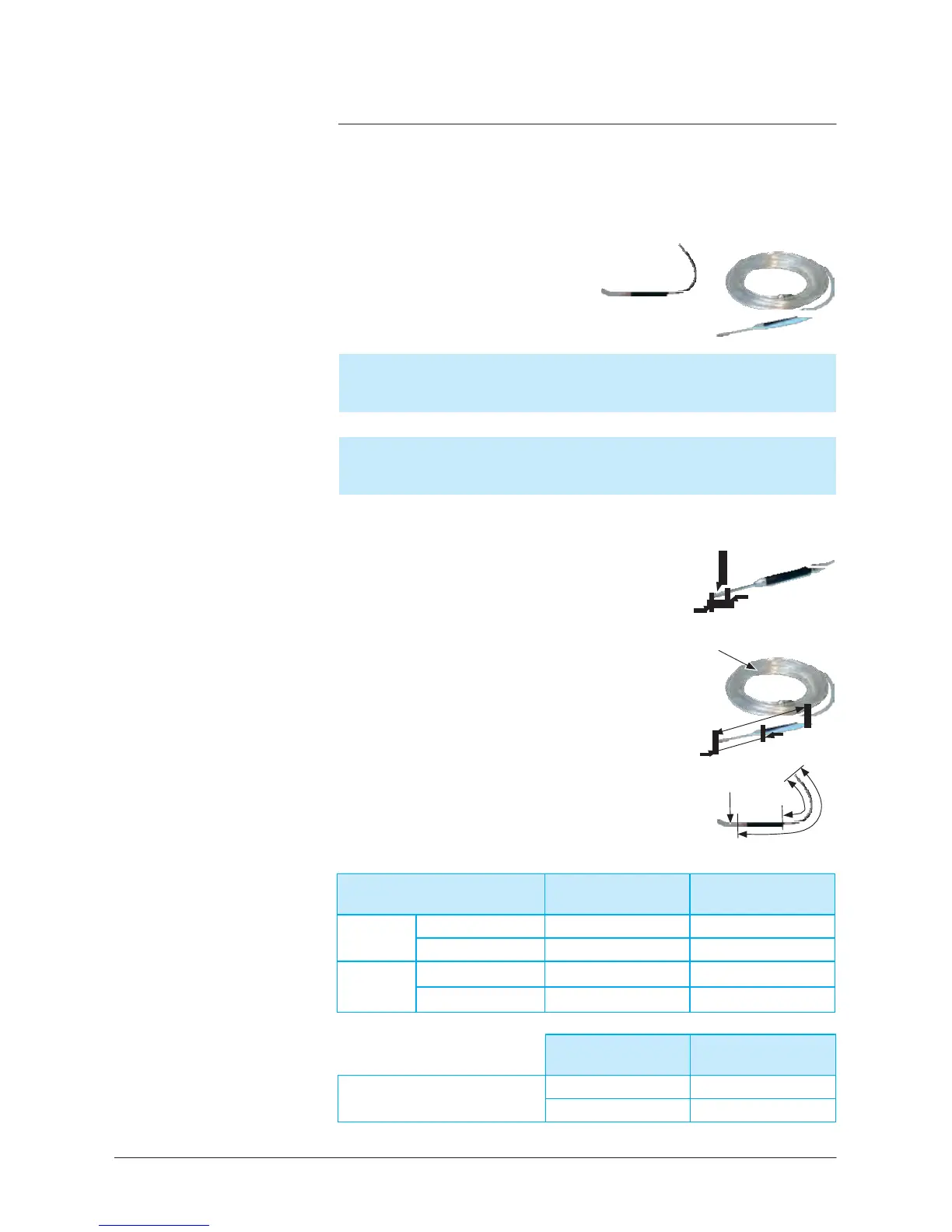

Adixen ASM GRAPH D+ - G 400 - Long distance sniffer probe user manual

G 400
Long distance sniffer probe user manual
GB 01962 -
Edition
03 -
June
08
This document concerns the p/n SNCxExTx
long distance sniffer probes.
For all service operations, the long distance sniffer probe should be
disconnected from the helium leak detector.
The parts involved are small: be careful not to loose them
Dimensions
Dimensions of the sniffer probe end, for all
sniffer probe models.
dia. 6 mm/ 0.23 inch
20 mm/ 0.8 inch
C
To calcultate the complete size of the sniffer
probe, add (A) and (C) depending on the
sniffer probe model.
A
Example : sniffer probe p/n SN C1E1 T 1
B
=
C
gun (A) 19 cm + tubing (C) 5 m
B
A
gun (A) 7.5 inch + tubing (C) 197 inch
End ( B )
Sniffer probe
part number
Gun ( A )
Rigid
9 cm/3.5 inch
SNCxE1Tx
19 cm/7.5 inch
30 cm/11.8 inch
SNCxE2Tx
40 cm/15.7 inch
Flexible 15 cm/5.9 inch
SNCxE3Tx 25 cm/9.8 inch
45 cm/17.7 inch
SNCxE4Tx 55 cm/21.6 inch
Sniffer probe
part number
T ubing ( C )
PVC flexible (external dia. :
6
mm/0.23 inch)
SNC1ExTx
5 m/197 inch
SNC2ExTx 10 m/394 inch
1/8
