Adixen ASM GRAPH D+ - External Calibration; Inlet Vent; Internal Calibration

C 400
Remote control
3 /3
GB 01364
-
Edition 05
- June
08
Use and display
(ctd)
Zero function
10
-1 0
10
-1 1
10
-1 2
mbar.l/s
In order to start zero function, operator can use either the ZERO
control key on the control panel or
remote control.

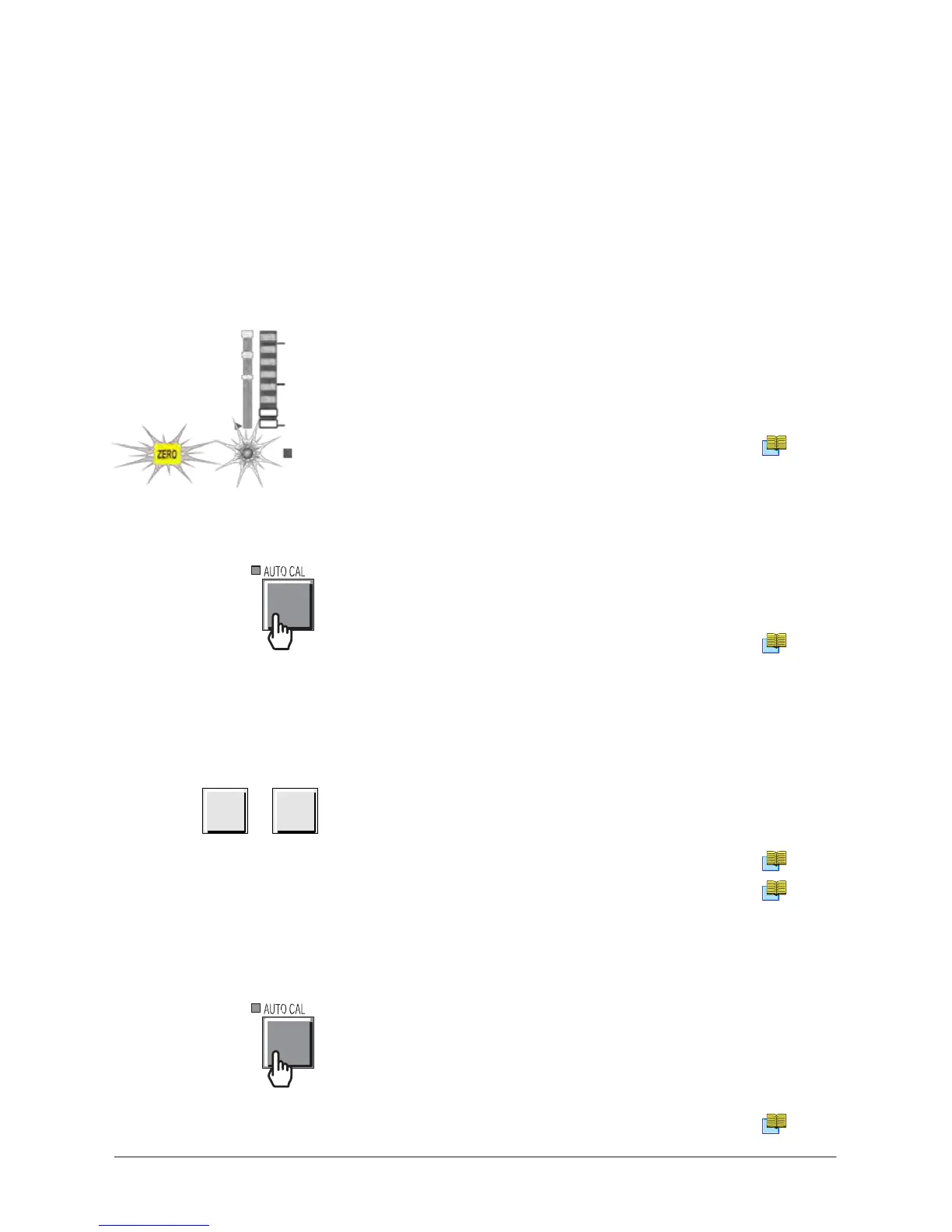

Display
T wo indicators are ON when the zero function is activated:
• the ZERO indicator ,
• the zero scale indicator .
Zero function C 540
Internal calibration
In order to start an internal calibration, operator can
use either the
AUTOCAL control key on the control panel or remote control.
Display
The LED indicator is ON when the control key is activated.
The LED indicator is OFF at the end of the calibration procedure.
Calibration of the leak detector C 300
Inlet vent
Sniffing test mode
VENT SNIF
For these 2 functions, the remote control displays only their status: use
the control panel in order to activate/deactivate them..
Display
The LED indicator is ON/OFF when the function is activated/
deactivated.
Inlet vent C 500
Sniffing test mode C 211
External calibration The remote control displays only its status: use the control panel in
order to start/stop
it.
Display
The LED indicator is blinking when the external calibration is
activated.
At the end of the calibration procedure, the
LED indicator is OFF and
the correction factor COR is
ON.
External calibration C 303
