Adixen ASM GRAPH D+ - Control Panel Interface

C
440
Control panel with graphic inter face
2 / 14
11
10 10 10 10 10 10 10 10 10 10 10
GB 02669
-
Edition 03
- June
08

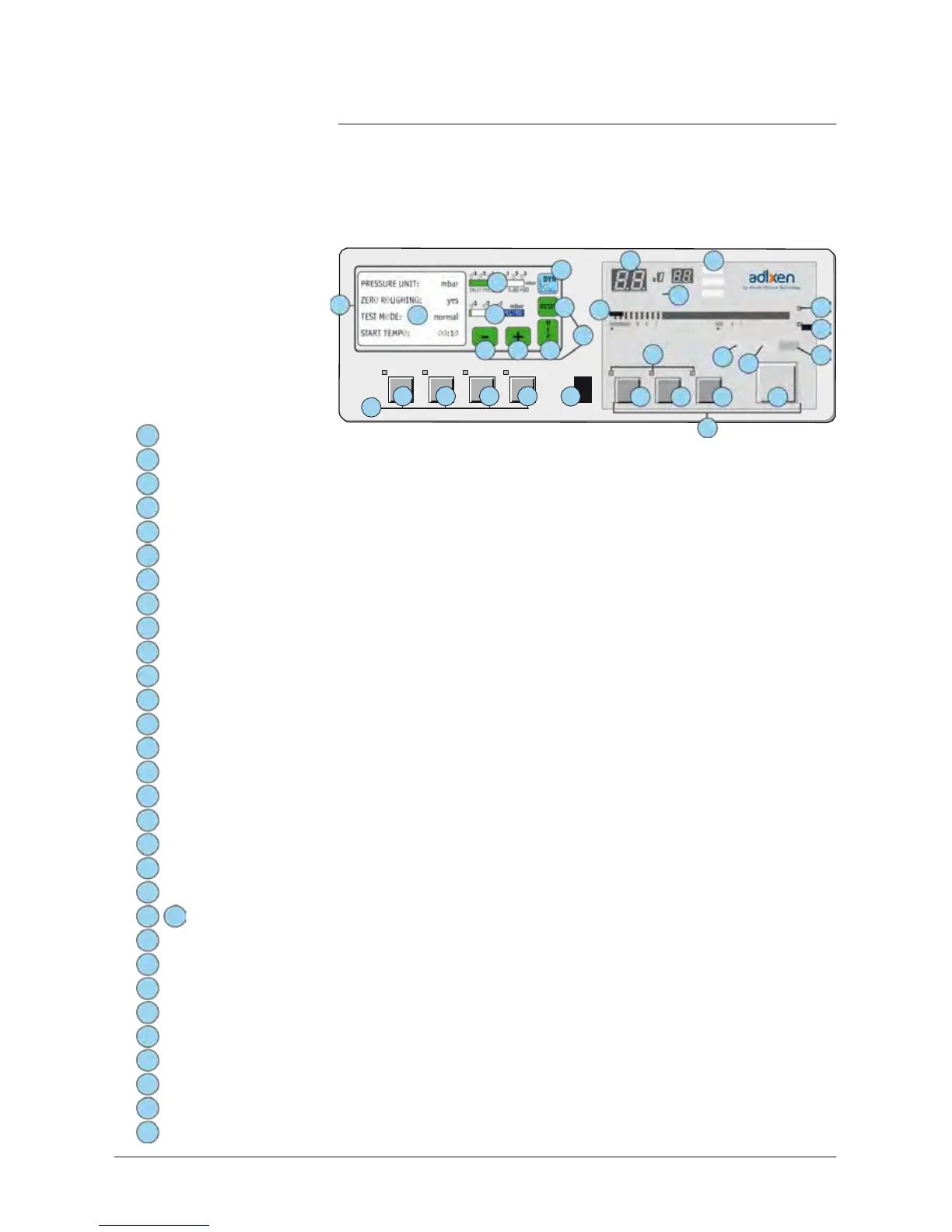

Control panel inter face
16 15
30
mbar.l/ s
1
Pa.m
3
/s
LEAK RAE
COR
14
Torr.l/ s
31
17
18
20
-12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2
12
19
13
21 22 23
SDBY
2
8
9
EVAC ES
10
SET POINTS SPECTRO MAINTENANCE OTHER AUTO CAL SNIFFER ZERO
CYCLE
25 26 27 28 29
24
3 4 5
6
7
1
Inlet port pressure analog display
2
Control and menu selection indicators (ON when activated)
3
Auto-calibration START/ABORT control key
4
Sniffing mode ON/OFF control key
5
Auto-zero ON/OFF control key
6
Cycle START/STOP control key
7
Control keys (4 keys)
8
Standby ON/OFF indicator
9
Evacuation ON/OFF indicator
10
Test ON/OFF indicator
11
Helium signal analogic display
12
Helium signal analogic scale ON/OFF indicator
13
Helium signal Zero scale ON/OFF indicator
14
Correction factor COR indicator (applied to digital display)
15
Units of measurement selection
16
Helium signal digital display
17
Menu display (4 lines)
18
Spectro pressure analog display
19
Modification access keys (4 keys)
20
RESE T : next display/parameter circular function
21 22
Plus or minus value adjustment, parameter selection, audio volume adjustment keys
23
NEXT of previously displayed values (cancels temporary inputs)
24
Menu selection access keys (4 keys)
25
SET POINT menu selection key
26
SPECTRO (calibration and analyzer cell configuration menu selection key)
27
MAINTENANCE menu selection key
28
OTHER menus selection key (test mode selection, inlet VENT selection, date/time)
29
Remote control connection (accessory)
30
Graphic interface selection key
31
Color touch screen
