Adixen ASM GRAPH D+ - 24 V DC Power Supply

B 300
GB 00298 -
Edition
03 -
June
08
Controlling the detector with the I/O
inter face

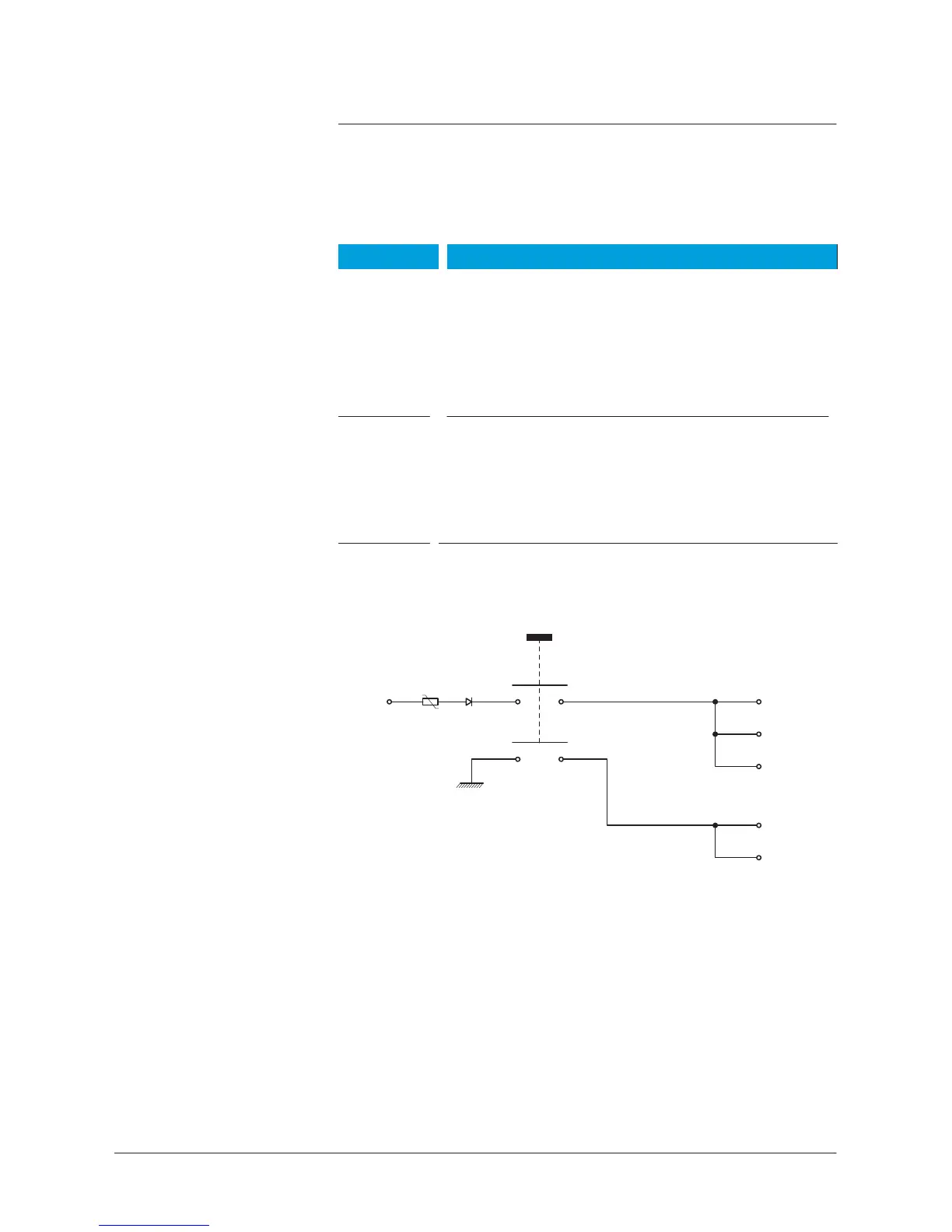

24 V DC Power supply
Pin No
24 V DC power supply
10, 11, 13 If SW1 on P0307 interface board is closed
(upper position)
 +24V DC (maximum current 350 mA)
supplied by leak detector
If SW1 is open (lower position)
(+) point for customer external power supply (24 V)
12, 21
If SW1 on P0307 interface board is closed
(upper position)
 Ground
If SW1 is open (lower position)
 (-) point for customer external power supply
SW1
+ 24 V
detector
F1
J3.10
350 mA
J3.11
J3.13
GND
J3.21
J3.12
2 / 2
