Adixen ASM GRAPH D+ - E 750 - Primary pump maintenance

E 750
Primary pump maintenance
GB
00239
-
Edition 04
-
December
05
The frequency of preventive maintenance is listed D 100
Components:
ALCATEL 200 Oil (1 liter)
Cartridge (Oil mist
eliminator).....................................
F 600

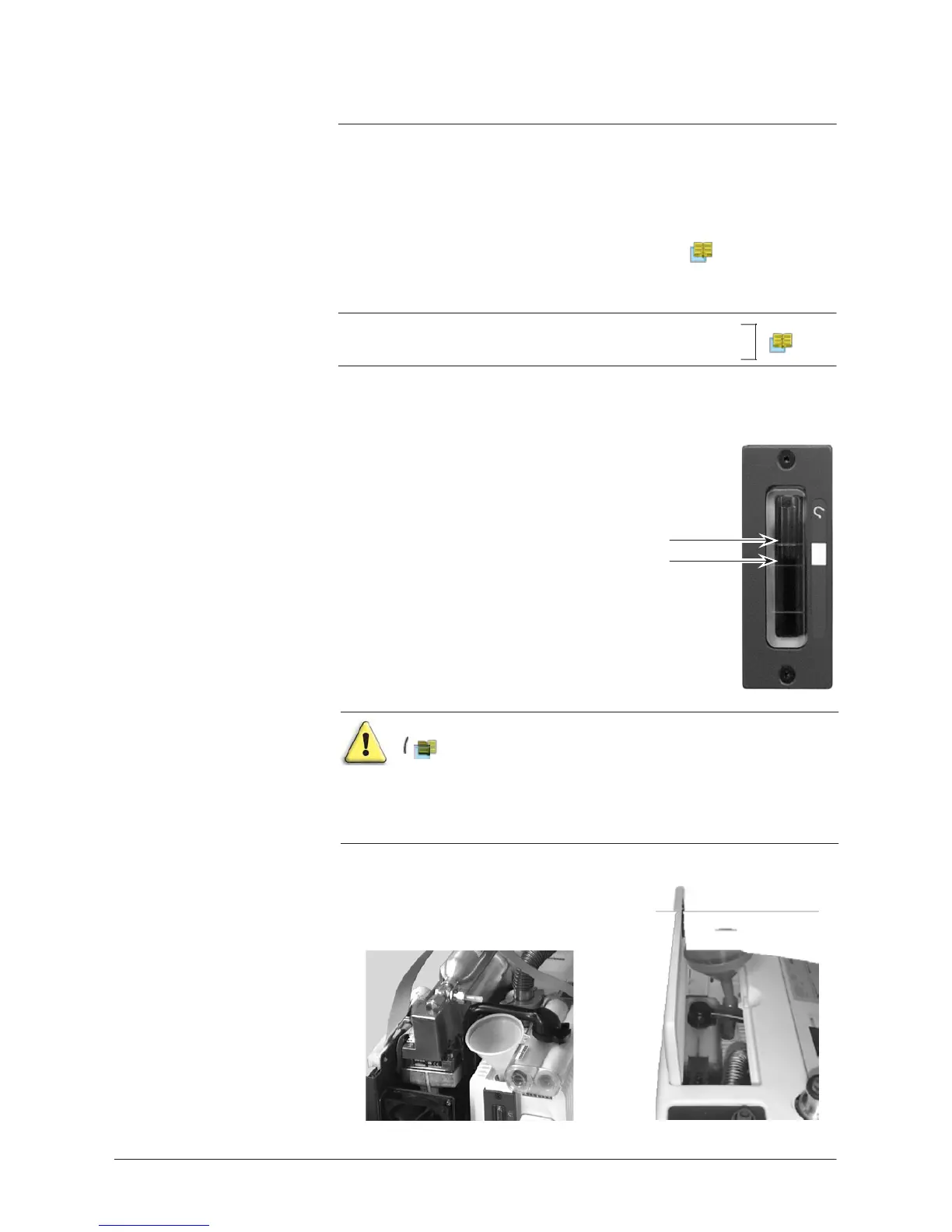

For best
performance, check the oil level in the sight glass
periodically .
Check the oil level of
the roughing
pump
If the level is not between the
mini and the maximum level, it is
necessary to add oil.
Maxi.
Mini.
Oil for the first utilisation is delivered with the detecto r .
B 110).
Replacement of oil is the user’s
responsability .
The Alcatel pumps are tested with
ALCATEL 200 oil.
Their specifications are
guaranteed only when this
recommended lubricant is used.
Add oil
 Open the cover (ASM 142).
 Remove the cover (ASM 142 S).
 Remove the draining plugs.
ASM 142 S ASM 142
/3
