C 120
Setting and maintenance part
presentation
of the control panel
GB 00966 -
Edition
06 -
June
08

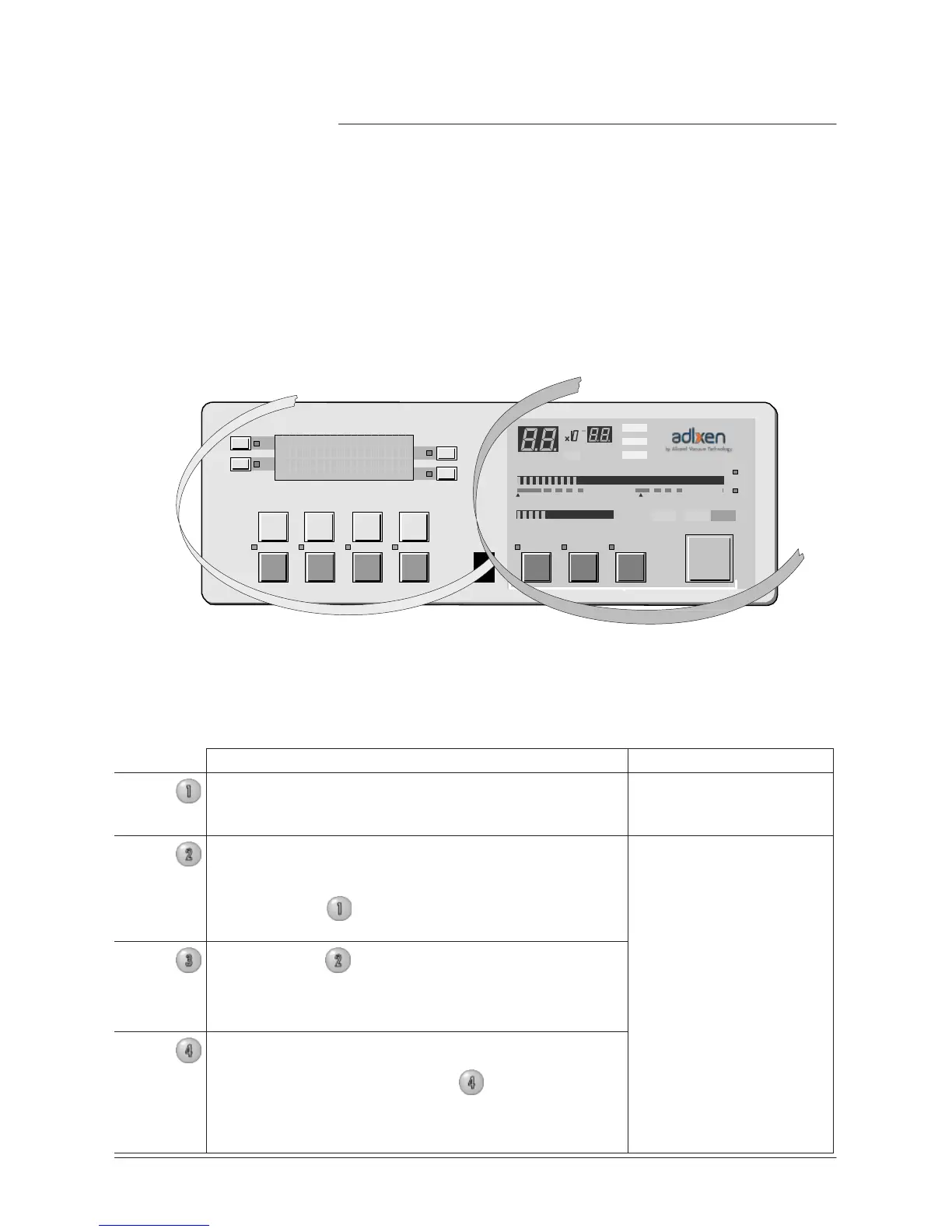

The control panel can be divided into two different sections.
• The section located on the right of the control panel is dedicated to
the user.
• The section located on the left of the control panel dedicated to the
setting and maintenance (adjustments, functions, menu access, etc.).
Operation par t
F1
F2
LEAK RA TE
F3
COR
mbar .l/ s
Pa.m
3
/s
T orr .l/ s
F4
10
-12
10
-11
10
-10
10
-9
10
-8
10
-7
10
-6
10
-5
10
-4
10
-3
10
-2
10
-3
10
-2
10
-1
1
10
1
10
2
10
3
mbar
hPa
T orr
STDBY EVAC TEST
NEXT - + RESET
INLET PRESSURE
SET POINTS SPECTRO MAINTENANCE OTHER AUTO CAL
SNIFFER
ZERO
CYCLE
Setting and maintenance par t
Levels
Description
• The detector offers 4 user interface levels for this section to
accomodate any application requirements.
Setting and maintenance part
User part
Level
1
This level has very limited information on the
alphanumeric display
(LCD). This level is generally
selected for production types of applications.
No access to control keys
(Cycle key included)
Level
2
This level allows the operator to visualize some
parameters without the possibility of making any
changes.
Same as Level
1
, this level is usually selected for
production types of applications.
Access to all the control
keys
Level
3
Same as level
2
but with possibility to set some
parameters.
This level is generally selected for maintenance
applications.
Level
4
This level allows access to all the parameters and is
generally
used for settings all the parameters.
Note: When switching from level
4
to any other
level, the switch can be performed without using the
password.
This level is generally selected for R&D applications.
