Adixen ASM GRAPH D+ - E 111 - ASM 142 D - ASM Graph D+ - Access to the internal components

E 111
Access to the internal components
ASM 142 D - ASM Graph D+
GB 01490
-
Edition 03
- June
08
Access level 1

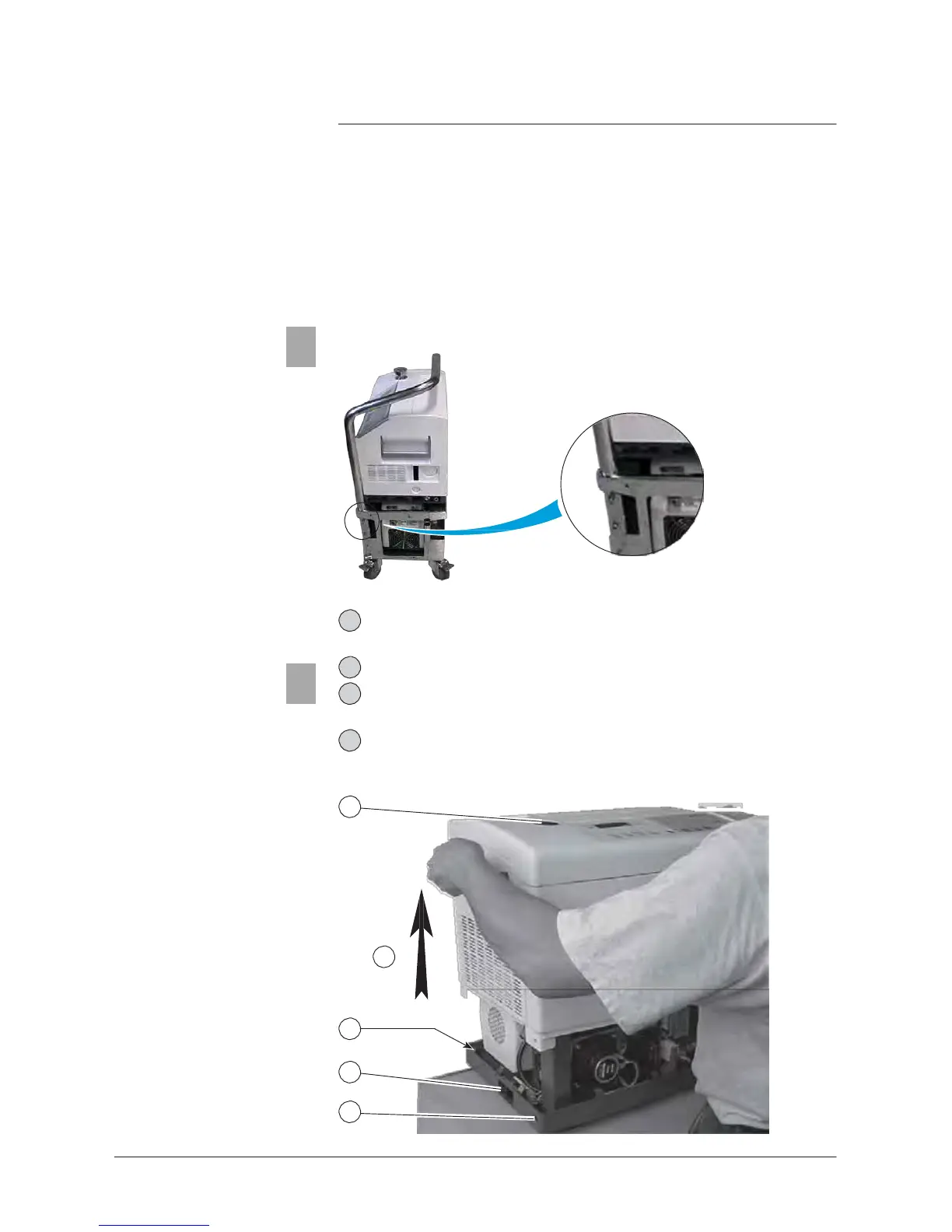

Cart handle removing
(only ASM Graph
D+)
5
Removable cover
5
Remove the cart handle before removing the detector cover.
- Unscrew the handle fastening screw
- Free the handle.
1 Switch off the machine by setting the main switch to «0» and
disconnecting the main power .
2 Remove the inlet port clamp.
3 Unfasten the 4 securing screws and their washers using a 5 mm
Allen key.
Use a 5mm Allen wrench.
4 Remove upper the cover. Be careful of the front panel cable.
2
4
3
1
3
1/5
