Adixen ASM GRAPH D+ - E 740 - Greasing molecular and turbomolecular pumps

E 740
Greasing molecular and
turbomolecular pumps
GB 01240
-
Edition 04
- Juin
08

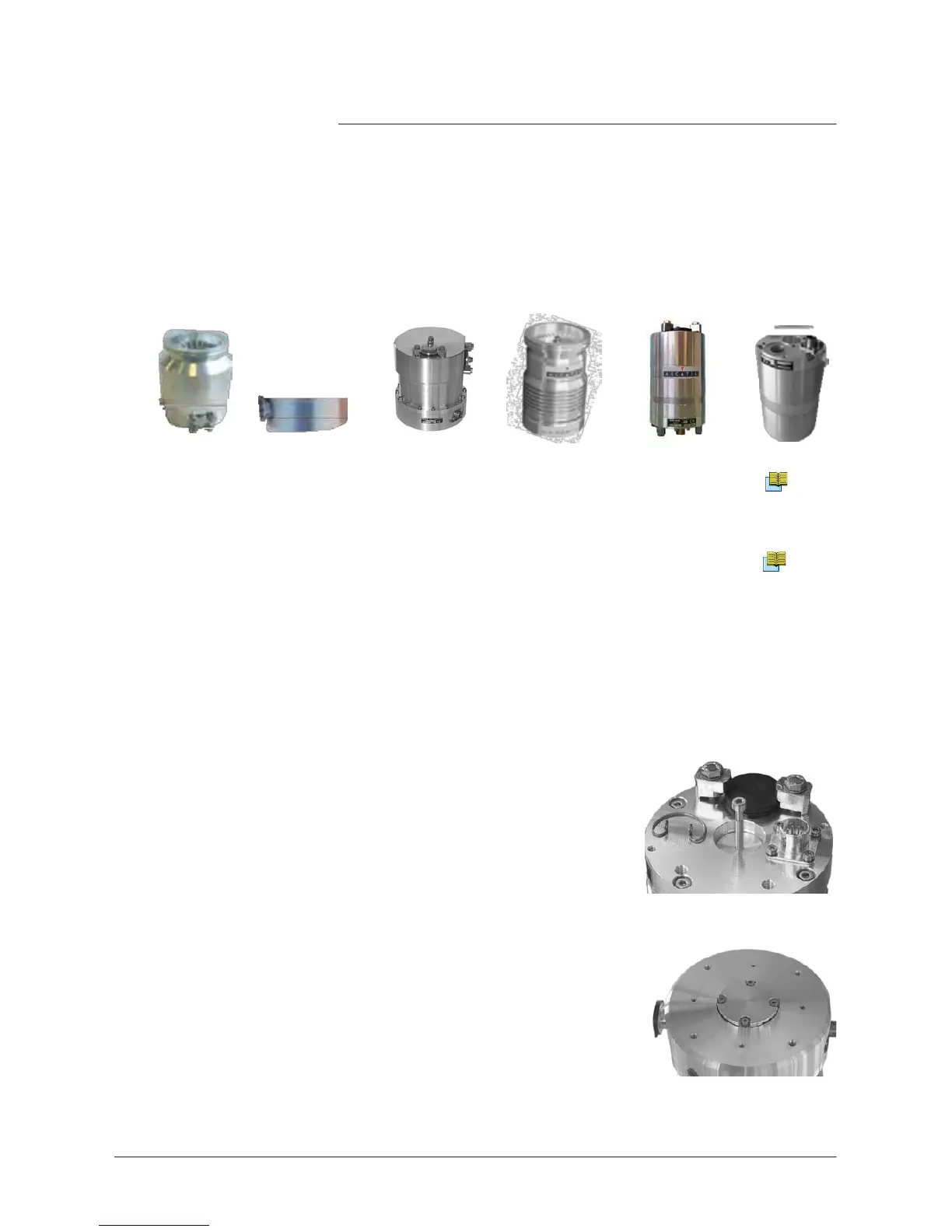

This technical sheet is for this differents pumps:
ATH 164 ATP 100 TMP 5154 MDP 5011 MDP 5006 HDS AMP 007i
The frequency of preventive maintenance is listed D 100
Components:
Grease syringe F 600
Disassemble the pump
Accessing the bearings
 It is necessary to disassemble the TMP 5154 and MDP 5006 HDS
from the
detector to do the greasing.
 It is not necessary to disassemble the MDP 5011 from the detector to
do the greasing.
MDP 5011 / 5006 HDS / AMP 007i
 Remove the clips and use the extractor
to take out the plug.
 Once the extractor is in place, pull it
vertically.
MDP 5011
TMP 5154 / ATP 100 / ATH 164
 Remove the rear cap from the pump
(4 allen head screws).
This cap is directly accessible from
underneath the leak detector.
TMP 5154
1/5
