Alcatel Vacuum Technology France - User's Manual ASM 142 D

TRM DB02 03/2009

F 300

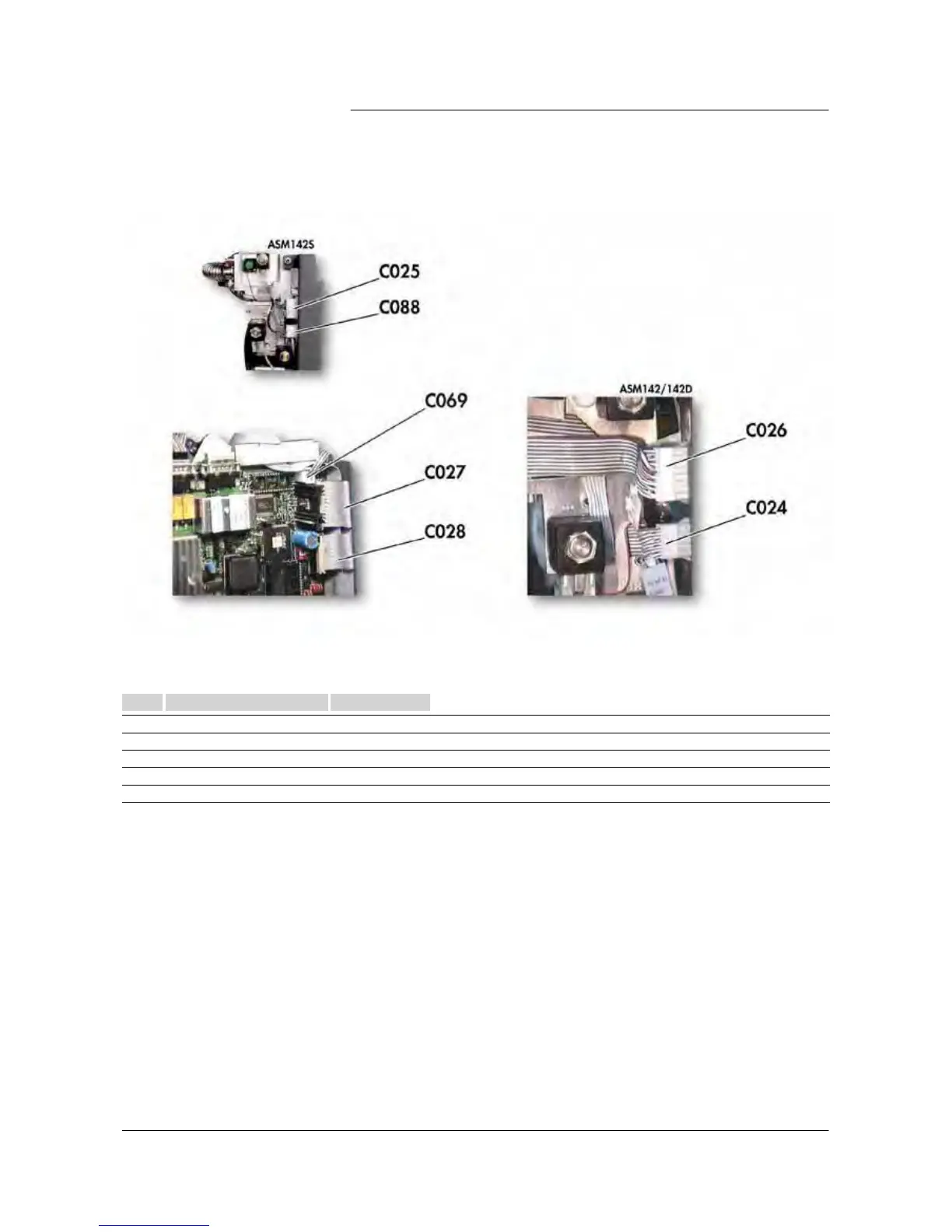

Power and electrical supply

ASM 142 D

Ref

Descriptio n

P/N

Qty

Remarks

C024

HARNESS, 10 PTS BLOCK - 142

C026

HARNESS, 15 PTS BLOCK - 142

See sheet E 360

C027

HARNESS, 34 PTS RS232 WIRING - 142/102S

C028

HARNESS, 26 PTS RS232 WIRING - 142/102S

C069 HARNESS, 3 PTS RS232 WIRING - 142/102S

* Contact customer services
