7713395 R2 75
• UNLOAD TRANSPORT STALL SWITCH INSTALLED? Yes or No
Metering Rolls Minimum and Maximum Speed
• The minimum speed default value is 10. This may need to be increased to ensure the moisture sensor
remains covered with grain.
• The maximum speed value should reflect the unload system capabilities:
– If the value is set too high, excessive plugged discharge alarms will occur.
– If the value is set too low, production will not be maximized.
Control Setup (overrides)
• This section allows the operator or technician to “override” switches, etc.
• For fully automatic dryer and moisture control operation, all switches should be “ON”. This will cause the
control to automatically proceed to the next stage, without pausing to wait for a screen control to be
activated.
• If the DryerMaster system has an alarm, the default control status to proceed is to STOP DRYING. If the
screen control is toggled, the dryer will continue running at MANUAL METERING ROLL SPEED.

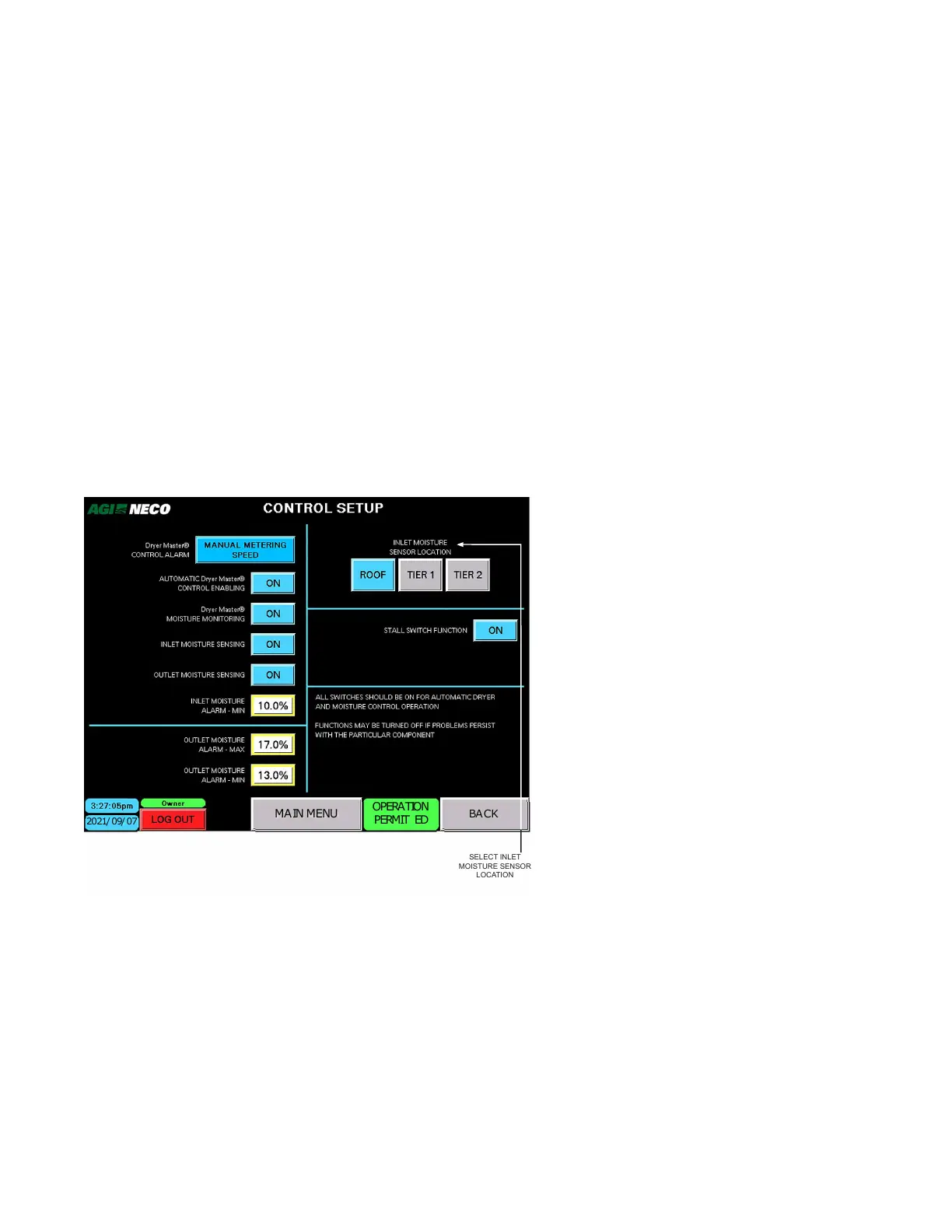

Figure 93. Control Setup screen
MAIN MENU
2021/ 09/ 07
OPERATION
PERMIT ED
BA CK
SELECT INLET
MOISTURE SENSOR
LOCATION
Outlet Moisture Maximum and Minimum Alarm Setpoints
• Outlet moisture readings outside of these limits will trigger an alarm and shut down the dryer.
• These setpoints are also visible and editable when changing the target moisture. They can be set as close as
0.5% above and below target moisture. Keep in mind the narrower this window the more likely the dryer
will shut down.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 4. OPERATION
