4 Making Measurements
100 Agilent 1000B Series Oscilloscopes User’s Guide
Displaying Automatic Measurements
You can use the [Meas] key to display automatic measurements. The
oscilloscope has 22 automatic measurements and a hardware frequency
counter (see “Voltage Measurements” on page 102 and “Time
Measurements” on page 105).

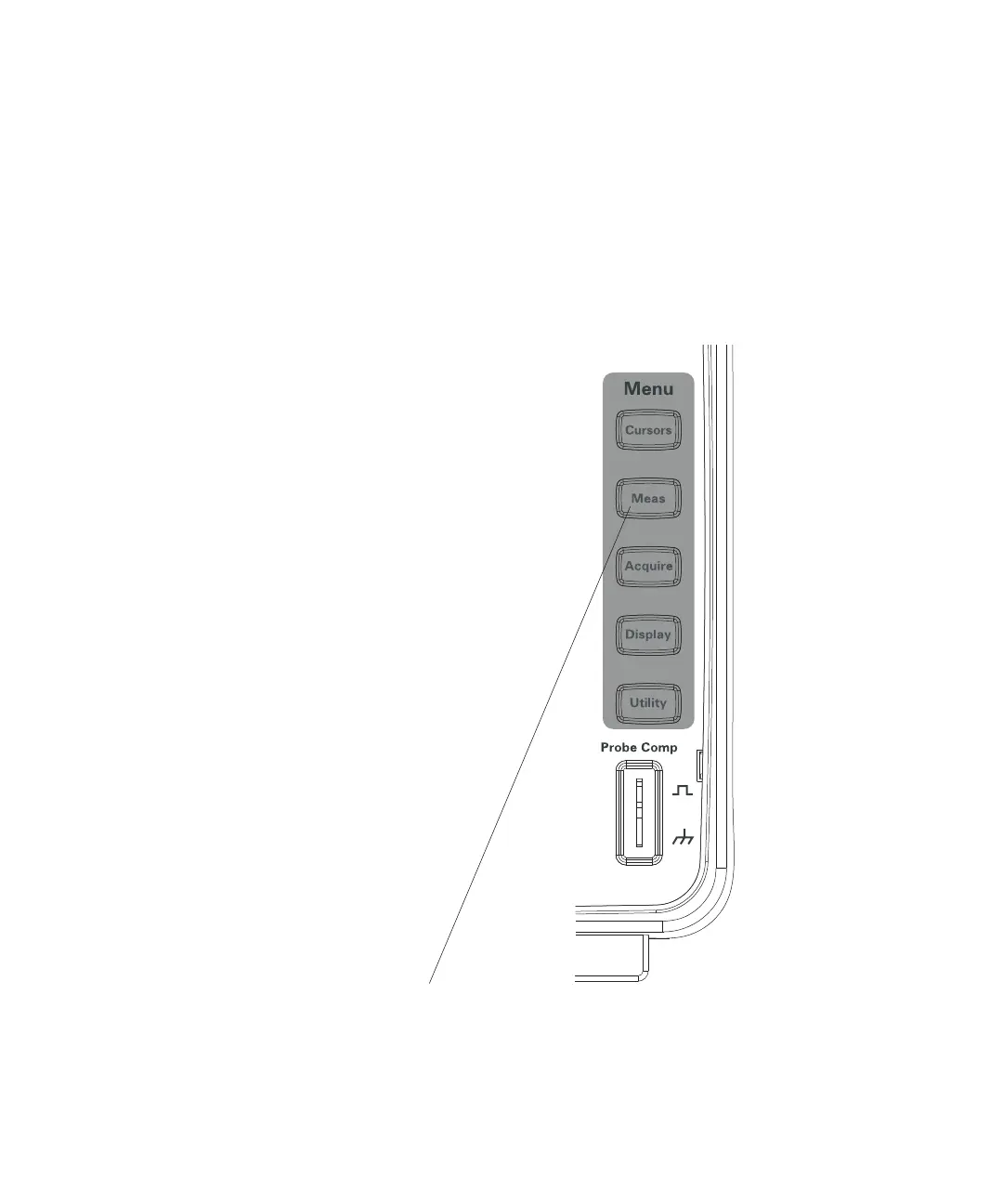

Figure 39 [Meas] Key
