2 Displaying Data
42 Agilent 1000B Series Oscilloscopes User’s Guide
To change the horizontal time base (Y-T, X-Y, or Roll)
1 Press [Horiz].
2 In the Horizontal menu, press Time Base.
3 Continue pressing the Time Base softkey or turn the entry knob to
select between:

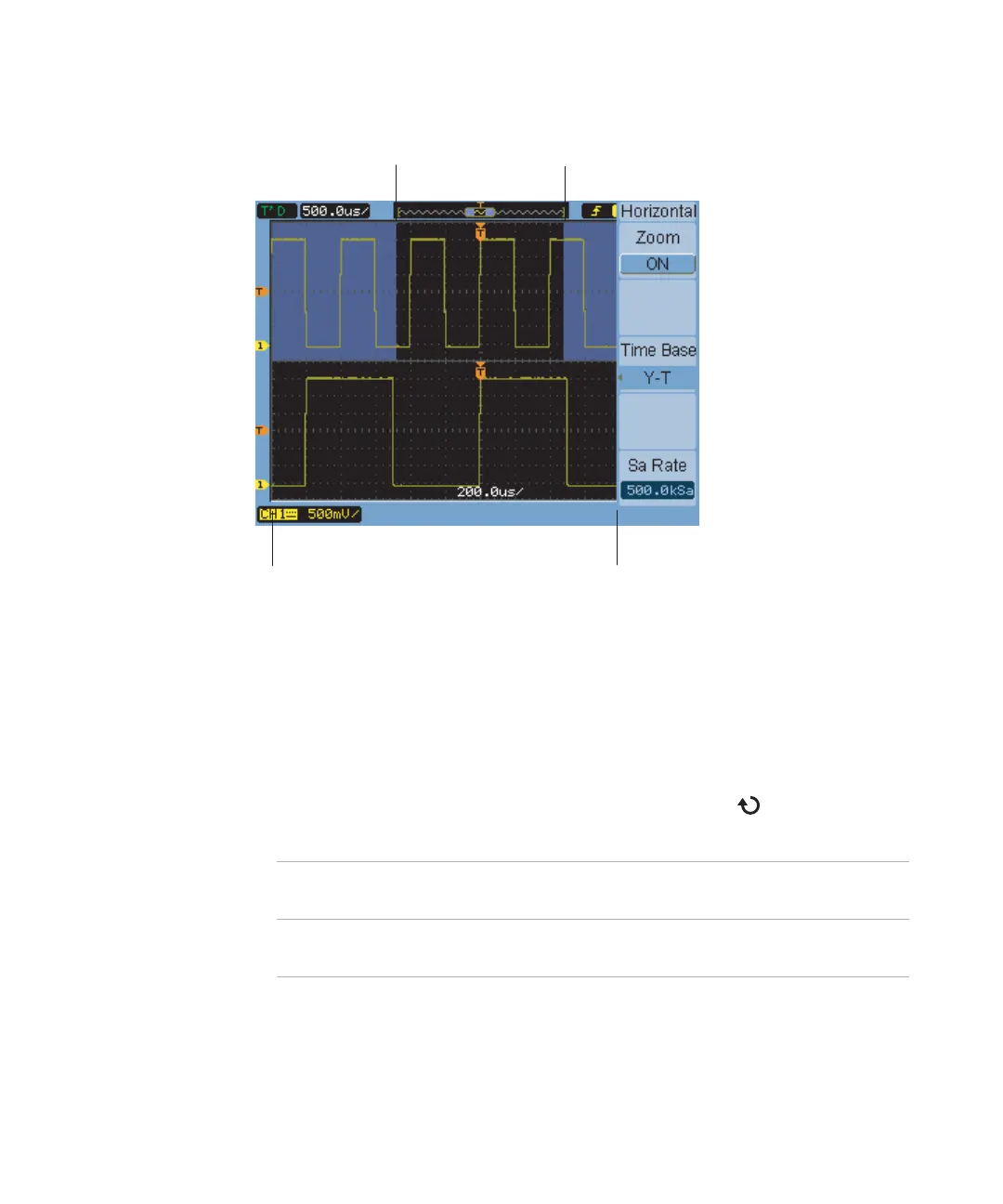

Figure 13 Zoomed Time Base Window
Zoomed window
Zoomed window view
Y-T Amplitude vs. time. This is the typical horizontal time
base setting.
X-Y Channel 2 (X-axis) vs. Channel 1 (Y- axis), see “X-Y
Format” on page 43.
