To run/stop a mask test
1 In the Mask Test menu ([Utility] > Mask Test), press Operate to run or stop
the test.
To turn on/off the mask test message display
1 In the Mask Test menu ([Utility] > Mask Test), press Msg Display to toggle
between OFF and ON.
The message display shows the failed, passed, and total number of
waveforms.
Appears on the menu when the test is stopped; press
Operate to run the test.
Appears on the menu when the test is running; press
Operate to stop the test

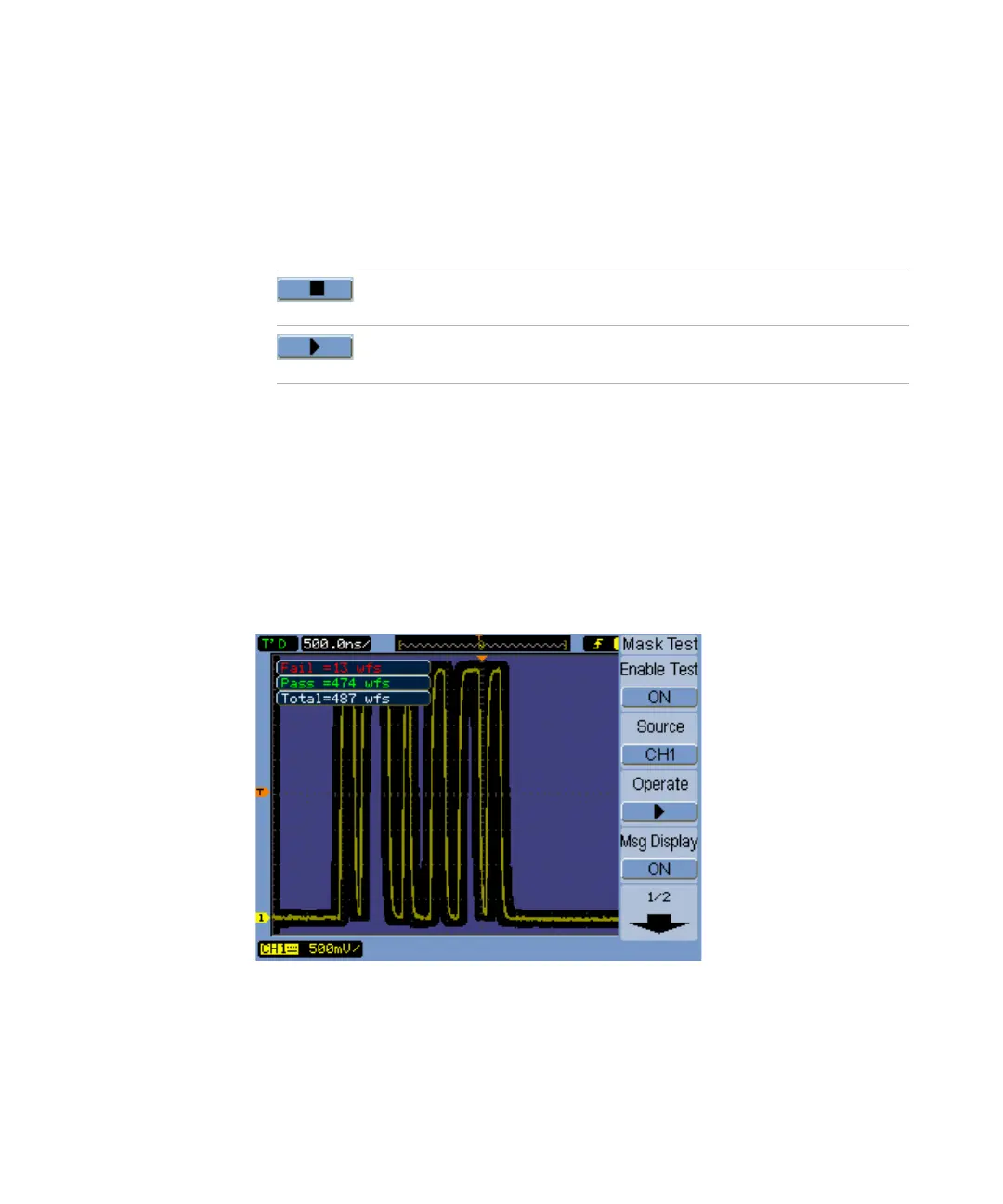

Figure 54 Mask Test Display
