2 Displaying Data
50 Agilent 1000B Series Oscilloscopes User’s Guide
To specify the probe attenuation
For correct measurements, you must match the oscilloscope’s probe
attenuation factor settings with the attenuation factors of the probes being
used.
The probe attenuation factor setting changes the vertical scaling of the
oscilloscope so that the measurement results reflect the actual voltage
levels at the probe tip.
1 If the channel’s menu is not currently displayed, press the channel key
([1], [2], [3], or [4]).
2 In the Channel menu, press Probe.
3 Continue pressing the Probe softkey or turn the entry knob to select
the appropriate attenuation factor.

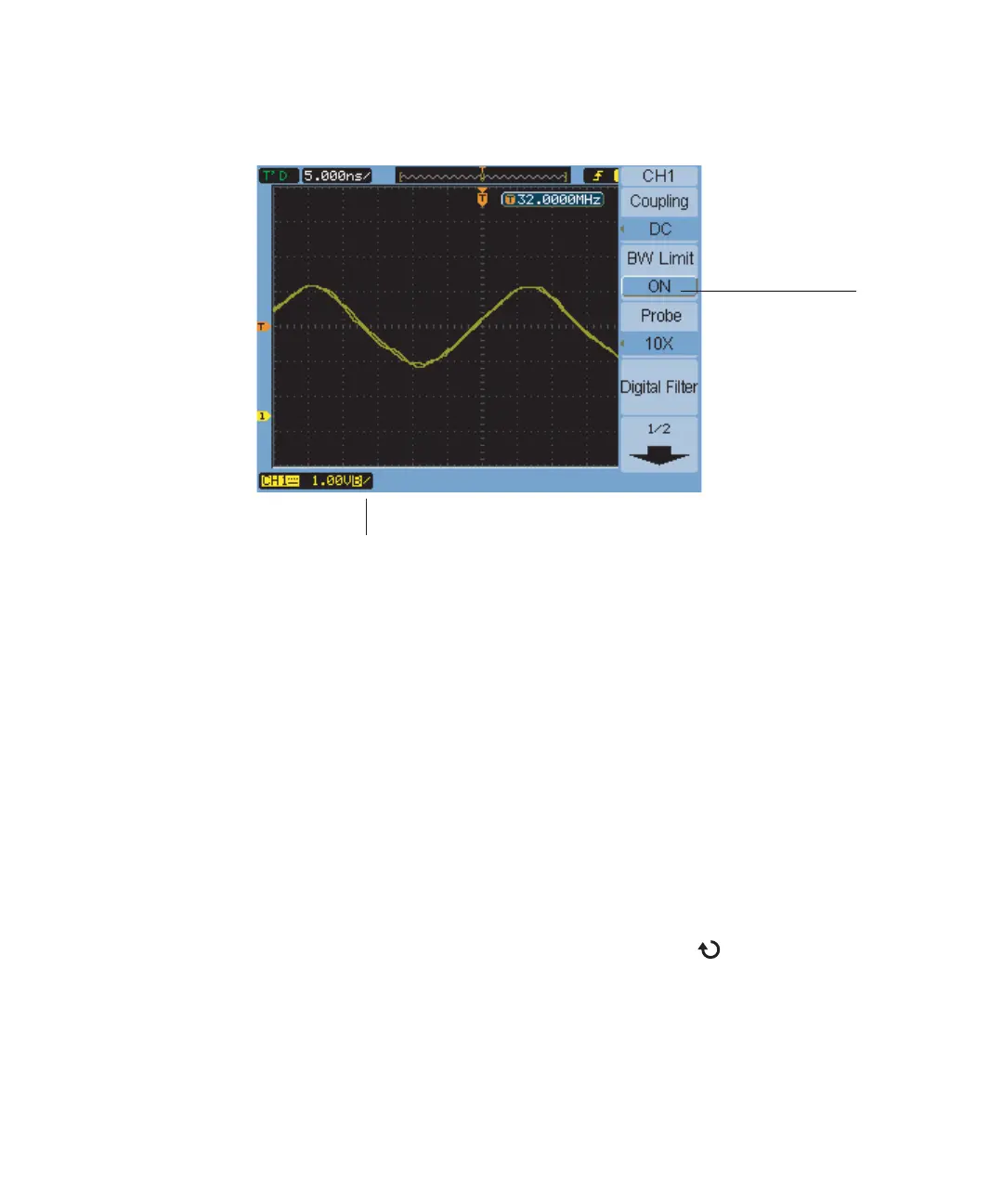

Figure 19 BW Limit Control ON
20 MHz Bandwidth
Bandwidth ON Status
