Time Measurements
There are 12 automatic time measurements plus the hardware frequency
counter:
• Period.
• Frequency.
• Rise Time.
• Fall Time.
• + Pulse Width.
• - Pulse Width.
• + Duty Cycle.
• - Duty Cycle.
• Delay A-B, rising edges.
• Delay A-B, falling edges.
• Phase A- B, rising edges.
• Phase A- B, falling edges.
Period
Measures the period of a waveform.

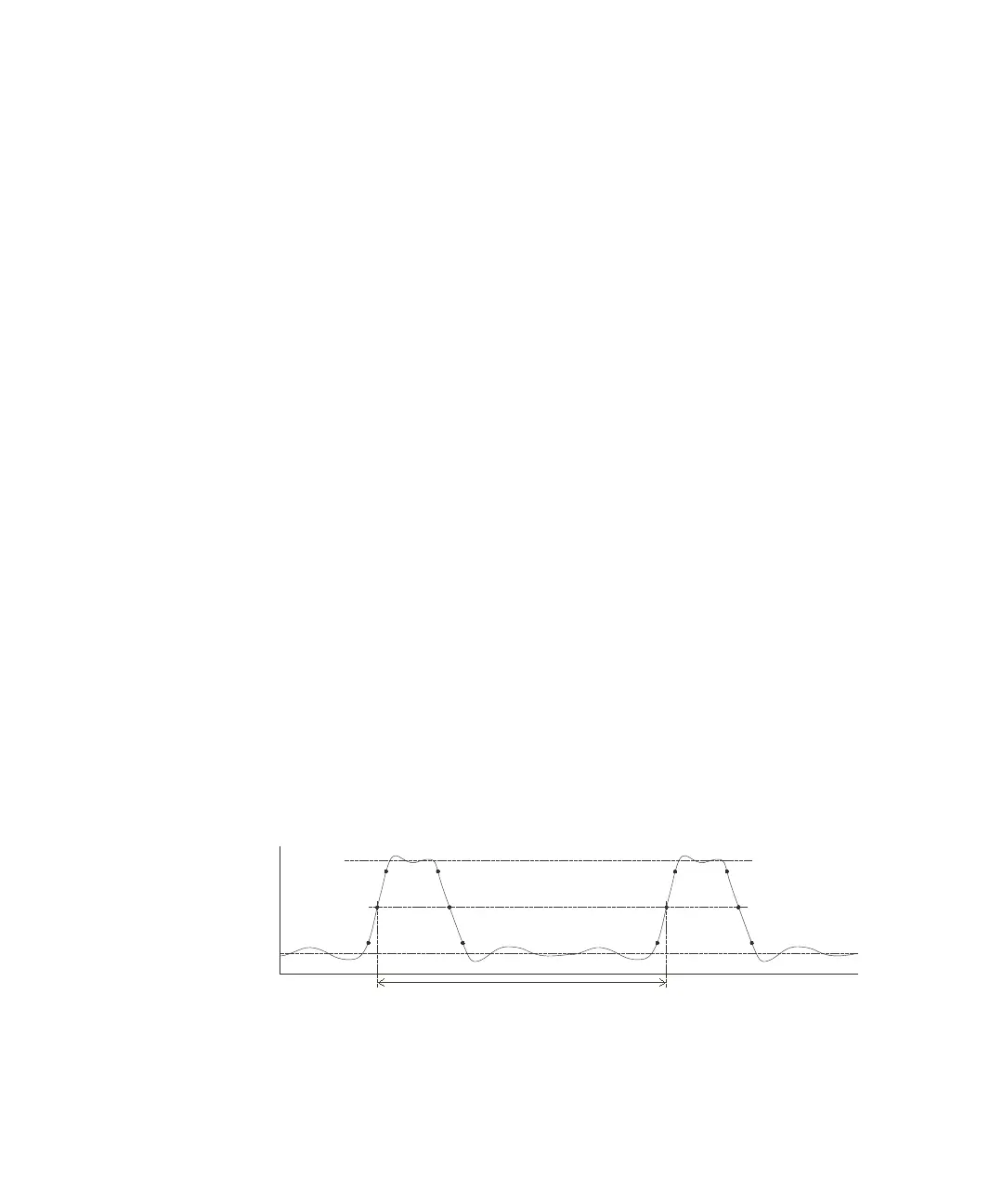

Figure 41 Period and Frequency Measurements
Period
Time
origin
line
50%
Top
Base
