Using the Vertical Controls
The vertical controls consist of:
• The channel ([1], [2], [3], and [4]), [Math], and [Ref] front panel keys —
turn waveforms on or off (and display or hide their menus).
• The vertical scale knobs — change the amplitude per division setting for
a waveform, using either ground or the center of the screen as a
reference (depending on a preference setting).
• The vertical position knobs — change the vertical position of the
waveform on the screen.

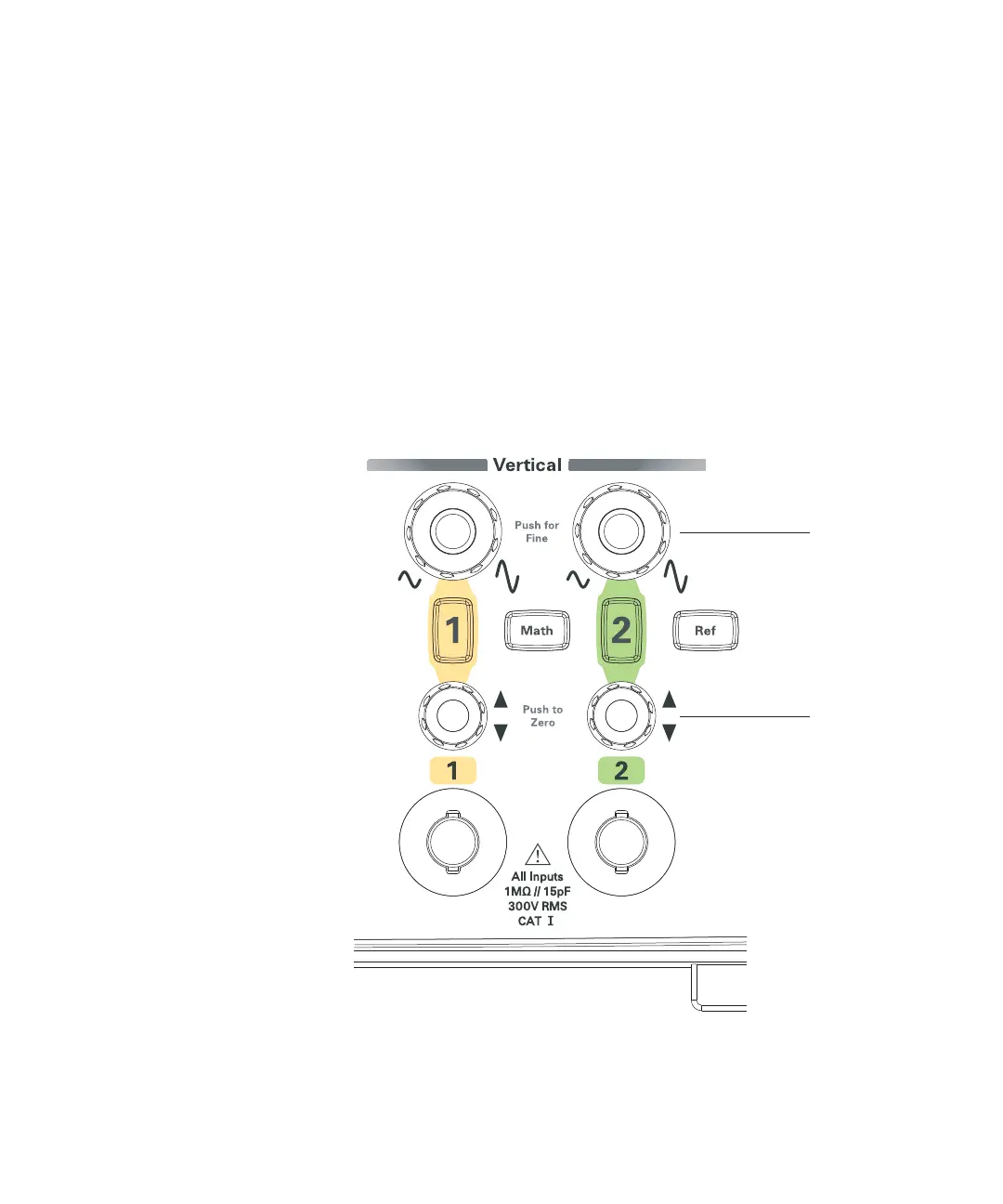

Figure 15 Vertical Controls
Scale knobs
Position knobs
