Agilent 1200 Series Autosampler Reference Manual 145
Repairing the Autosampler 4

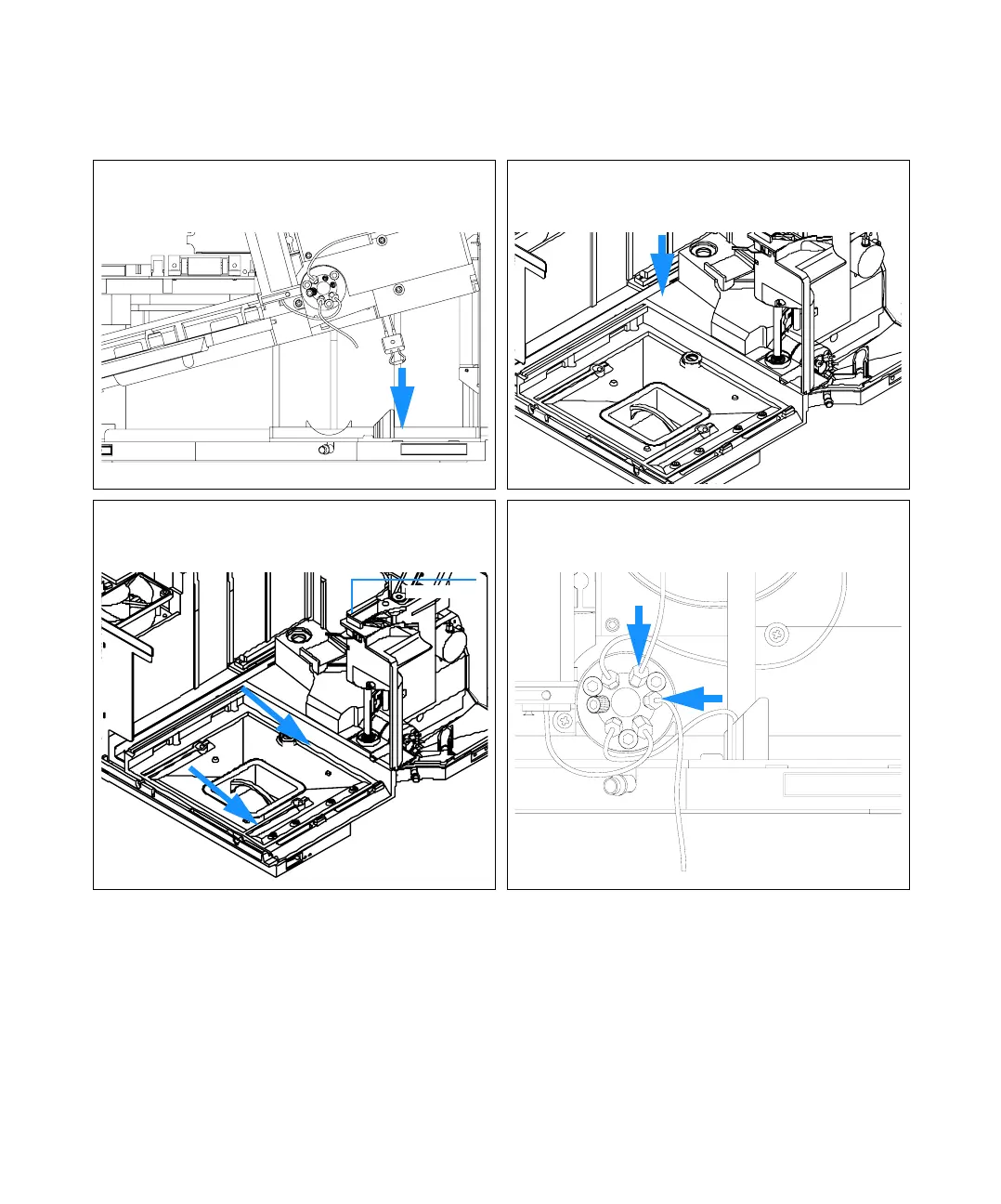

3 While holding the sampling unit and tray base, slide the
leak sensor into the holder in the leak plane.
4 Place the sampling unit and tray base into the
autosampler.
5 Slide the sampling unit and tray base forwards. Ensure the
sampling unit connector is seated correctly.
6 Install the pump and column thermostat capillaries (ports
1 and 6) in the injection valve.
Connector
