4 Repairing the Autosampler
3 Install the new board. Ensure the board is positioned
between the board guide.
4 Secure the board in place with the two screws.
5 Reconnect all the connectors to the new board.
On completion of this procedure:
• Install the sampling unit (page 141).
• Install the transport assembly (page 139).
• Install the top cover (page 134).Verify the transport
assembly alignment (page 102).

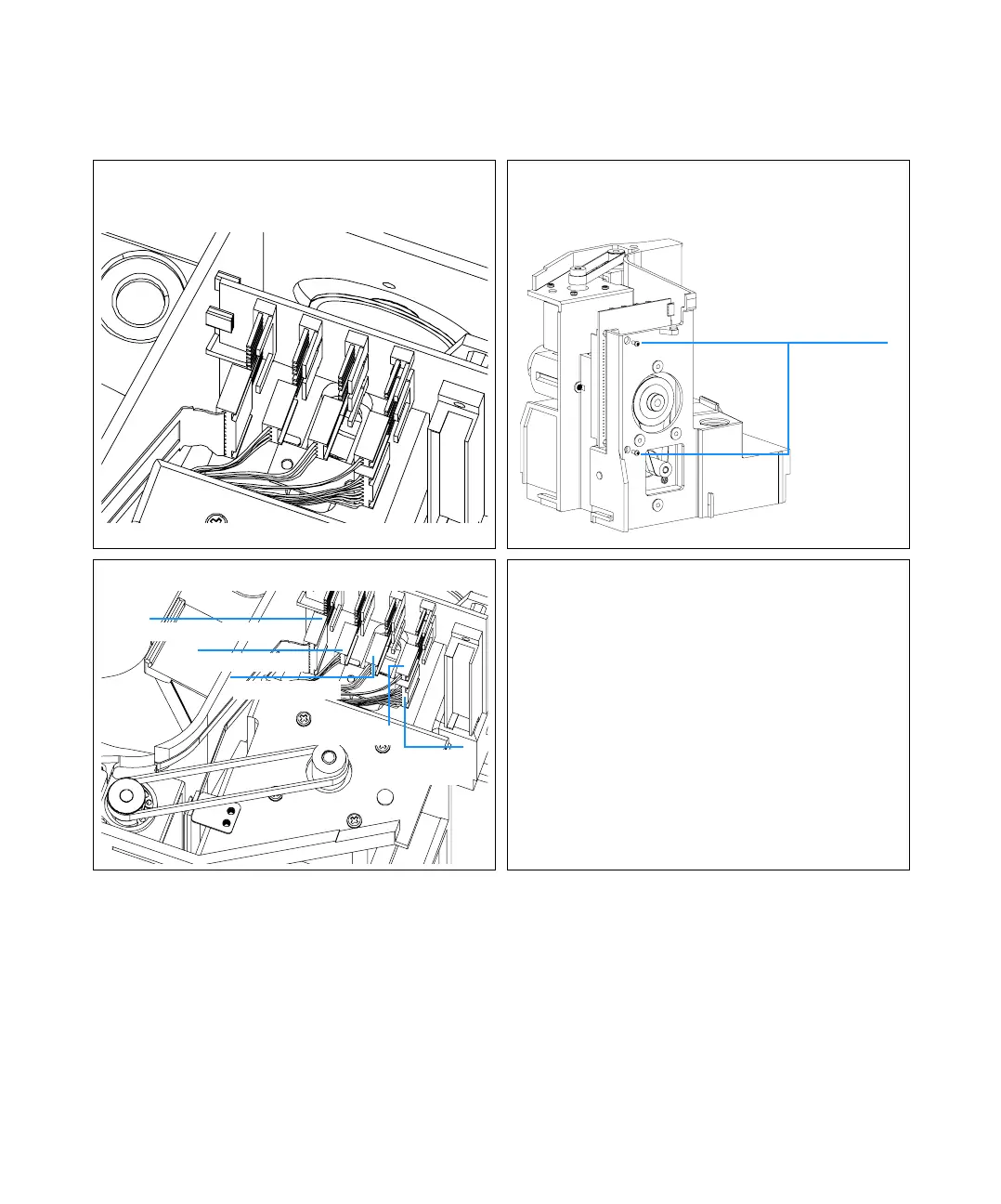

Fixing screws
Leak sensor
Metering drive
Injection
Valve
Needle drive
Flex board
