153

Signal Handling

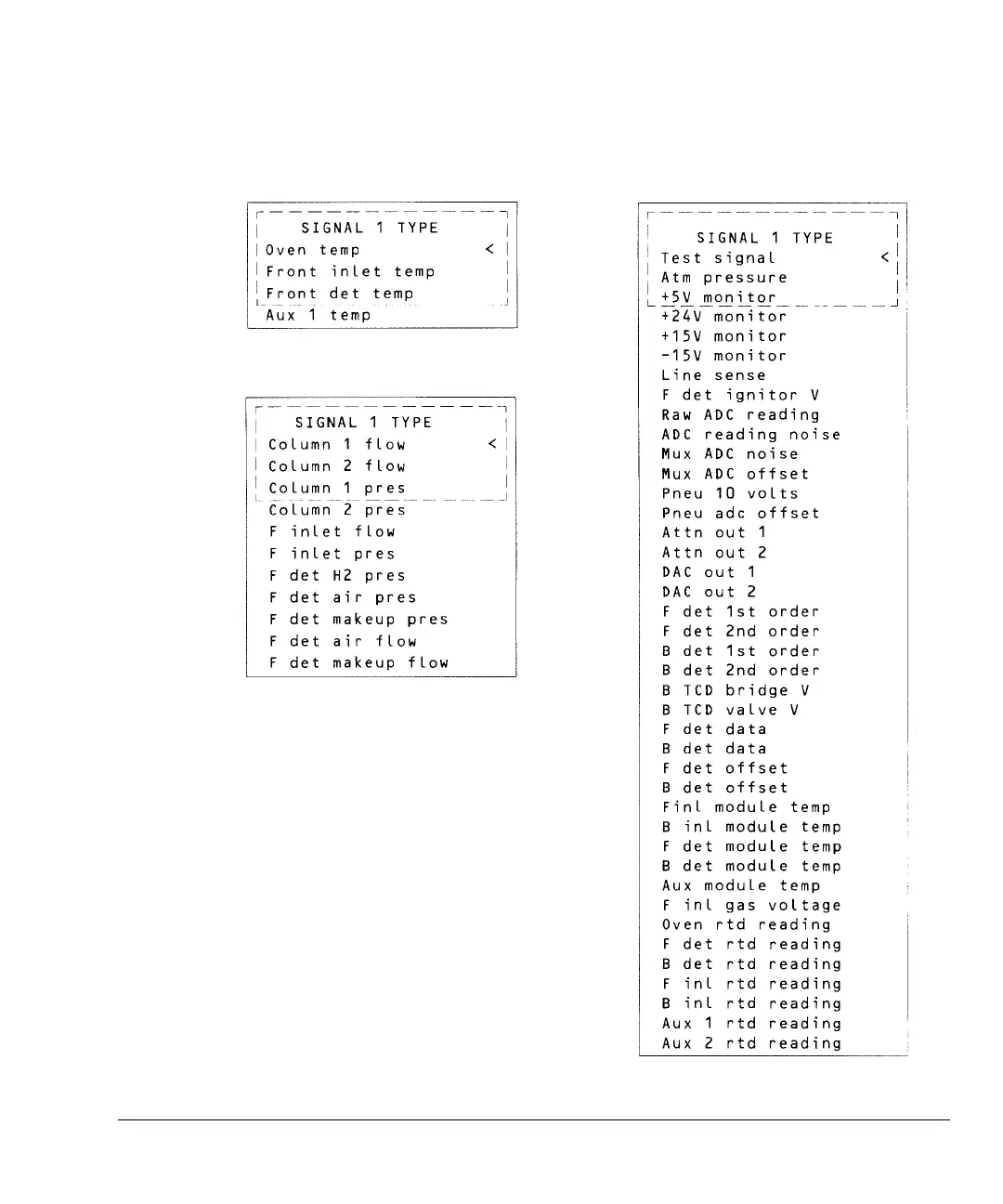

Using the signal control tables

Thermal signals:

Pneumatic signals:

Diagnostic signals:

Only installed items are listed in submenus.

Column flows and pressures are only listed when

you have electronic pneumatics control (EPC).
