195

Valve Control

Valve configurations

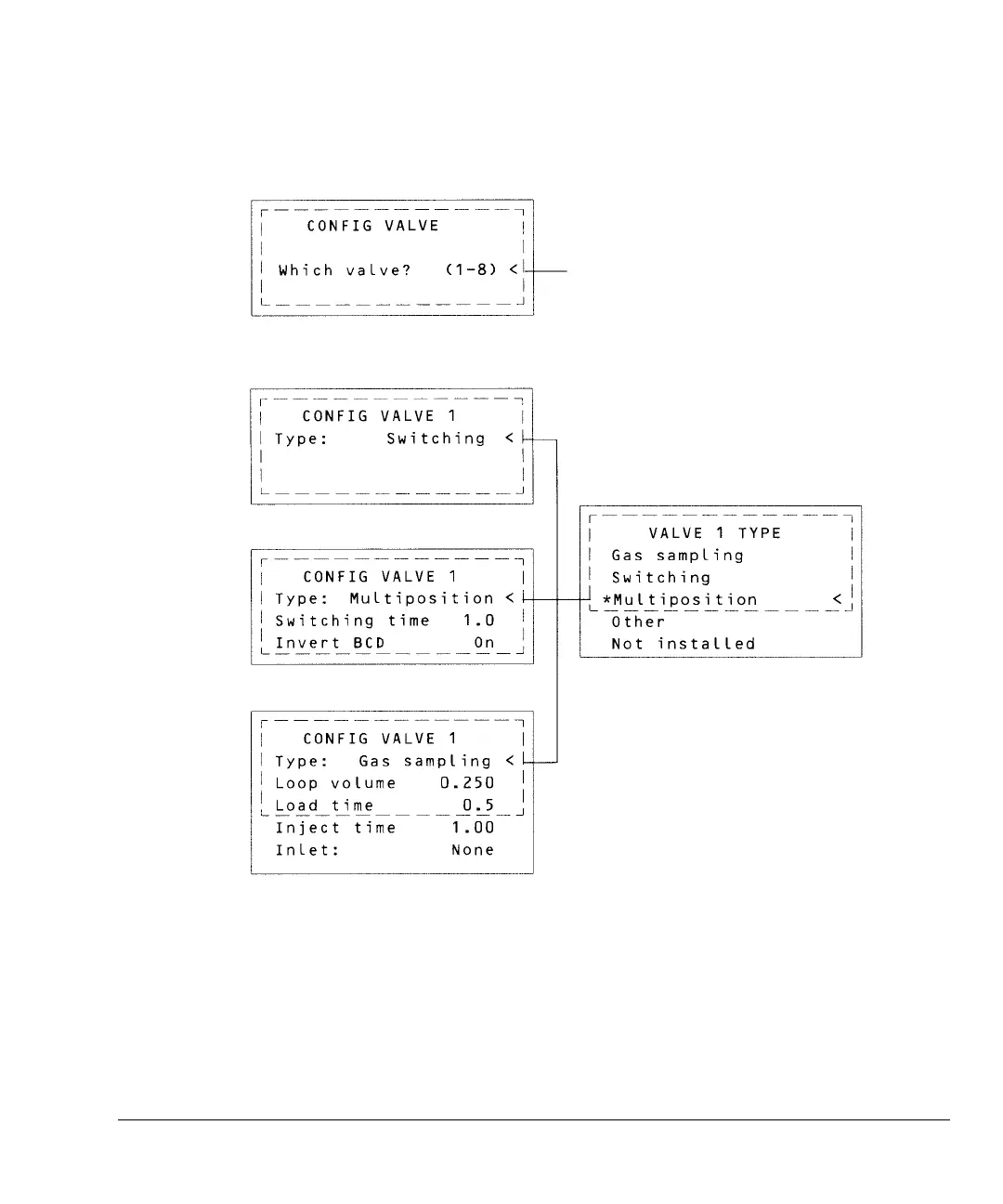

Procedure: Configuring a valve

2. Specify the valve driver to be configured.

Type the number (1 in this example) and

press [Enter].

3. The present type for this driver is shown.

4. Press [Mode/Type] for the valve choices.

5. Select a valve type and press [Enter].

1. Press [Config] [Valve #].
