The Keyboard and Display
[Status]
The setpoint status table
This table lists setpoints compiled from the active control tables on the
instrument. This is a quick way to view active setpoints during a run without
having to open multiple control tables.
Procedure: Configuring the setpoint status table
You can change the order of the list. You might want the three most important
setpoints to appear in the window when you open the table.
1. Press [Config] [Status].
2. Scroll to the setpoint that should appear first and press [Enter]. This setpoint
will now appear at the top of the list.
3. Scroll to the setpoint that should appear second and press [Enter]. This
setpoint will now be the second item on the list.
4. And so on, until the list is in the order you wish.

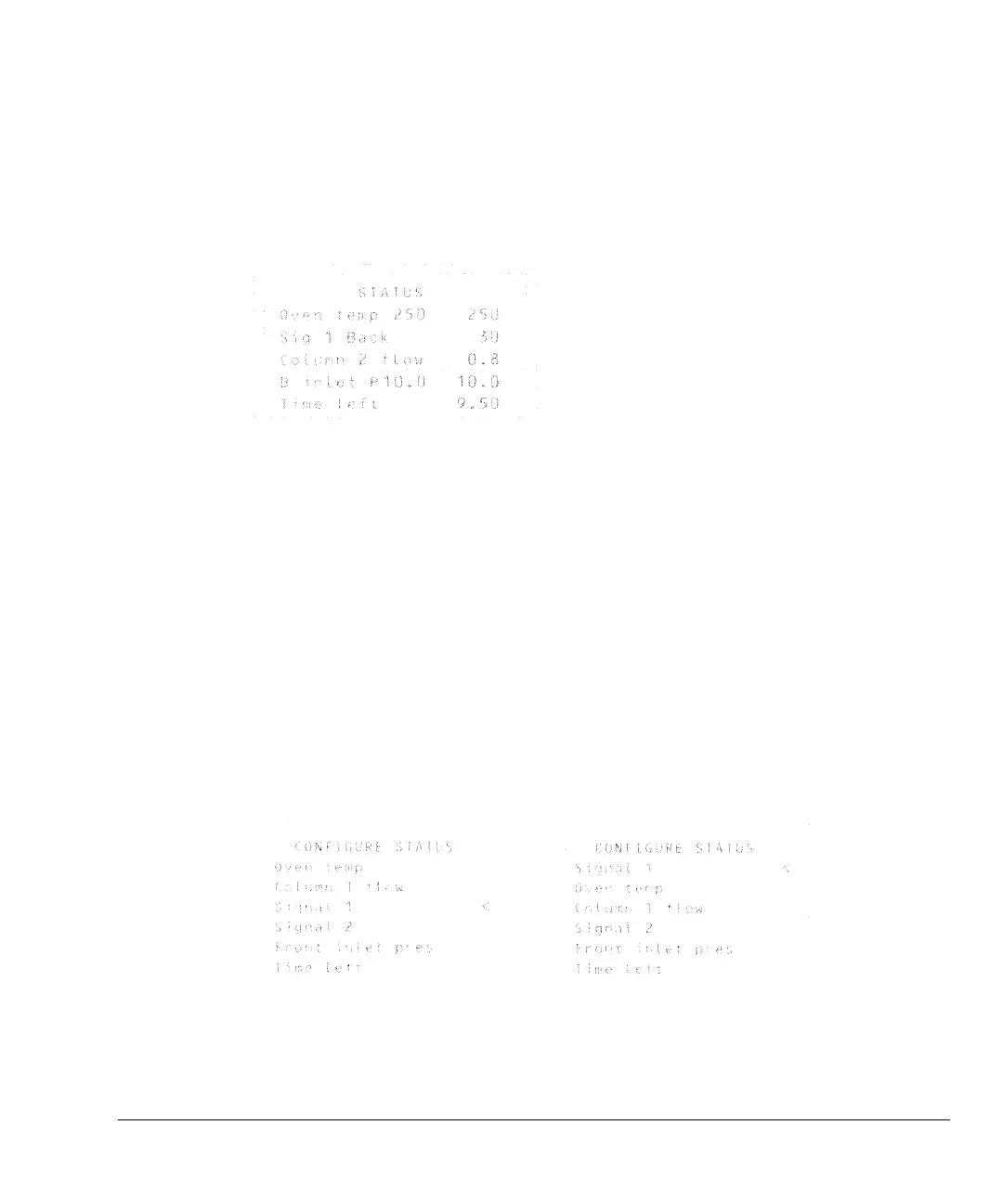

Press [Config][Status]
a. Scroll to Signal 1 and press [Enter]. b. Signal 1 is now the first item on the list.
