Analytical Methods

Creating a method

184

Procedure: Loading the default method

The GC default parameters can be reloaded at any time.

1. Press [Method].

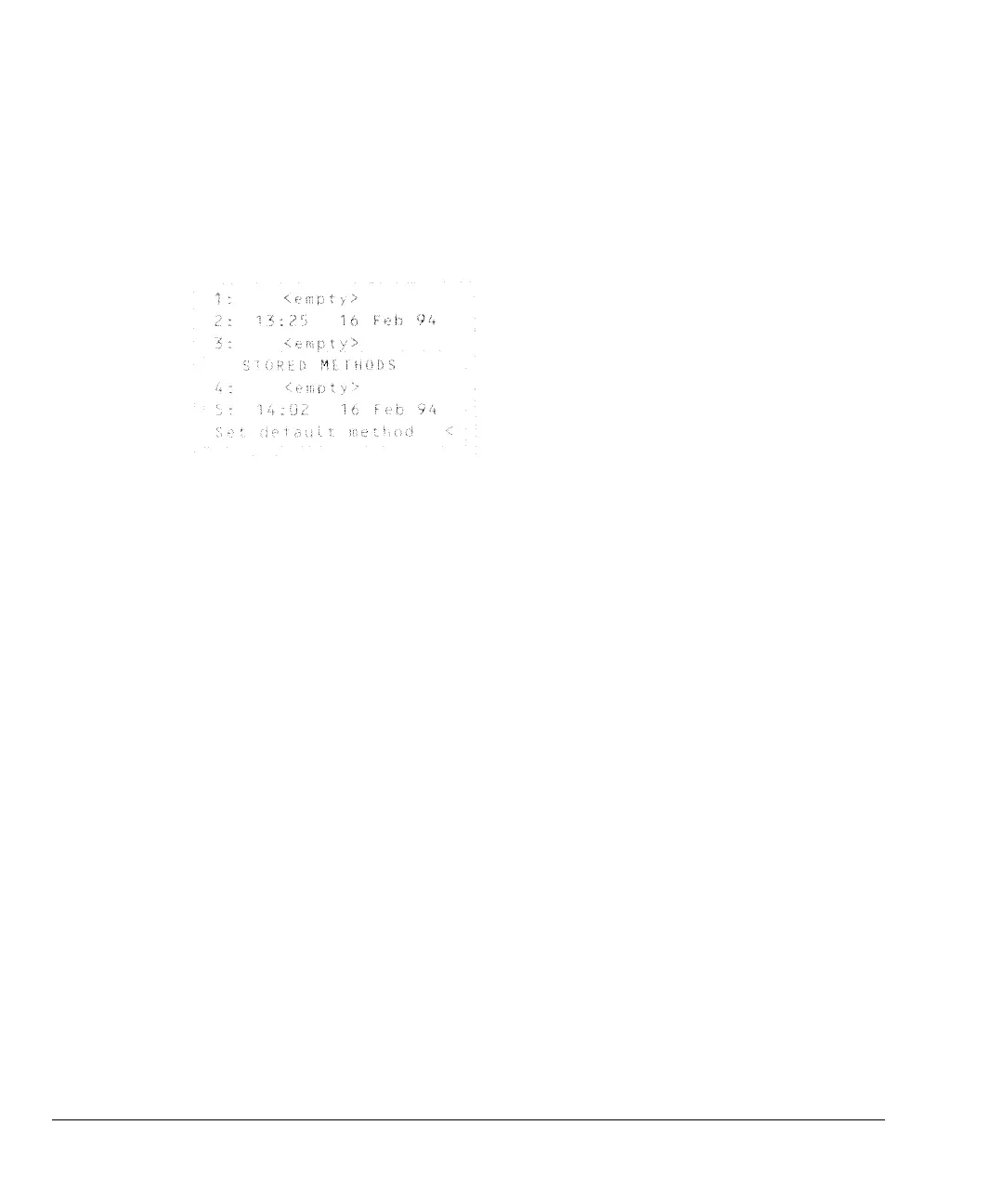

2. Scroll to Set default method.

3. Press [Enter].

See chapter 2, Keyboard and Display, for more information.
