The Keyboard and Display
The status board
20
The status board

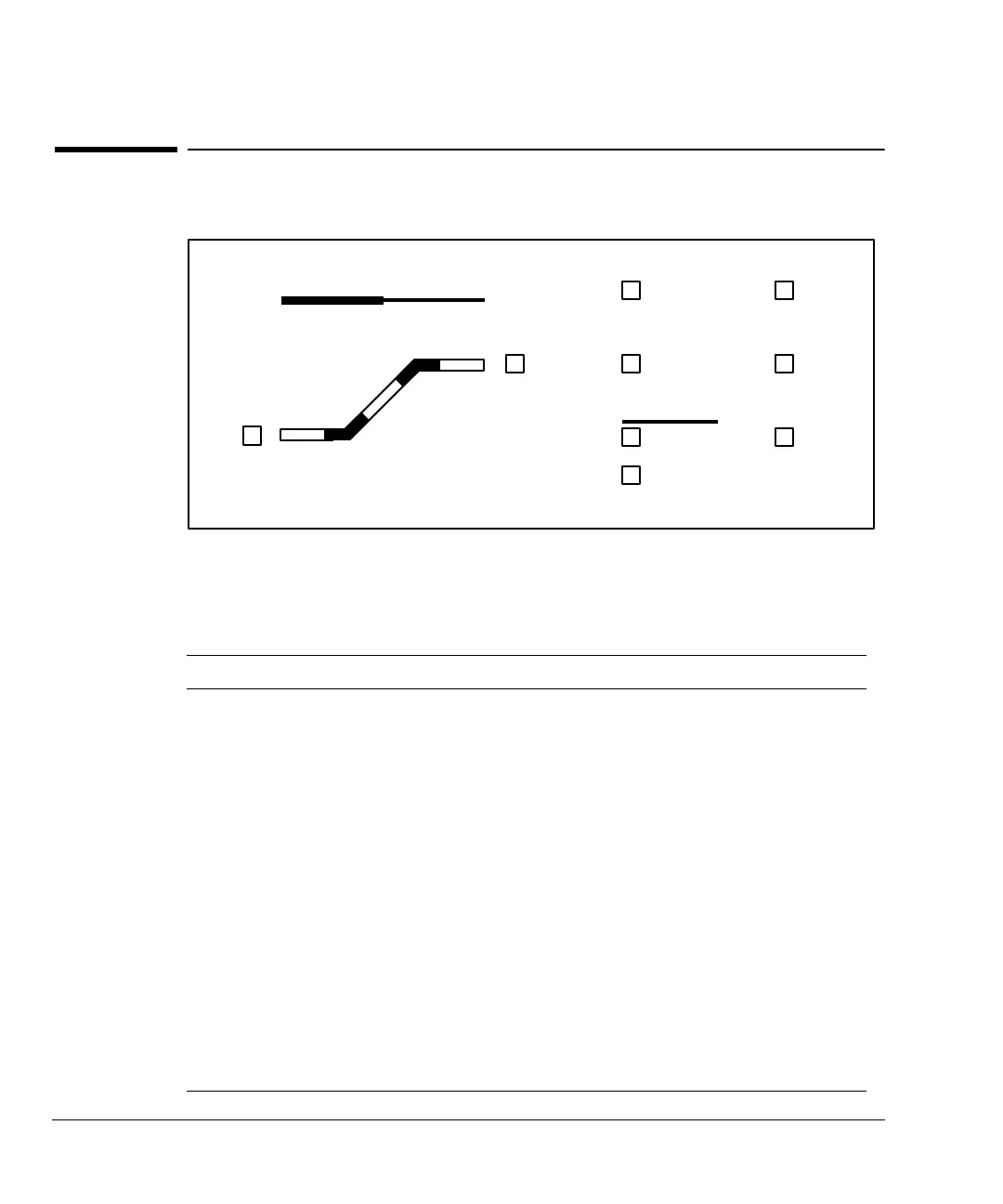

Figure 3 The status board
Table 4 The Display LEDs
LED Description
Pre Run Lit when the GC is in the Pre Run state (after [Prep Run] is pressed). See the Inlets volume
for more information.
Oven Ramp LEDs Show the progress of the oven temperature program. The Rate LED blinks if the
oven is unable to follow the program.
Post Run Lit when the instrument is executing a post run.
Not Ready Lit when the GC is not yet ready to make a run. Blinks when the instrument has
one or more fault conditions. Press the [Status] key to see which parameters are
not ready or what faults have occurred.
Run Lit when the instrument is executing a chromatographic run.
Remote Indicates that communication with a remote device has been established.
Clock Table Indicates that the clock table has entries.
Gas Saver Indicates that the front or back gas saver is on.
Run Log Indicates that the run log has entries. This information can be used for Good
Laboratory Practice (GLP) standards.
Oven Ramp
Pre
Run
Initial
Temp
Final
Temp
Post
Run
Not
Ready
Run
Remote
Clock
Table
Gas Saver
Front
Back
Run
Log
Rate
