Part 1. Electronic Pneumatic Control (EPC) Flow and Pressure Control

Enter the rest of the inlet parameters

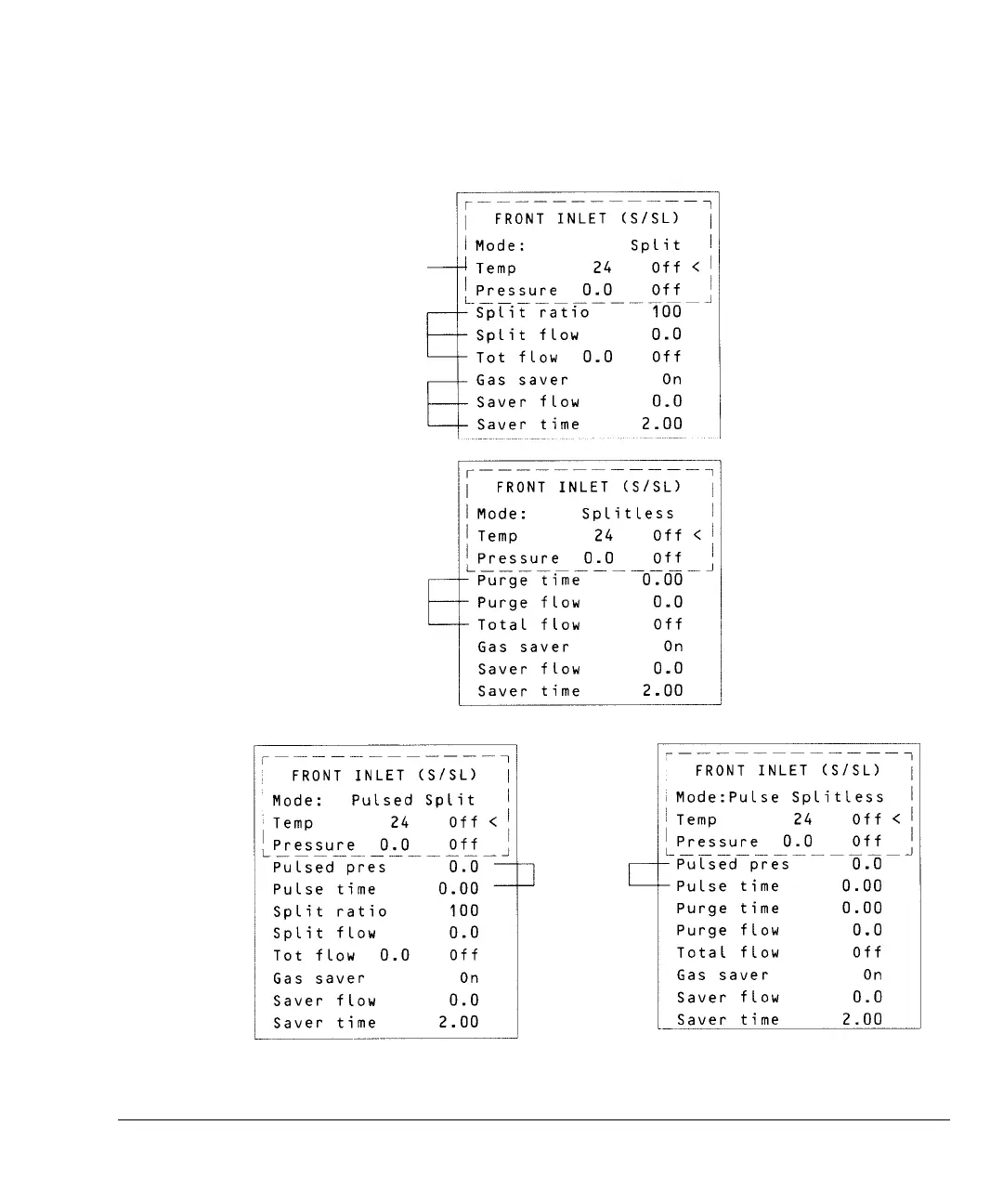

Figure 6 Control tables for the Split/Splitless inlet

Split mode

Inlet temperature

Split parameters

Gas saver parameters

Splitless mode

Splitless parameters

The pulsed modes

Pulse

parameters
