Agilent Technologies 8860 Maintaining

9 Maintaining the FID
To Perform Maintenance on the FID Collector Assembly
152 Maintaining Your GC
7 Remove the gasket from the bottom of the assembly, if necessary.

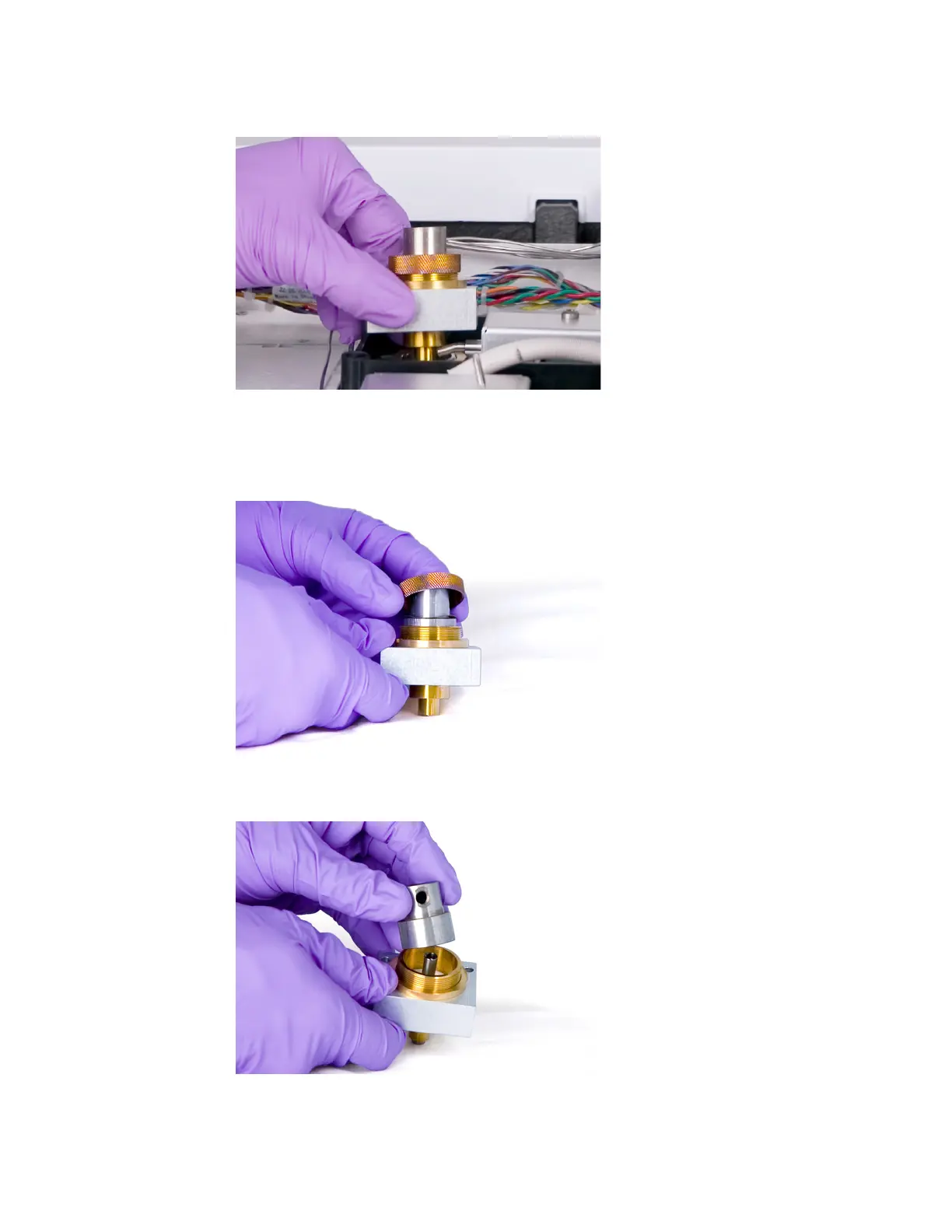

8 Remove the FID ignitor castle.
a Loosen the collector nut.
b Remove the collector nut and the spring washer.
c Lift the castle out of the collector housing. When removing the castle, some of the
collector parts may be attached. Set these on a clean cloth to protect from scratches
or dirt.
9 If only replacing the FID castle, skip to step 15 for reassembly.
