12 Maintaining the NPD
To Replace the NPD Bead Assembly
Maintaining Your GC 193

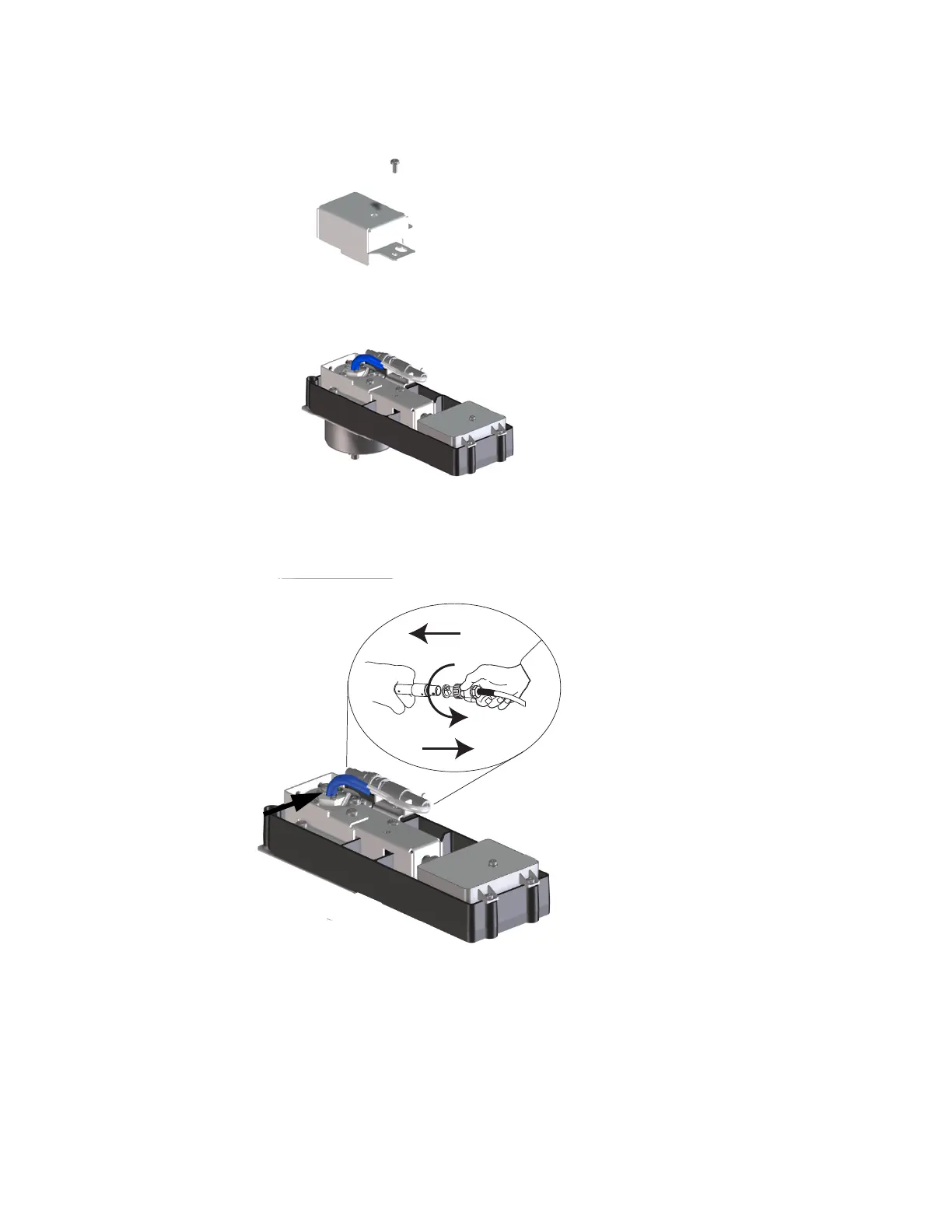

Figure 17. Remove NPD cover
8 Twist the ring to disconnect the bead assembly cable. Push and twist the lock so that the
button slides up in the groove, then pull the cable ends apart.
1
2
3
