Agilent Technologies InfiniiVision 2000 X-Series User Manual

Triggers 9
Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 121

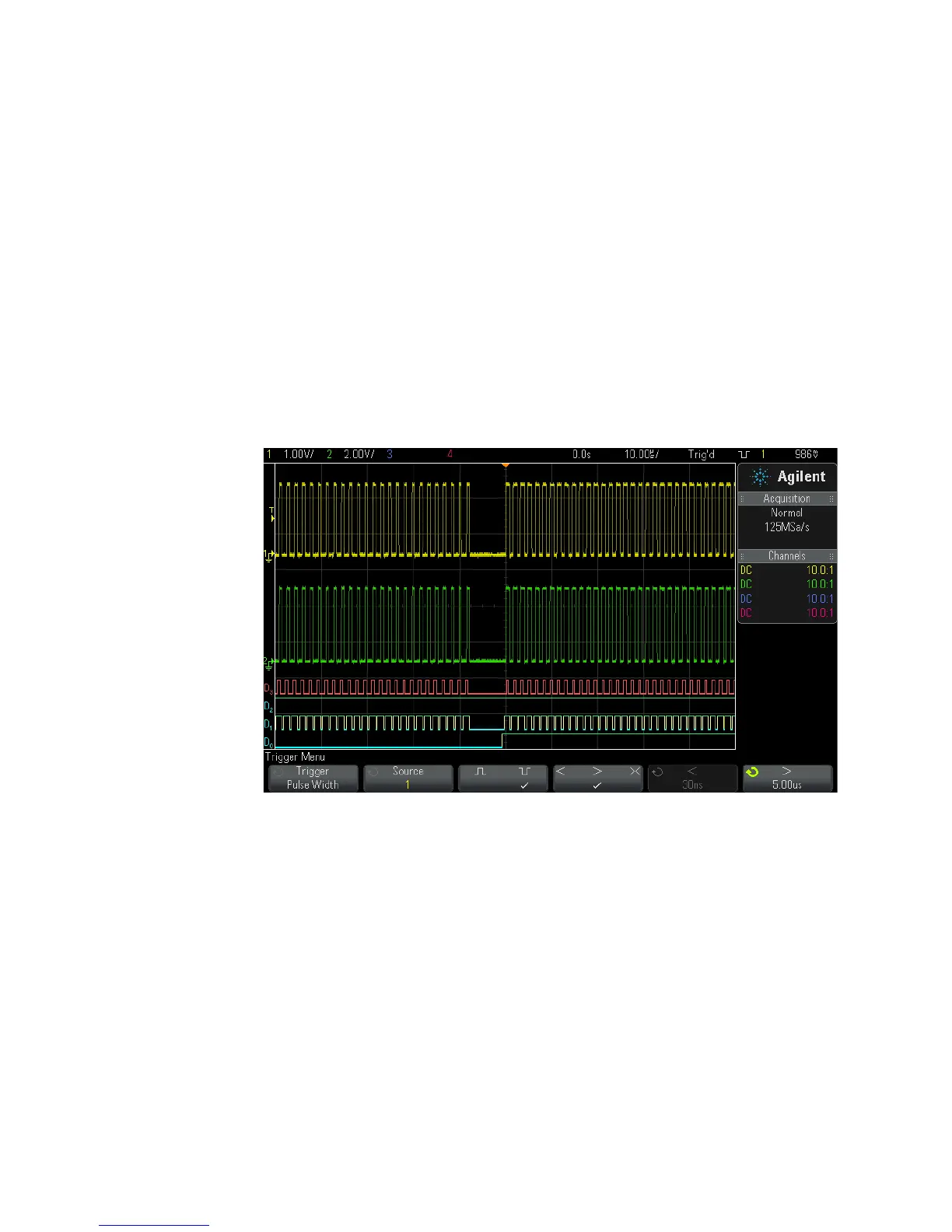

Pulse Width Trigger
Pulse Width (glitch) triggering sets the oscilloscope to trigger on a positive
or negative pulse of a specified width. If you want to trigger on a specific
timeout value, use Pattern trigger in the Trigger Menu (see "Pattern
Trigger" on page 118).
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select Pulse Width.
3 Press the Source softkey; then, rotate the Entry knob to select a channel
source for the trigger.
The channel you select is shown in the upper- right corner of the
display next to the polarity symbol.
The source can be any analog or digital channel available on your
oscilloscope.
4 Adjust the trigger level:
• For analog channels, turn the Trigger Level knob.
