Agilent Technologies InfiniiVision 2000 X-Series User Manual

158 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide
11 Acquisition Control

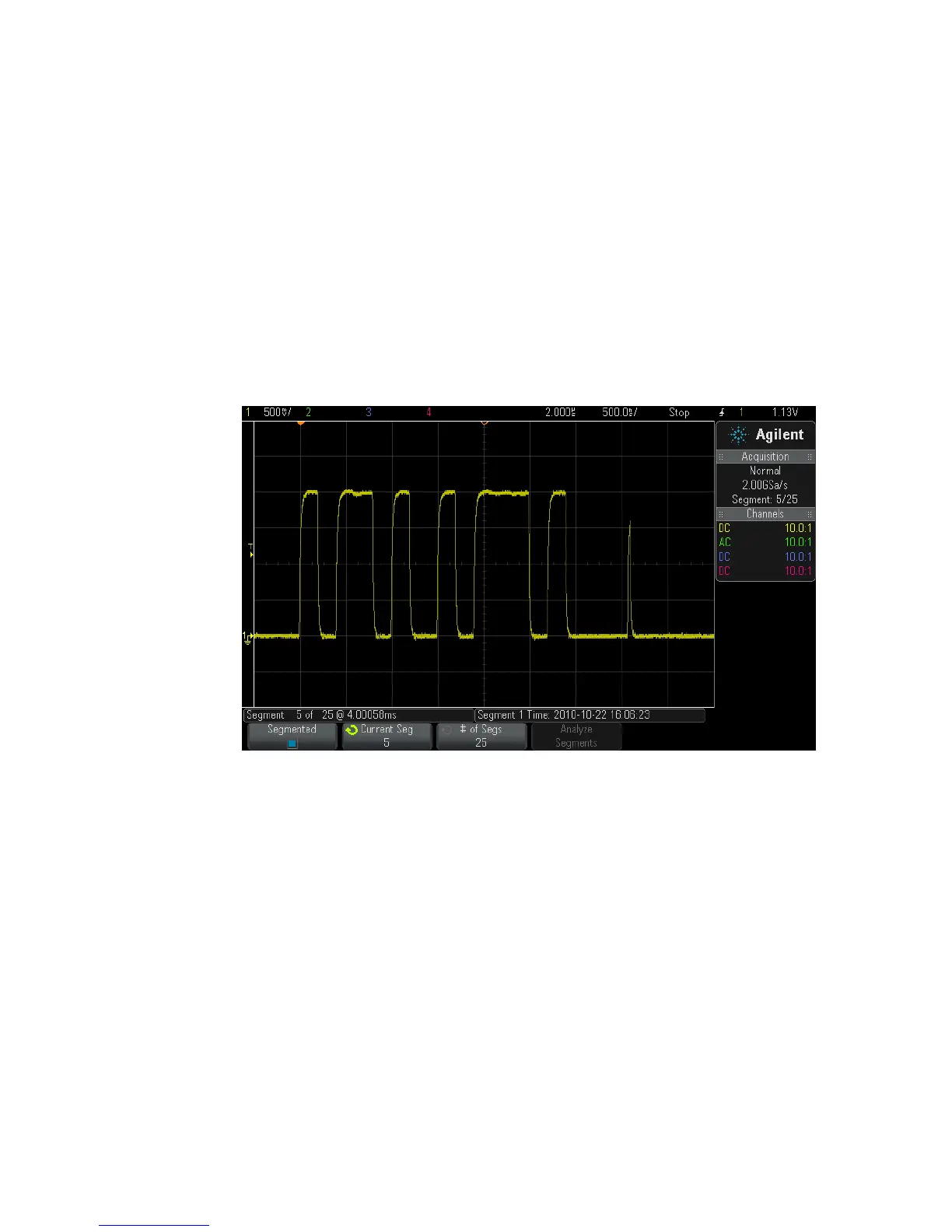

Segmented Memory Re-Arm Time
After each segment fills, the oscilloscope re- arms and is ready to trigger
in about 8 µs.
Remember though, for example: if the horizontal time per division control
is set to 5 µs/div, and the Time Reference is set to Center, it will take at
least 50 µs to fill all ten divisions and re-arm. (That is 25 µs to capture
pre- trigger data and 25 µs to capture post- trigger data.)
Saving Data from Segmented Memory
You can save either the currently displayed segment (Save Segment -
Current), or all segments (Save Segment - All) in the following data formats:
CSV, ASCII XY, and BIN.
Be sure to set the Length control to capture enough points to accurately
represent the captured data. When the oscilloscope is busy saving multiple
segments, progress is displayed in the upper right area of the display.
For more information, see "To save CSV, ASCII XY, or BIN data files" on
page 220.
