Preshoot
Preshoot is distortion that precedes a major edge transition expressed as a
percentage of Amplitude. The X cursors show which edge is being
measured (edge closest to the trigger reference point).

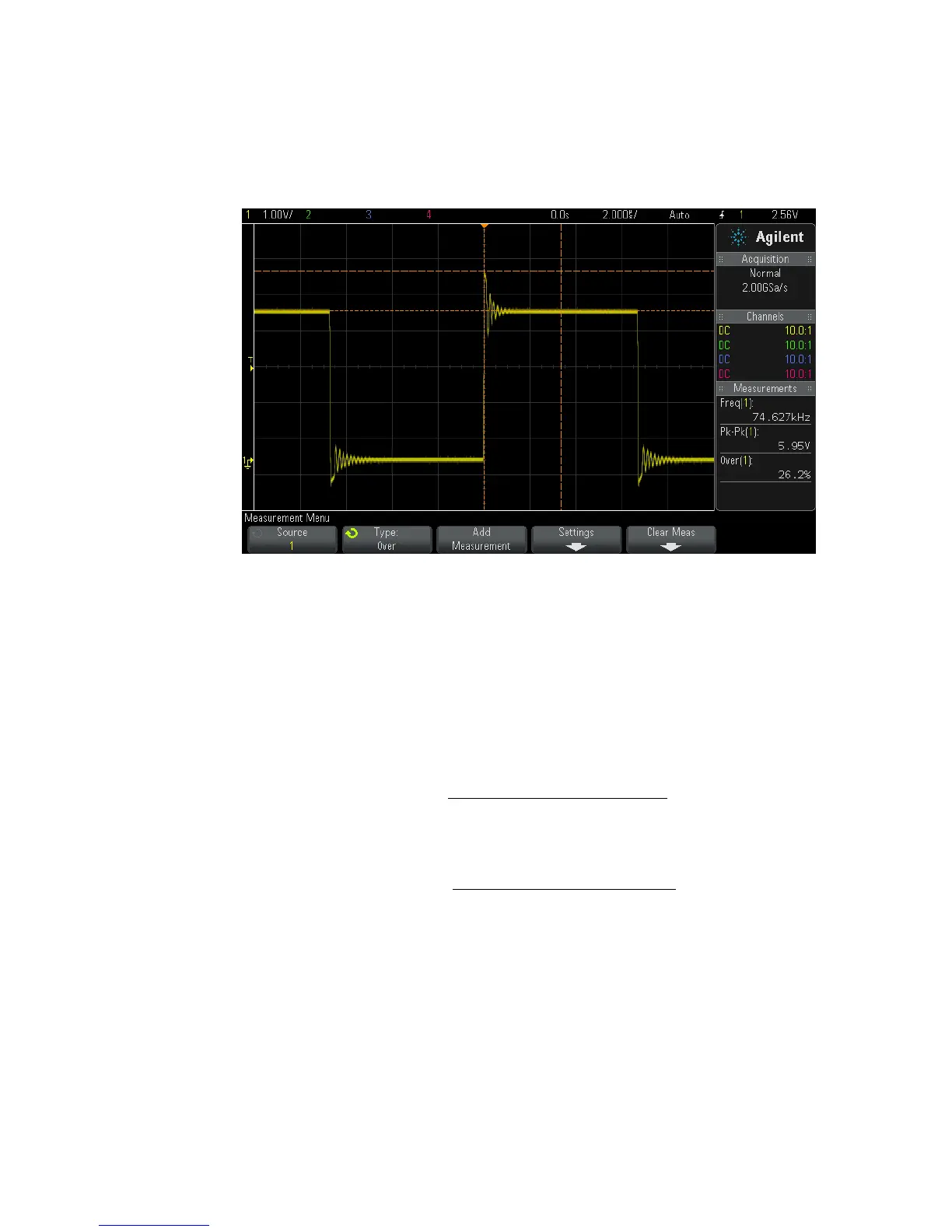

Figure 34 Automatic Overshoot measurement
Rising edge preshοot =
local Maximum − D Top
Amplitude
× 100
Falling edge preshοot =
Base − D local Minimum
Amplitude
× 100
