26 Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide
1 Getting Started
In the Save/Recall Menu, there are also options for restoring the complete
factory settings (see “Recalling Default Setups" on page 229) or performing
a secure erase (see “Performing a Secure Erase" on page 229).
Use Auto Scale
Use [Auto Scale] to automatically configure the oscilloscope to best display
the input signals.
1 Press [Auto Scale].

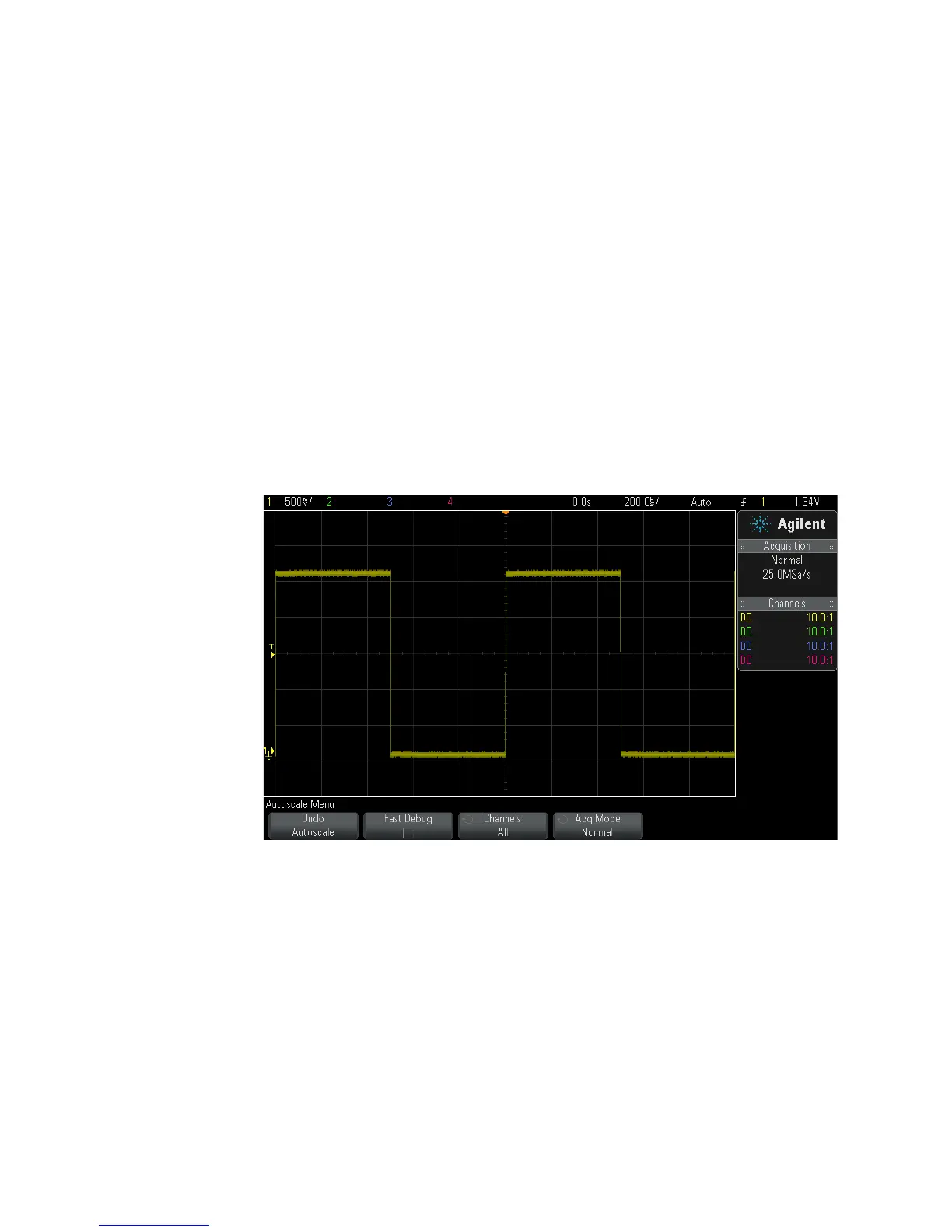

You should see a waveform on the oscilloscope's display similar to this:
2 If you want to return to the oscilloscope settings that existed before,
press Undo AutoScale.
3 If you want to enable "fast debug" autoscaling, change the channels
autoscaled, or preserve the acquisition mode during autoscale, press
Fast Debug, Channels, or Acq Mode.
These are the same softkeys that appear in the AutoScale Preferences
Menu. See “To set AutoScale preferences" on page 245.
