Cursors 12
Agilent InfiniiVision 2000 X-Series Oscilloscopes User's Guide 161
• Track Waveform — As you move a marker horizontally, the vertical
amplitude of the waveform is tracked and measured. The time and
voltage positions are shown for the markers. The vertical (Y) and
horizontal (X) differences between the markers are shown as ΔX and
ΔY values.

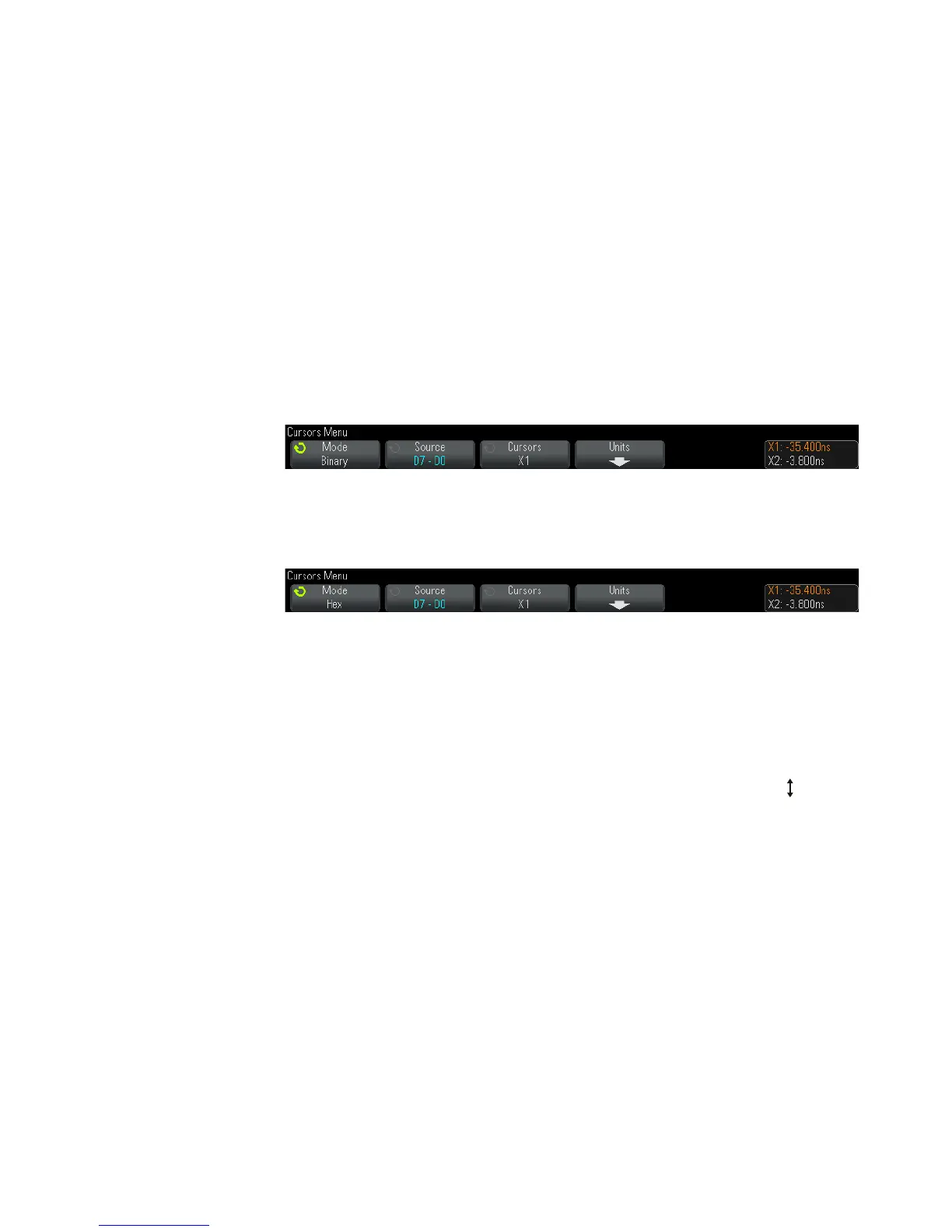

• Binary — Logic levels of displayed waveforms at the current X1 and
X2 cursor positions are displayed above the softkeys in binary. The
display is color coded to match the color of the related channel's
waveform.
• Hex — Logic levels of displayed waveforms at the current X1 and X2
cursor positions are displayed above the softkeys in hexadecimal.
Manual and Track Waveform modes can be used on waveforms that are
displayed on the analog input channels (including math functions).
Binary and Hex modes apply to digital signals (of MSO oscilloscope
models).
In Hex and Binary modes, a level can be displayed as 1 (higher than
trigger level), 0 (lower than trigger level), indeterminate state ( ), or X
(don't care).
In Binary mode, X is displayed if the channel is turned off.
In Hex mode, the channel is interpreted as 0 if turned off.
4 Press Source (or X1 Source, X2 Source in the Track Waveform mode); then,
select the input source for cursor values.
5 Select the cursor(s) to be adjusted:
• Push the Cursors knob; then, turn the Cursors knob. To finalize your
selection, either push the Cursors knob again or wait about five
seconds for the popup menu to disappear.
Or:
